Raytech Rapid Joint LS - IPX8 Gel-Filled Straight Joints for Multi-Core Control Cable

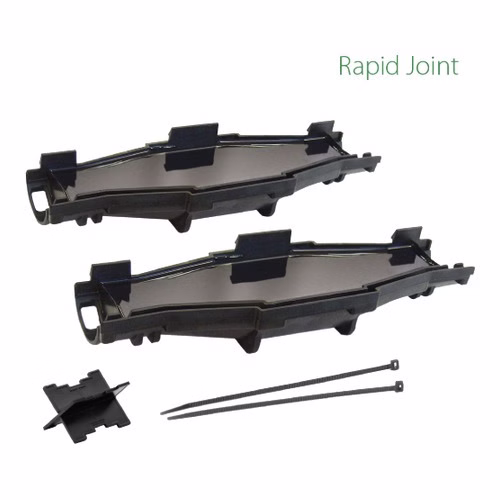

Raytech Rapid Joint LS is the Rapid Joint gel pre-filled straight joint made for multi-core signalling and control cables. The gel-filled half-shells close radially around the connected conductors and seal the joint to IPX8. Raytech is an Italian manufacturer that specialises in gel-based insulation for electrical connections: pre-filled gel boxes and joints that are ready to use straight from the pack, and insulating gels and rubbers for filling joints, boxes and enclosures.

Three sizes cover cables of 5 to 100 cores with 1.5 or 2.5 mm² conductors. Each size has its own page and price.

Choose your Rapid Joint LS size

Prices are per joint.

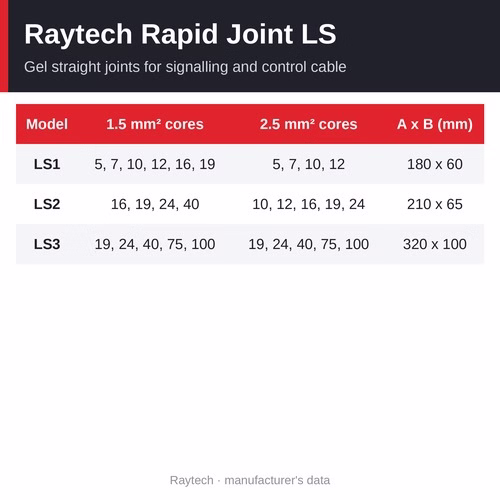

• Rapid Joint LS1 - 1.5 mm² with 5, 7, 10, 12, 16 or 19 cores; 2.5 mm² with 5, 7, 10 or 12 cores; 180 x 60 mm - Rs 5,457 per joint
• Rapid Joint LS2 - 1.5 mm² with 16, 19, 24 or 40 cores; 2.5 mm² with 10, 12, 16, 19 or 24 cores; 210 x 65 mm - Rs 7,725 per joint
• Rapid Joint LS3 - 1.5 mm² with 19, 24, 40, 75 or 100 cores; 2.5 mm² with 19, 24, 40, 75 or 100 cores; 320 x 100 mm - Rs 18,639 per joint

How to choose the size

Choose by the core count and the conductor size. LS1 takes 1.5 mm² cable with 5, 7, 10, 12, 16 or 19 cores (2.5 mm²: 5 to 12 cores). LS2 takes 1.5 mm² cable with 16 to 40 cores (2.5 mm²: 10 to 24 cores). LS3 takes 19 to 100 cores at either size.

At a glance

• Sizes: LS1, LS2, LS3
• Cable: multi-core signalling and control cable, 1.5 or 2.5 mm²
• Core counts: 5 to 100
• Degree of protection: IPX8
• Price: Rs 5,457 - 18,639 per joint

Technical data (common to all sizes)

• Gel: UL 94-HB; halogen-free; not classified as hazardous under CLP; no shelf life
• Casing: UL 94-V2; self-extinguishing, flame-retardant material
• Degree of protection: IPX8 - fully submersible, can be used underground
• Cable working temperature: up to 90 °C
• Installation temperature: -40 °C to +50 °C
• Closing system: radial closing; re-enterable only with a tool

Why choose Rapid Joint LS

• Pre-filled with gel - nothing to mix, pour or wait for: the joint is ready as soon as it is closed

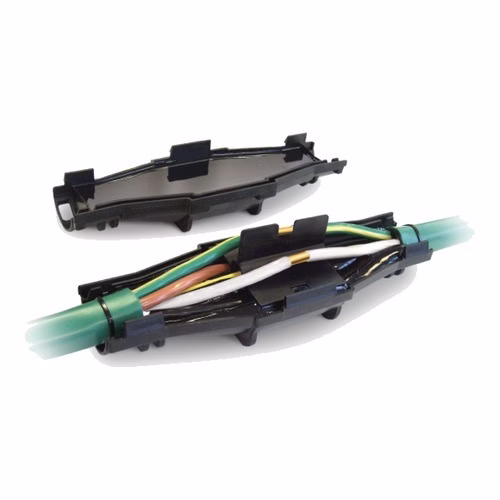

• Radial closing - the shells close around the connected conductors, so there is no sleeve to slide over the cable first
• Tamper-resistant - re-enterable, but only with a tool
• IPX8 - fully submersible and suitable for underground use
• Spacers keep the conductors apart inside the gel
• Safe gel with no shelf life - not classified as hazardous under CLP and halogen-free

Where it is used

• Control and signalling cables in plants, substations and pumping stations
• Railway and traffic signalling cable repairs
• Buried or ducted control cables in wet locations

Related products

• Raytech Rapid Joint - IPX8 straight joints for 1 kV cable up to 400 sq mm
• Raytech Super Clik - gel joints for 0.6/1 kV multi-core cable, straight or branch
• All Raytech low-voltage pre-filled joints

Frequently asked questions

What is Rapid Joint LS for?

Straight joints in multi-core signalling and control cables, buried or in wet locations.

Which size do I need?

LS1 for 5 to 19 cores at 1.5 mm²; LS2 for 16 to 40 cores; LS3 for 19 to 100 cores. The 2.5 mm² ranges are on each size page.

Is it suitable underground?

Yes - IPX8, fully submersible and suitable for underground use.

Can it be re-opened?

Yes, with a tool.

Where can I buy Raytech Rapid Joint LS in India?

From Jai Enterprises, Bhilai and Raipur, Chhattisgarh, which supplies Raytech gel-filled cable joints across India. Call +91 9340081159 with the model, quantity and delivery location and we will confirm the price, availability and lead time.

How to order

Supplied by Jai Enterprises, Bhilai and Raipur, Chhattisgarh, to sites across India. Pick the size from the list above, then call +91 9340081159 or send an enquiry with the model, quantity and delivery location - we will confirm stock, lead time and the delivered cost of the joints.
