IPX8 Gel-Filled Joint for Control Cable, 5-19 Cores - Raytech Rapid Joint LS1 (301098-018)

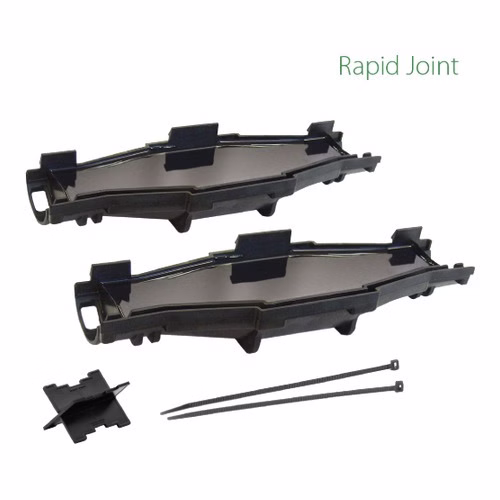

Control cable: 1.5 mm² with 5, 7, 10, 12, 16 or 19 cores, or 2.5 mm² with 5, 7, 10 or 12 cores; 180 x 60 mm. Raytech Rapid Joint LS1 is a gel pre-filled straight joint for multi-core signalling and control cables. Its two gel-filled half-shells close radially around the connected conductors and seal the joint to IPX8 - fully submersible and suitable for underground use. Item 301098-018, list price Rs 5,457 per joint.

Raytech is an Italian manufacturer that specialises in gel-based insulation for electrical connections: pre-filled gel boxes and joints that are ready to use straight from the pack, and insulating gels and rubbers for filling joints, boxes and enclosures. Rapid Joint LS uses the same radial-closing shells as the Rapid Joint power-cable joints, re-enterable only with a tool.

Is this the right one for you?

Check these five things before you order:

• The cable is a multi-core signalling or control cable.
• It has 1.5 mm² conductors and 5, 7, 10, 12, 16 or 19 cores, or 2.5 mm² conductors and 5, 7, 10 or 12 cores.
• You will join each conductor with a suitable connector before closing the joint.
• There is room for the joint: 180 x 60 mm (length x diameter).
• The joint will be buried, submerged or in a wet location (IPX8).

At a glance

• Price: Rs 5,457 per joint
• Item code: 301098-018
• Cable: multi-core signalling and control cable
• 1.5 mm² conductors: 5, 7, 10, 12, 16 or 19 cores
• 2.5 mm² conductors: 5, 7, 10 or 12 cores
• Size (length x diameter): 180 x 60 mm
• Degree of protection: IPX8

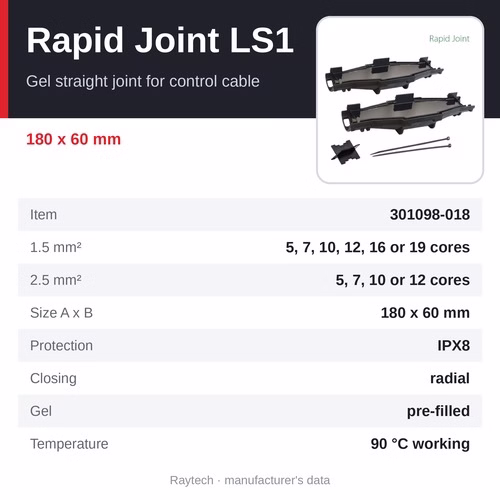

Specifications

• Model: Raytech Rapid Joint LS1
• Item code: 301098-018
• Joint type: straight (in-line), cylindrical, gel pre-filled, radial closing
• Core counts, 1.5 mm² conductors: 5, 7, 10, 12, 16 or 19
• Core counts, 2.5 mm² conductors: 5, 7, 10 or 12
• Dimensions A x B (length x diameter): 180 x 60 mm
• Gel: UL 94-HB; halogen-free; not classified as hazardous under CLP; no shelf life
• Casing: UL 94-V2; self-extinguishing, flame-retardant material
• Degree of protection: IPX8 - fully submersible, can be used underground
• Cable working temperature: up to 90 °C
• Installation temperature: -40 °C to +50 °C
• Closing system: radial closing; re-enterable only with a tool

Why choose it

• Pre-filled with gel - nothing to mix, pour or wait for: the joint is ready as soon as it is closed
• Radial closing - the shells close around the connected conductors, so there is no sleeve to slide over the cable first
• Tamper-resistant - re-enterable, but only with a tool
• IPX8 - fully submersible and suitable for underground use
• Spacers keep the conductors apart inside the gel
• Safe gel with no shelf life - not classified as hazardous under CLP and halogen-free

How it is installed

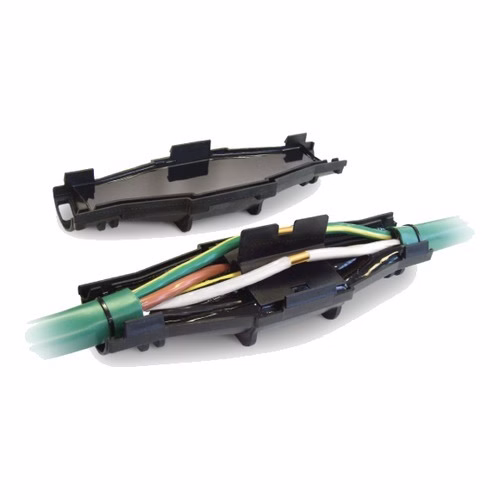

1. Prepare the cable ends and join each conductor with a suitable connector.
2. Lay the joined conductors in one gel-filled half-shell.
3. Close the second half-shell over it: the shells lock radially and the gel closes around the conductors. To re-open the joint later, use a tool.

Where it is used

• Control and signalling cables in plants, substations and pumping stations
• Railway and traffic signalling cable repairs
• Buried or ducted control cables in wet locations
• Instrumentation cable runs where a quick, cold-applied joint saves downtime

Other sizes and versions

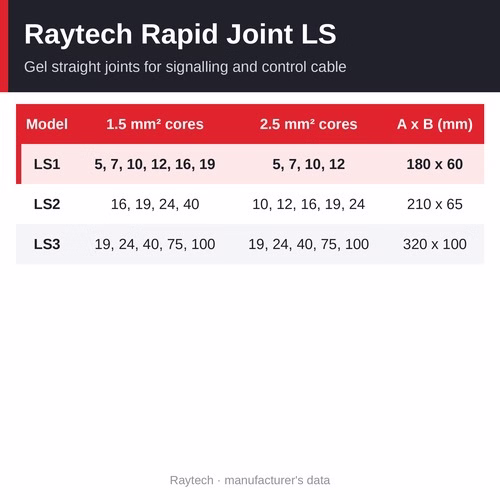

The Raytech Rapid Joint LS overview page compares all 3 side by side.

• Rapid Joint LS1 - 1.5 mm² with 5, 7, 10, 12, 16 or 19 cores; 2.5 mm² with 5, 7, 10 or 12 cores; 180 x 60 mm - Rs 5,457 per joint (this page)
• Rapid Joint LS2 - 1.5 mm² with 16, 19, 24 or 40 cores; 2.5 mm² with 10, 12, 16, 19 or 24 cores; 210 x 65 mm - Rs 7,725 per joint
• Rapid Joint LS3 - 1.5 mm² with 19, 24, 40, 75 or 100 cores; 2.5 mm² with 19, 24, 40, 75 or 100 cores; 320 x 100 mm - Rs 18,639 per joint
