IPX8 Gel-Filled Branch Joint, 2-4 Core 4-25 sq mm, 0.6/1 kV - Raytech Super Clik 3 (SUPERCLIK3)

Branch only, through 2-4 x 4-25 mm², cable diameter up to 30 mm. Raytech Super Clik 3 is a gel pre-filled branch (tee) joint for 0.6/1 kV multi-core cables. It comes complete with an insulated terminal block and a gel-filled case: connect the conductors, lay the connection in the case and close it, and the joint is sealed to IPX8 - fully submersible and suitable for underground use. Order it as item SUPERCLIK3 at Rs 15,079 per joint.

Raytech is an Italian manufacturer that specialises in gel-based insulation for electrical connections: pre-filled gel boxes and joints that are ready to use straight from the pack, and insulating gels and rubbers for filling joints, boxes and enclosures. Super Clik is a Class 2 joint to CEI 64-8, and its connections stay re-accessible even after long service because the gel never sets hard.

Is this the right one for you?

Check these five things before you order:

• You need a branch (tee) joint - Super Clik 3 is for branch connections only; for a straight joint up to 5 x 16 mm², take Super Clik 2.
• The through cable is 2, 3 or 4 x 4-25 mm² and the branch cable 2, 3 or 4 x 1.5-16 mm².
• The cable outside diameter is no more than 30 mm.
• The circuit voltage is within the joint's rating: 0.6/1 kV.
• There is room for the joint: 220 x 85 x 46 mm (A x B x C), and the joint will be buried, submerged or wet (IPX8).

At a glance

• Price: Rs 15,079 per joint
• Item code: SUPERCLIK3
• Joint type: branch (tee) joint, gel pre-filled, IPX8
• Cable: branch: through 2, 3 or 4 x 4-25 mm², branch 2, 3 or 4 x 1.5-16 mm²
• Cable outside diameter: up to 30 mm
• Rated voltage: 0.6/1 kV
• Size (A x B x C): 220 x 85 x 46 mm

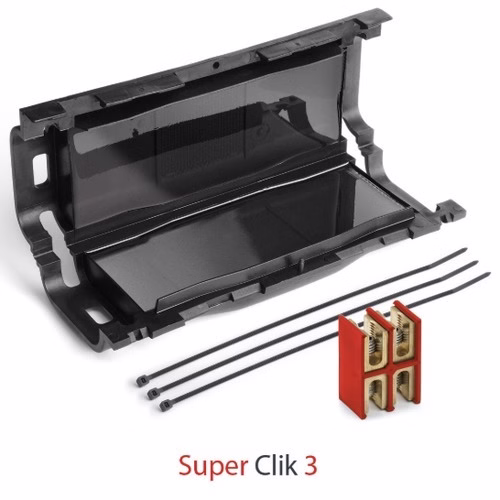

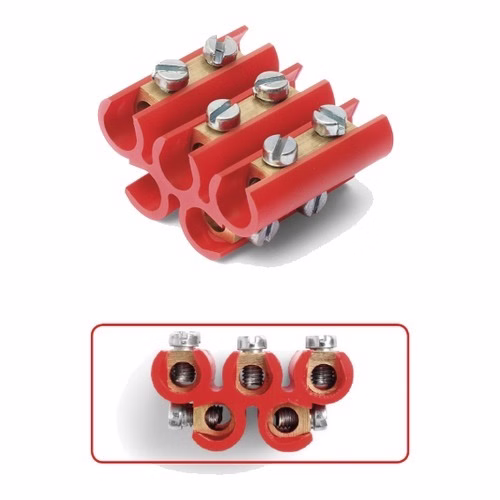

• Supplied with: an insulated terminal block, gel-filled case

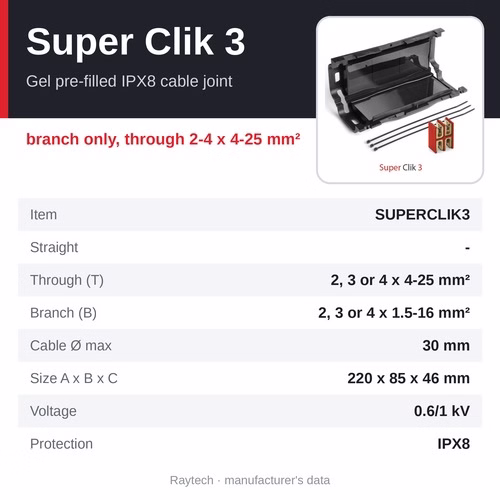

Specifications

• Model: Raytech Super Clik 3
• Item code: SUPERCLIK3
• Joint type: branch (tee) joint
• Straight connections: not applicable - branch joint
• Branch connections: through cable 2, 3 or 4 x 4-25 mm², branch cable 2, 3 or 4 x 1.5-16 mm²
• Maximum cable outside diameter: 30 mm
• Dimensions A x B x C: 220 x 85 x 46 mm
• Rated voltage: 0.6/1 kV
• Supplied with: an insulated terminal block and the gel-filled case
• Electrical performance: CEI EN 50393 as applicable; Class 2 joint to CEI 64-8
• Flame propagation: none - to CEI 20-35, IEC 60332-1 and HD 405-1 (as applicable); self-extinguishing components
• Gel: UL 94-HB; halogen-free; UV resistant; not classified as hazardous under CLP; no shelf life
• Casing: UL 94-V2
• Degree of protection: IPX8 - fully submersible, can be used underground
• Cable working temperature: up to 90 °C
• Installation temperature: -40 °C to +50 °C

Why choose it

• Complete with the connection - each joint comes with its terminal block or connector, so nothing else is needed to make it
• Straight or branch - in-line joints and tee (branch) joints from one range
• Class 2 insulation to CEI 64-8 - a cross-linked polymer gel inside a robust insulating case
• Tested the hard way - repeated flexing and torsion tests and immersion in water
• IPX8 - fully submersible and suitable for underground use
• Re-accessible - the gel stays soft, so the connections can be re-entered even after long service
• Flame retardant - self-extinguishing components, no flame propagation to CEI 20-35, IEC 60332-1 and HD 405-1
• Safe gel with no shelf life - not classified as hazardous under CLP, chemically inert, halogen-free and UV resistant

How it is installed

1. Prepare the cable ends: remove the sheath and strip the conductors to suit the terminal block.
2. Connect the conductors in the terminal block supplied - end to end for a straight joint, or the through and branch conductors for a tee.
3. Lay the block and conductors in the gel-filled case and close it: the gel closes around the conductors and the block and seals the joint.

Where it is used

• Straight repairs and extensions of buried or ducted 0.6/1 kV multi-core cables
• Tee connections to street lights, bollards and garden lighting
• Supplies to pumps, fountains and irrigation equipment, including submerged connections
• Connections in pits, manholes and other wet locations
• Industrial and infrastructure cabling where a re-accessible joint saves time later

Other sizes and versions

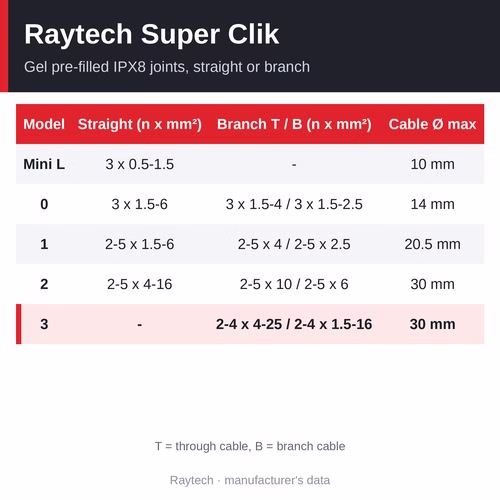

The Raytech Super Clik overview page compares all 5 side by side.

• Super Clik Mini L - straight joint, 3 x 0.5-1.5 mm², cable diameter up to 10 mm, 450 V - Rs 1,551 per joint
• Super Clik 0 - straight 3 x 1.5-6 mm² or branch, cable diameter up to 14 mm - Rs 3,028 per joint
• Super Clik 1 - straight 2-5 x 1.5-6 mm² or branch, cable diameter up to 20.5 mm - Rs 4,542 per joint
• Super Clik 2 - straight 2-5 x 4-16 mm² or branch, cable diameter up to 30 mm - Rs 9,560 per joint
• Super Clik 3 - branch only, through 2-4 x 4-25 mm², cable diameter up to 30 mm - Rs 15,079 per joint (this page)

Related products

• Raytech Rapid Joint - IPX8 straight joints for 1 kV cable up to 400 sq mm
• Raytech Rapid Joint LS - joints for multi-core control cable
• Raytech LittleJoint L - IP68 in-line micro-joints with integrated glands
• Raytech LittleJoint Y - IP68 branch micro-joints
• All Raytech low-voltage pre-filled joints

Frequently asked questions

Which cables fit Raytech Super Clik 3?

Branch: through 2, 3 or 4 x 4-25 mm², branch 2, 3 or 4 x 1.5-16 mm², with a cable outside diameter of up to 30 mm and a rated voltage of 0.6/1 kV.

Can Super Clik 3 make a straight joint?

No - Super Clik 3 is listed for branch (tee) connections only. For a straight joint, Super Clik 2 takes 2- to 5-core cable from 4 to 16 mm².

Is the terminal block included?

Yes - Super Clik 3 comes complete with an insulated terminal block and its gel-filled case, so nothing else is needed to make the joint.

Can it be buried or used under water?

Yes. Super Clik joints are IPX8 - fully submersible - and can be used underground.

Can the joint be opened again?

Yes. The gel does not set hard, so the connection can be re-entered and checked even after long service.

Where can I buy Raytech Super Clik 3 in India?

From Jai Enterprises, Bhilai and Raipur, Chhattisgarh, which supplies Raytech gel-filled cable joints across India. The list price is Rs 15,079 per joint; call +91 9340081159 with the quantity and delivery location for stock and lead time.
