IPX8 Gel-Filled In-Line Joint, 3 x 0.5-1.5 sq mm, 450 V - Raytech Super Clik Mini L (SUPERCLIKMINI-L)

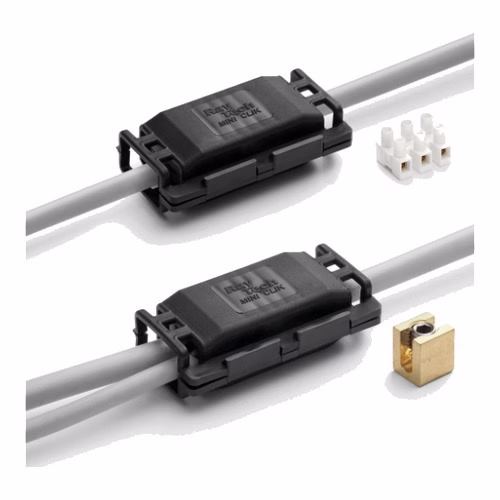

Straight joint, 3 x 0.5-1.5 mm², cable diameter up to 10 mm, 450 V. Raytech Super Clik Mini L is a gel pre-filled straight (in-line) joint for small 3-core cables rated 450 V. It comes complete with a 3-way strip connector and a gel-filled case: connect the conductors, lay the connection in the case and close it, and the joint is sealed to IPX8 - fully submersible and suitable for underground use. Order it as item SUPERCLIKMINI-L at Rs 1,551 per joint.

Raytech is an Italian manufacturer that specialises in gel-based insulation for electrical connections: pre-filled gel boxes and joints that are ready to use straight from the pack, and insulating gels and rubbers for filling joints, boxes and enclosures. Super Clik is a Class 2 joint to CEI 64-8, and its connections stay re-accessible even after long service because the gel never sets hard.

Is this the right one for you?

Check these five things before you order:

• You need a straight (in-line) joint - for a tee joint, see Super Clik 0, 1 and 2.
• The cable has 3 conductors of 0.5-1.5 mm² (formation 3 x 0.5-1.5 mm²).
• The cable outside diameter is no more than 10 mm.
• The circuit voltage is within the joint's rating: 450 V.
• There is room for the joint: 71 x 38 x 23 mm (A x B x C), and the joint will be buried, submerged or wet (IPX8).

At a glance

• Price: Rs 1,551 per joint
• Item code: SUPERCLIKMINI-L
• Joint type: straight (in-line) joint, gel pre-filled, IPX8
• Cable: straight: 3 x 0.5-1.5 mm²
• Cable outside diameter: up to 10 mm
• Rated voltage: 450 V
• Size (A x B x C): 71 x 38 x 23 mm

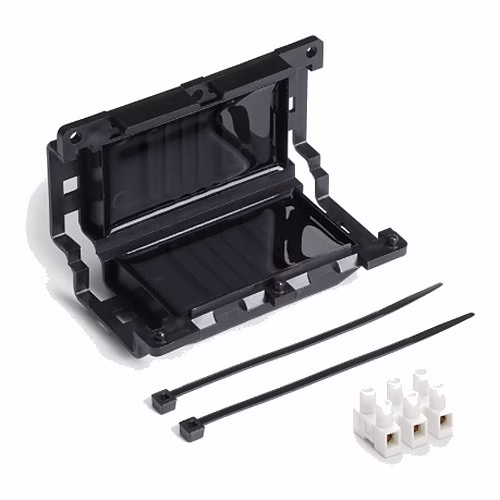

• Supplied with: a 3-way strip connector, gel-filled case

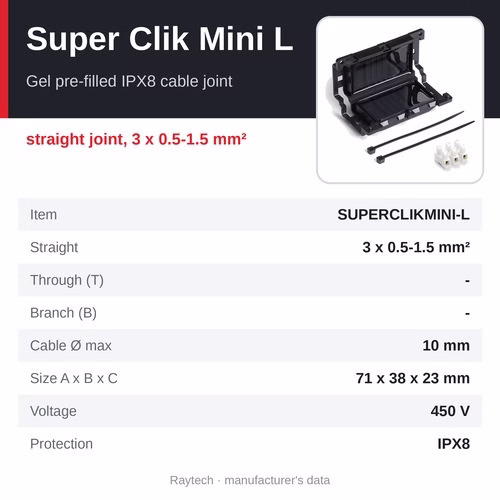

Specifications

• Model: Raytech Super Clik Mini L
• Item code: SUPERCLIKMINI-L
• Joint type: straight (in-line) joint
• Straight connections: 3 x 0.5-1.5 mm²
• Branch connections: not applicable - straight joint
• Maximum cable outside diameter: 10 mm
• Dimensions A x B x C: 71 x 38 x 23 mm
• Rated voltage: 450 V
• Supplied with: a 3-way strip connector and the gel-filled case
• Electrical performance: CEI EN 50393 as applicable; Class 2 joint to CEI 64-8
• Flame propagation: none - to CEI 20-35, IEC 60332-1 and HD 405-1 (as applicable); self-extinguishing components
• Gel: UL 94-HB; halogen-free; UV resistant; not classified as hazardous under CLP; no shelf life
• Casing: UL 94-V2
• Degree of protection: IPX8 - fully submersible, can be used underground
• Cable working temperature: up to 90 °C
• Installation temperature: -40 °C to +50 °C

Why choose it

• Complete with the connection - each joint comes with its terminal block or connector, so nothing else is needed to make it
• Straight or branch - in-line joints and tee (branch) joints from one range
• Class 2 insulation to CEI 64-8 - a cross-linked polymer gel inside a robust insulating case
• Tested the hard way - repeated flexing and torsion tests and immersion in water
• IPX8 - fully submersible and suitable for underground use
• Re-accessible - the gel stays soft, so the connections can be re-entered even after long service
• Flame retardant - self-extinguishing components, no flame propagation to CEI 20-35, IEC 60332-1 and HD 405-1
• Safe gel with no shelf life - not classified as hazardous under CLP, chemically inert, halogen-free and UV resistant

How it is installed

1. Prepare the cable ends: remove the sheath and strip the conductors to suit the terminal block.
2. Connect the conductors in the terminal block supplied - end to end for a straight joint, or the through and branch conductors for a tee.
3. Lay the block and conductors in the gel-filled case and close it: the gel closes around the conductors and the block and seals the joint.

Where it is used

• Small 450 V lighting and control cables - garden lights, signs and sensors
• Connections in pits, ground boxes and other wet locations
• Fountains, ponds and irrigation equipment (submerged connections)
• Repairs to small outdoor cables without a junction box

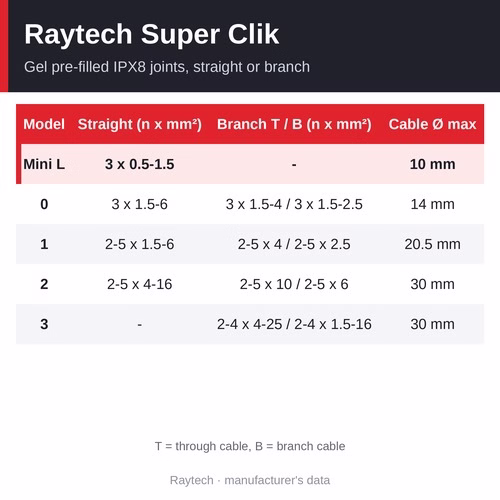

Other sizes and versions

The Raytech Super Clik overview page compares all 5 side by side.

• Super Clik Mini L - straight joint, 3 x 0.5-1.5 mm², cable diameter up to 10 mm, 450 V - Rs 1,551 per joint (this page)
• Super Clik 0 - straight 3 x 1.5-6 mm² or branch, cable diameter up to 14 mm - Rs 3,028 per joint
• Super Clik 1 - straight 2-5 x 1.5-6 mm² or branch, cable diameter up to 20.5 mm - Rs 4,542 per joint
• Super Clik 2 - straight 2-5 x 4-16 mm² or branch, cable diameter up to 30 mm - Rs 9,560 per joint
• Super Clik 3 - branch only, through 2-4 x 4-25 mm², cable diameter up to 30 mm - Rs 15,079 per joint

Related products

• Raytech Rapid Joint - IPX8 straight joints for 1 kV cable up to 400 sq mm
• Raytech Rapid Joint LS - joints for multi-core control cable
• Raytech LittleJoint L - IP68 in-line micro-joints with integrated glands
• Raytech LittleJoint Y - IP68 branch micro-joints
• All Raytech low-voltage pre-filled joints

Frequently asked questions

Which cables fit Raytech Super Clik Mini L?

Straight: 3 x 0.5-1.5 mm², with a cable outside diameter of up to 10 mm and a rated voltage of 450 V.

Can Super Clik Mini L make a branch joint?

No - Mini L is a straight (in-line) joint. For branch joints on 0.6/1 kV cable, Super Clik 0, 1 and 2 make both straight and branch joints.

Is the terminal block included?

Yes - Super Clik Mini L comes complete with a 3-way strip connector and its gel-filled case, so nothing else is needed to make the joint.

Can it be buried or used under water?

Yes. Super Clik joints are IPX8 - fully submersible - and can be used underground.

Can the joint be opened again?

Yes. The gel does not set hard, so the connection can be re-entered and checked even after long service.

Where can I buy Raytech Super Clik Mini L in India?

From Jai Enterprises, Bhilai and Raipur, Chhattisgarh, which supplies Raytech gel-filled cable joints across India. The list price is Rs 1,551 per joint; call +91 9340081159 with the quantity and delivery location for stock and lead time.

How to order

Supplied by Jai Enterprises, Bhilai and Raipur, Chhattisgarh, to sites across India. The list price for Raytech Super Clik Mini L (item SUPERCLIKMINI-L) is Rs 1,551 per joint. Call +91 9340081159 or send an enquiry from this page with the quantity and delivery location, and we will confirm stock, lead time and the delivered cost.
