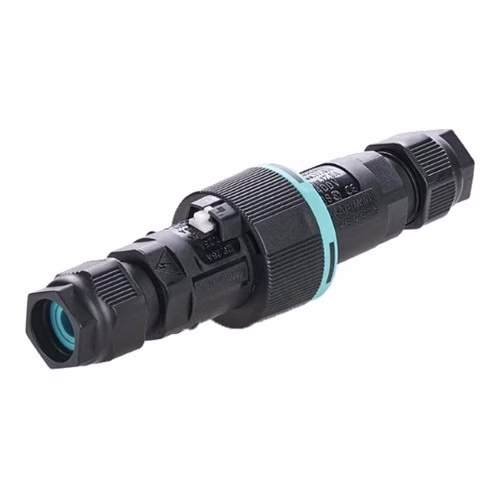

Techno TH405 Tee Plug - IP68 Bayonet Plug-and-Socket Connectors, 3 to 8 Poles

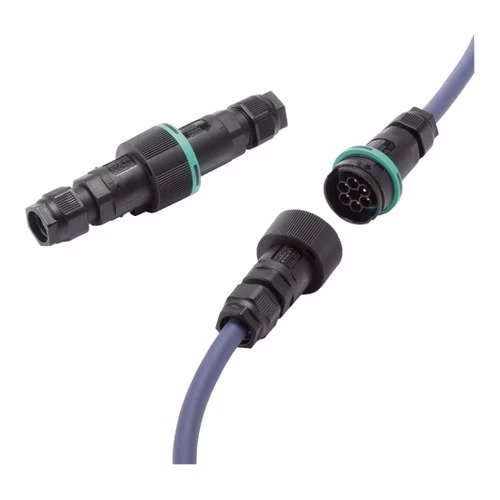

Techno TH405 Tee Plug is a bayonet-locking plug-and-socket connector for cable-to-cable connections, sealed to IP66 / IP68 and rated for 1,000 mating cycles. Techno s.r.l., of Guanzate near Como in Italy, designs and makes waterproof electrical connectors - the Tee Tube joints, Tee Plug plug-and-socket connectors and Tee Box junction boxes - for outdoor lighting and installations exposed to water and dust.

Ten items: plugs and sockets with 3, 4, 5, 6 or 8 poles. The plugs also mate with TH406 panel sockets. Each item has its own page with its code and price.

Choose your TH405

Prices are list prices per piece; each page gives the order codes.

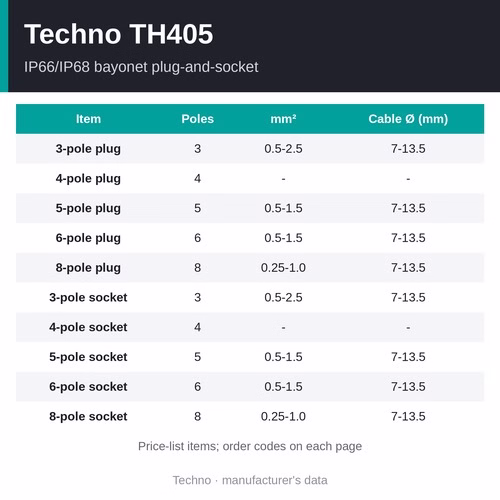

• TH405 3-pole plug - 3 poles, 0.5-2.5 mm², 25 A, cable diameter 7-13.5 mm - Rs 1,575 per piece
• TH405 4-pole plug - 4 poles - version confirmed at order - Rs 1,645 per piece
• TH405 5-pole plug - 5 poles, 0.5-1.5 mm², 17.5 A, cable diameter 7-13.5 mm - Rs 1,735 per piece
• TH405 6-pole plug - 6 poles, 0.5-1.5 mm², 17.5 A, cable diameter 7-13.5 mm - Rs 1,910 per piece
• TH405 8-pole plug - 8 poles, 0.25-1.0 mm², 10 A AC/DC, cable diameter 7-13.5 mm - Rs 2,430 per piece

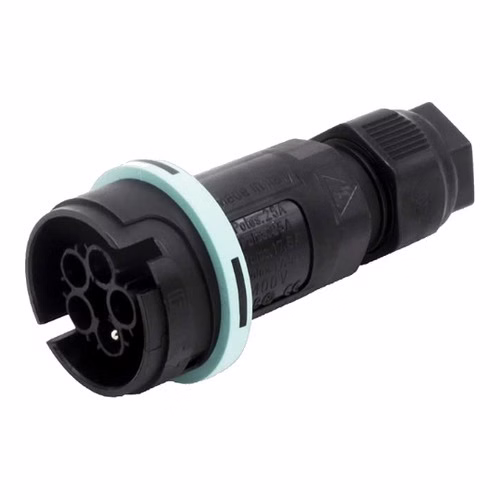

• TH405 3-pole socket - 3 poles, 0.5-2.5 mm², 25 A, cable diameter 7-13.5 mm - Rs 1,715 per piece
• TH405 4-pole socket - 4 poles - version confirmed at order - Rs 1,790 per piece
• TH405 5-pole socket - 5 poles, 0.5-1.5 mm², 17.5 A, cable diameter 7-13.5 mm - Rs 1,885 per piece
• TH405 6-pole socket - 6 poles, 0.5-1.5 mm², 17.5 A, cable diameter 7-13.5 mm - Rs 1,900 per piece
• TH405 8-pole socket - 8 poles, 0.25-1.0 mm², 10 A AC/DC, cable diameter 7-13.5 mm - Rs 2,430 per piece

How to choose

Pick the pole count: 3-pole for single-phase supplies (25 A, 0.5-2.5 mm²), 5- and 6-pole for three-phase or extra circuits (17.5 A, 0.5-1.5 mm²), 8-pole for control and signals (10 A, 0.25-1.0 mm²). A connection needs one plug and one socket - or a TH406 panel socket.

At a glance

• Items: 3, 4, 5, 6 and 8-pole plugs and sockets
• Coupling: bayonet
• Cable outside diameter: 7-13.5 mm
• Size: Ø 38 mm; Ø 38 x 141.2 mm mated
• Degree of protection: IP66 / IP68
• Price: Rs 1,575 - 2,430 per piece

Technical data (common to the TH405 range)

• Configuration: plug-and-socket connector, cable-to-cable
• Coupling: bayonet
• Terminal screws: M3, 0.8 Nm (8-pole: M2, 0.2 Nm)
• Mating cycles: 1,000 mating cycles
• Insulation coordination: overvoltage category II, pollution degree 2
• Temperature range: -40 °C to +125 °C
• Operating temperature: +60 °C max. operating
• Impact resistance: IK08
• Tracking index: PTI 175
• Body: PA66, UL94 V2
• Connector housing: PA66 glass-filled, UL94 V0
• Cable glands: PA66, UL94 V2
• Seals: TPE
• Grommets: TPE
• Contacts: brass
• Screws: steel
• Materials: halogen-free and silicone-free
• Tightening torques: gland nut 2.5 Nm
• Corrosion: salt-mist tested to EN 60068-2-11
• Standard: EN 61984:2009

Why choose Techno TH405

• Bayonet locking - quick, positive connection
• IP66 / IP68
• Rated for 1,000 mating cycles
• From 3 to 8 poles - 25 A (3-pole), 17.5 A (5- and 6-pole) or 10 A (8-pole)
• Mates with TH406 panel sockets as well as TH405 cable sockets
• Strong body - PA66 to UL94 V2 with a glass-filled UL94 V0 insert; impact rated IK08
• Halogen-free and silicone-free; built to EN 61984

How it is installed

1. Slide the gland nut and seal over the cable, strip the sheath and connect the conductors to the screw terminals of the plug or socket, following the contact marking.
2. Assemble the connector and tighten the gland nut to the stated torque so the seal grips the cable sheath.
3. Mate the plug with its socket and lock the coupling. To disconnect, unlock the coupling and pull the halves apart.

Where it is used

• Detachable supplies to luminaires, poles and outdoor equipment
• Street, park and architectural lighting
• Control and signal circuits (8-pole)
• Temporary and event installations

Related products

• Techno TH406 panel sockets - M28 panel sockets for TH405 plugs
• Techno TH387 mini plug-and-socket - screw-ring coupling, 3 to 5 poles
• Techno TH381 micro plug-and-socket - push-pull, 2 or 3 poles
• Techno grommets and adapters - seal smaller or several cables in the glands
• All Techno IP68 waterproof connectors

Frequently asked questions

Do I need a plug and a socket?

Yes - each page is for one piece; a connection needs one plug and one socket, or a TH406 panel socket.

Is there a 4-pole TH405?

The 4-pole TH405 is on Techno's price list, but Techno's current website lists no 4-pole code. We confirm the exact version with you before supply.

Can the plug go on a panel?

The plug mates with a TH406 panel socket of the same pole count, mounted in an M28 hole.

Where can I buy Techno TH405 connectors in India?

From Jai Enterprises, Bhilai and Raipur, Chhattisgarh, which supplies Techno IP68 connectors across India. Call +91 9340081159 with the model, quantity and delivery location and we will confirm the price, availability and lead time.

How to order

Supplied by Jai Enterprises, Bhilai and Raipur, Chhattisgarh, to sites across India. Pick the size from the list above, then call +91 9340081159 or send an enquiry with the model, quantity and delivery location - we will confirm stock, lead time and the delivered cost of the connectors.
