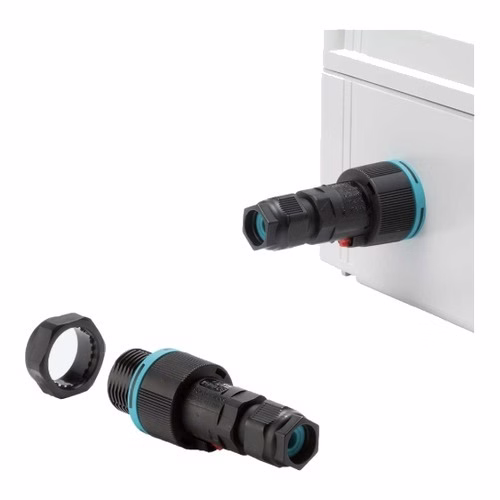

Techno TH406 - IP68 M28 Panel Sockets for TH405 Tee Plug Connectors, 3 to 8 Poles

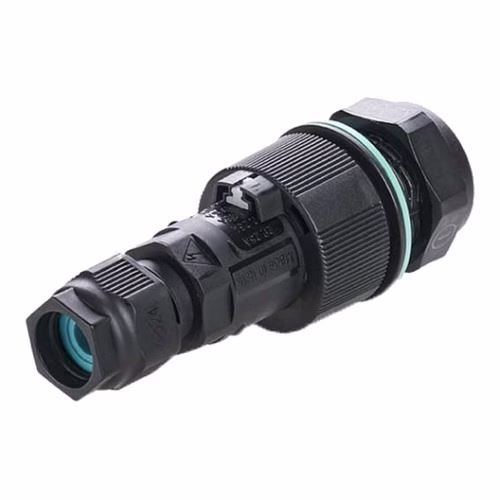

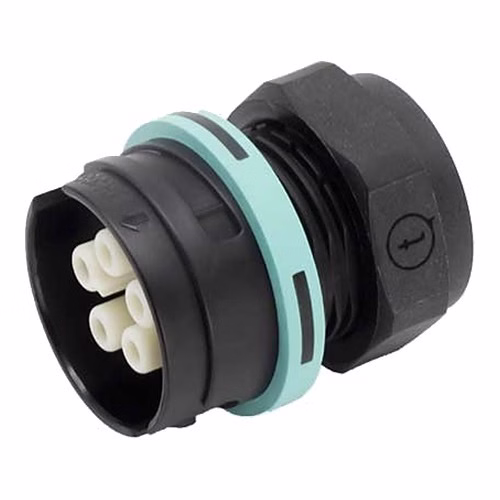

Techno TH406 is a panel-mount socket with an M28 thread and fixing nut that takes a TH405 Tee Plug cable plug, sealed to IP68. Techno s.r.l., of Guanzate near Como in Italy, designs and makes waterproof electrical connectors - the Tee Tube joints, Tee Plug plug-and-socket connectors and Tee Box junction boxes - for outdoor lighting and installations exposed to water and dust.

Four items - 3, 5, 6 and 8 poles - each with its own page, code and price.

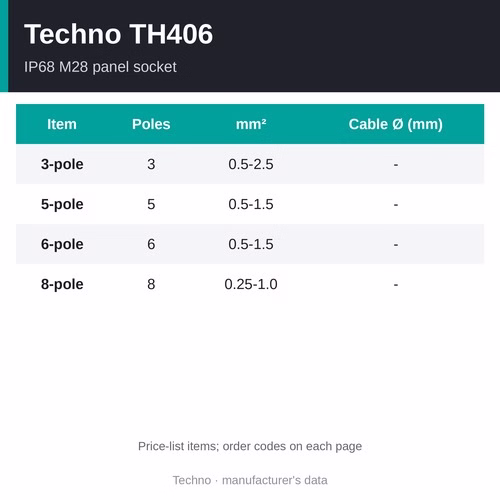

Choose your TH406

Prices are list prices per piece; each page gives the order codes.

• TH406 3-pole - 3 poles, 0.5-2.5 mm², 25 A - Rs 1,165 per piece
• TH406 5-pole - 5 poles, 0.5-1.5 mm², 17.5 A - Rs 1,285 per piece
• TH406 6-pole - 6 poles, 0.5-1.5 mm², 17.5 A - Rs 1,415 per piece
• TH406 8-pole - 8 poles, 0.25-1.0 mm², 10 A AC/DC - Rs 1,795 per piece

How to choose

Pick the same pole count as the TH405 plug it will take: 3-pole (25 A), 5- or 6-pole (17.5 A) or 8-pole (10 A, control and signals).

At a glance

• Items: 3, 5, 6 and 8 poles
• Mounting: M28 thread, fixing nut included, panel up to 10 mm thick
• Mates with: TH405 Tee Plug cable plugs
• Degree of protection: IP68
• Price: Rs 1,165 - 1,795 per piece

Technical data (common to the TH406 range)

• Configuration: panel-mount socket with fixing nut (M28 thread)
• Coupling: bayonet (mates with TH405 cable plugs)
• Terminal screws: M3, 0.8 Nm (8-pole: M2, 0.2 Nm)
• Mating cycles: 1,000 mating cycles
• Insulation coordination: overvoltage category II, pollution degree 2
• Temperature range: -40 °C to +125 °C
• Operating temperature: +60 °C max. operating
• Impact resistance: IK08
• Tracking index: PTI 175
• Body: PA66, UL94 V2
• Connector housing: PA66 glass-filled, UL94 V0
• Seals: TPE
• Contacts: brass
• Screws: steel
• Panel: panel up to 10 mm thick (conductive panels allowed)
• Fixing: fixing nut included
• Materials: halogen-free and silicone-free
• Tightening torques: fixing nut 2.0 Nm
• Corrosion: salt-mist tested to EN 60068-2-11
• Standard: EN 61984:2009

Why choose Techno TH406

• Panel mounting - M28 thread, fixing nut included, for panels up to 10 mm thick (conductive panels allowed)
• Mates with TH405 Tee Plug cable plugs - bayonet locking
• IP68
• Rated for 1,000 mating cycles
• Strong body - PA66 to UL94 V2 with a glass-filled UL94 V0 insert; IK08
• Halogen-free and silicone-free; built to EN 61984

How it is installed

1. Cut the panel hole for the M28 thread, fit the socket from the front and tighten the fixing nut (2.0 Nm).
2. Connect the conductors on the back to the screw terminals, following the contact marking.
3. Plug in a TH405 cable plug of the same pole count and lock the bayonet.

Where it is used

• Luminaire housings and lighting columns
• Outdoor control panels and enclosures
• Equipment that needs a detachable, sealed supply connection
• Signs and displays

Related products

• Techno TH405 Tee Plug - bayonet plug-and-socket, 3 to 8 poles
• Techno TH387 mini plug-and-socket - screw-ring coupling, 3 to 5 poles
• All Techno IP68 waterproof connectors

Frequently asked questions

Which plug fits TH406?

A TH405 Tee Plug cable plug with the same number of poles.

Is the fixing nut included?

Yes.

How thick can the panel be?

Up to 10 mm thick; conductive panels are allowed.

Where can I buy Techno TH406 connectors in India?

From Jai Enterprises, Bhilai and Raipur, Chhattisgarh, which supplies Techno IP68 connectors across India. Call +91 9340081159 with the model, quantity and delivery location and we will confirm the price, availability and lead time.

How to order

Supplied by Jai Enterprises, Bhilai and Raipur, Chhattisgarh, to sites across India. Pick the size from the list above, then call +91 9340081159 or send an enquiry with the model, quantity and delivery location - we will confirm stock, lead time and the delivered cost of the connectors.
