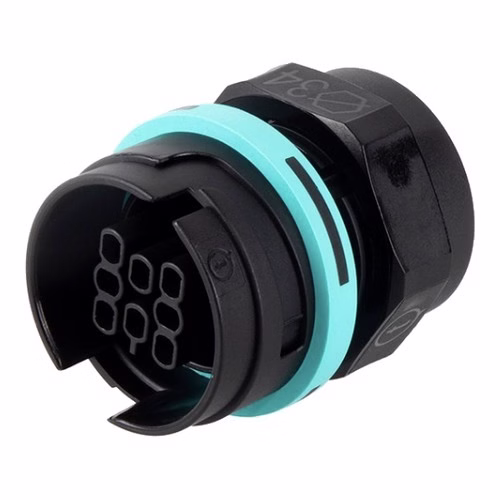

IP68 M28 Panel Socket for TH405 Plugs, 8-Pole, 0.25-1.0 sq mm, 10 A AC/DC - Techno TH406 (THB.406.C8A)

8 poles, 0.25-1.0 mm², 10 A AC/DC, 400 V AC (60 V DC). Techno TH406 8-pole is a panel-mount socket with an M28 thread and fixing nut, for a TH405 Tee Plug cable plug - IP68. Order code THB.406.C8A. List price Rs 1,795 per piece.

Techno s.r.l., of Guanzate near Como in Italy, designs and makes waterproof electrical connectors - the Tee Tube joints, Tee Plug plug-and-socket connectors and Tee Box junction boxes - for outdoor lighting and installations exposed to water and dust.

Is this the right one for you?

Check these five things before you order:

• You need a 8-pole connector (panel socket).
• Each conductor is 0.25-1.0 mm².
• The connector is mounted in a panel up to 10 mm thick, with an M28 hole.
• The circuit is within 10 A AC/DC and 400 V AC (60 V DC).
• The connection needs IP68.

At a glance

• Price: Rs 1,795 per piece
• Order code: THB.406.C8A
• Poles: 8 (marking 1-2-3-4-5-6-7-E)
• Conductors: 0.25-1.0 mm²
• Rating: 10 A AC/DC, 400 V AC (60 V DC)
• Degree of protection: IP68

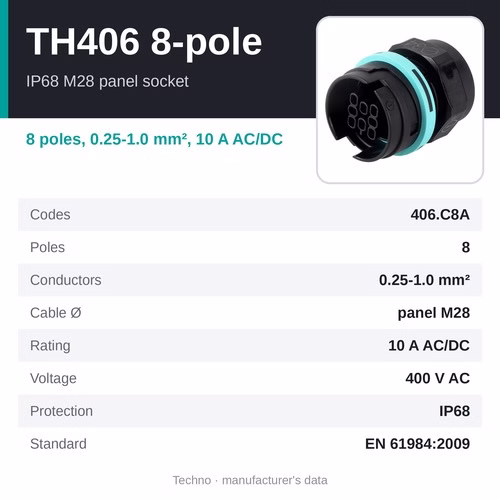

Specifications

• Product: Techno TH406 8-pole
• Poles: 8
• Contact marking: 1-2-3-4-5-6-7-E
• Terminals: screw
• Conductor cross-section: 0.25-1.0 mm²
• Rated current: 10 A AC/DC
• Rated voltage: 400 V AC (60 V DC)
• Rated impulse voltage: 2.5 kV
• THB.406.C8A: IP68; box of 200
• Configuration: panel-mount socket with fixing nut (M28 thread)
• Coupling: bayonet (mates with TH405 cable plugs)
• Terminal screws: M3, 0.8 Nm (8-pole: M2, 0.2 Nm)
• Mating cycles: 1,000 mating cycles
• Insulation coordination: overvoltage category II, pollution degree 2
• Temperature range: -40 °C to +125 °C
• Operating temperature: +60 °C max. operating
• Impact resistance: IK08
• Tracking index: PTI 175
• Body: PA66, UL94 V2
• Connector housing: PA66 glass-filled, UL94 V0
• Seals: TPE
• Contacts: brass
• Screws: steel
• Panel: panel up to 10 mm thick (conductive panels allowed)
• Fixing: fixing nut included
• Materials: halogen-free and silicone-free
• Tightening torques: fixing nut 2.0 Nm
• Corrosion: salt-mist tested to EN 60068-2-11
• Standard: EN 61984:2009

Why choose Techno TH406

• Panel mounting - M28 thread, fixing nut included, for panels up to 10 mm thick (conductive panels allowed)
• Mates with TH405 Tee Plug cable plugs - bayonet locking
• IP68
• Rated for 1,000 mating cycles
• Strong body - PA66 to UL94 V2 with a glass-filled UL94 V0 insert; IK08
• Halogen-free and silicone-free; built to EN 61984

How it is installed

1. Cut the panel hole for the M28 thread, fit the socket from the front and tighten the fixing nut (2.0 Nm).
2. Connect the conductors on the back to the screw terminals, following the contact marking.

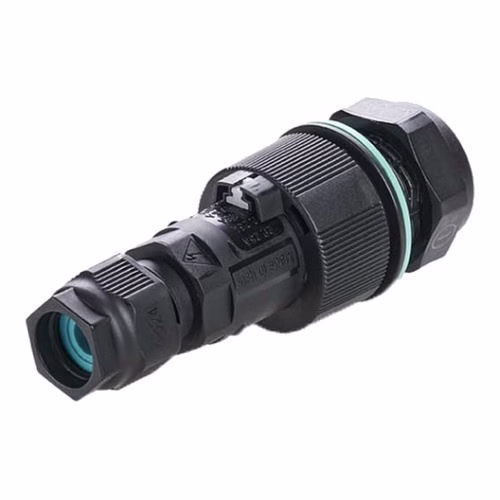

3. Plug in a TH405 cable plug of the same pole count and lock the bayonet.

Where it is used

• Luminaire housings and lighting columns
• Outdoor control panels and enclosures
• Equipment that needs a detachable, sealed supply connection
• Signs and displays

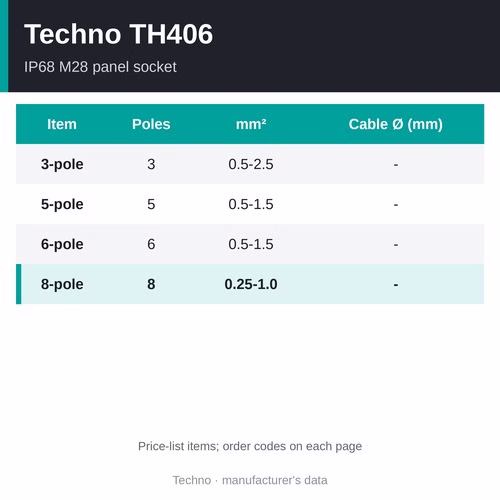

Other sizes and versions

The Techno TH406 panel socket overview page compares all 4 side by side.

• TH406 3-pole - 3 poles, 0.5-2.5 mm², 25 A - Rs 1,165 per piece
• TH406 5-pole - 5 poles, 0.5-1.5 mm², 17.5 A - Rs 1,285 per piece
• TH406 6-pole - 6 poles, 0.5-1.5 mm², 17.5 A - Rs 1,415 per piece
• TH406 8-pole - 8 poles, 0.25-1.0 mm², 10 A AC/DC - Rs 1,795 per piece (this page)

Related products

• Techno TH405 Tee Plug - bayonet plug-and-socket, 3 to 8 poles
• Techno TH387 mini plug-and-socket - screw-ring coupling, 3 to 5 poles
• All Techno IP68 waterproof connectors

Frequently asked questions

Which cables fit Techno TH406 8-pole?

Conductors of 0.25-1.0 mm².

Which plug fits TH406?

A TH405 Tee Plug cable plug with the same number of poles - the bayonet locks them together.

How thick can the panel be?

Up to 10 mm thick; conductive panels are allowed. The fixing nut is included.

Is the price for one piece?

Yes - Rs 1,795 is the list price for one panel socket.

Where can I buy Techno TH406 8-pole in India?

From Jai Enterprises, Bhilai and Raipur, Chhattisgarh, which supplies Techno IP68 connectors across India. The list price is Rs 1,795 per piece; call +91 9340081159 with the quantity and delivery location for stock and lead time.
