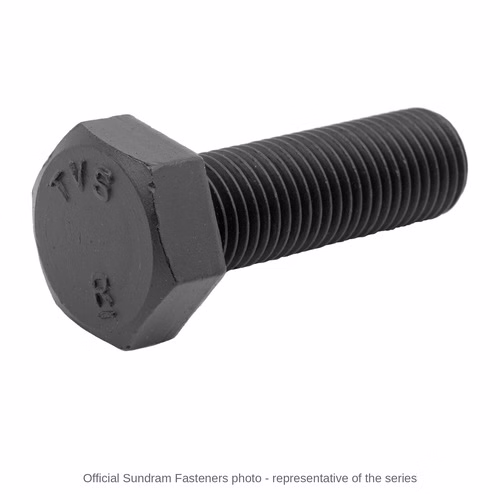

TVS Hex Head Cap Screws, inch BSW/BSF – 1/4" to 5/8", grades R, S, T and V

TVS Sundram Fasteners Hex Head Cap Screws, inch BSW/BSF are fully threaded hexagon head screws made by Sundram Fasteners Limited to BS 1083, in inch (BSW/BSF) sizes from 1/4" to 5/8", property classes R, S, T and V, supplied in zinc phosphate and 4 plated or coated finishes (listed below). Being fully threaded, they can be used as a screw into a tapped hole or with a nut, and the thread runs right up to the head, so a short grip length is no problem. Each head carries the TVS mark and the grade mark, and the parts are made by cold forging.

SFL's retail price list of October 2026 gives recommended retail list prices from Rs 555 to Rs 6,235 per 100 pieces across the listed sizes; the exact price for your sizes, lengths, property class and finish is confirmed on enquiry.

Jai Enterprises is an authorised distributor of TVS Sundram Fasteners high tensile fasteners and supplies them from Bhilai and Raipur all over Chhattisgarh - Bhilai, Raipur, Durg, Korba, Bilaspur, Raigarh, Jagdalpur, Kanker, Ambikapur and every other district - and across India.

Is this the right one for you?

Check these four things before you order:

• Your thread is inch BSW or BSF (British Whitworth / fine), not UNC/UNF.
• The size you need is within 1/4" to 5/8".
• You want a fully threaded part - for a tapped hole, or a nut on a short grip length. For a plain shank under the head, choose the hex head bolt of the same standard.
• One of the property classes R, S, T or V covers your load; the grade mark is on the head.

List prices (SFL, 1 October 2026)

Prices are SFL's recommended retail list prices effective 1 October 2026, in rupees per 100 pieces, for the zinc phosphate and trivalent chrome-free finishes. A few sizes are shown; ask us for any other size in the range.

• 1/4" x 1": Rs 620 per 100 pieces
• 5/16" x 1-1/4": Rs 780 per 100 pieces
• 3/8" x 1-1/2": Rs 1,120 per 100 pieces
• 7/16" x 1-3/4": Rs 1,695 per 100 pieces
• 1/2" x 2": Rs 2,675 per 100 pieces
• 5/8" x 2-1/2": Rs 5,365 per 100 pieces
• Prices apply to the zinc phosphate and trivalent chrome-free finishes; other finishes are quoted on enquiry
• Grade R is listed; the other BS 1083 grades (S, T and V - grades J and T in the wording of the list) are priced on enquiry
• An intermediate length is charged at the next listed length; lengths beyond the listed maximum are quoted on enquiry
• The list gives the same price for hex head bolts and hex head cap screws of the same size and length (1/4" excepted)

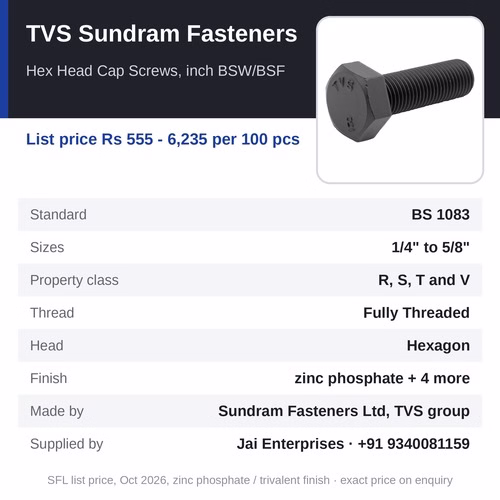

At a glance

• Brand: TVS Sundram Fasteners (Sundram Fasteners Limited, TVS group)
• Product: Hex Head Cap Screws, inch BSW/BSF
• Standard: BS 1083
• Sizes: 1/4" to 5/8"
• Head form: Hexagon
• Drive: Hexagon
• Thread: Fully Threaded
• Property class: R, S, T and V
• Material: Steel
• Surface finish: zinc phosphate, trivalent iridescent, trivalent white, hot dip galvanised and zinc flake coating (Geomet / Magni / Delta)
• Forging: cold forging
• List price: Rs 555 - 6,235 per 100 pieces (SFL list, 1 October 2026); exact price on enquiry
• Supplied by: Jai Enterprises, Bhilai and Raipur - to every district of Chhattisgarh and across India, +91 9340081159

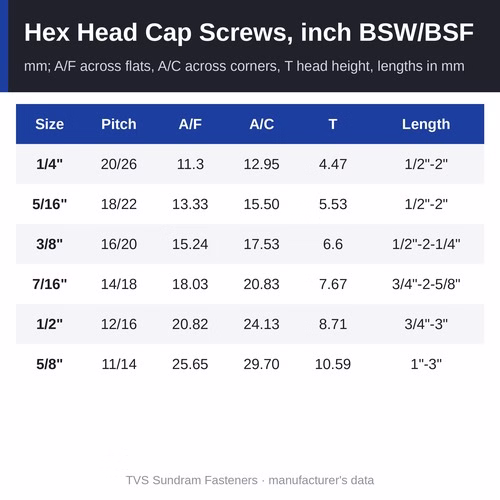

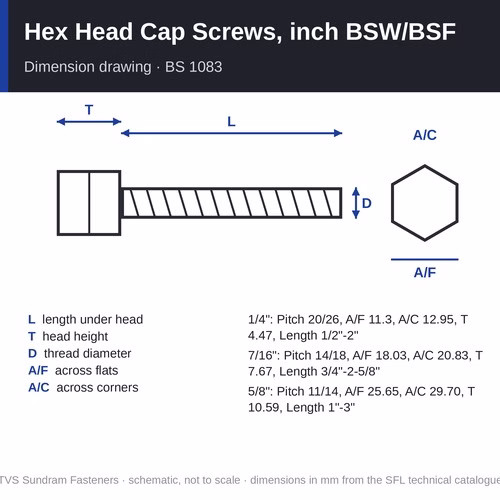

Specifications and dimensions

• Standard: BS 1083
• Material: high tensile steel; inch grades to BS 1083 (R, S, T, V)
• Property class: R, S, T and V
• Surface finish options: zinc phosphate, trivalent iridescent, trivalent white, hot dip galvanised and zinc flake coating (Geomet / Magni / Delta)
• Manufacture: cold forging
• Marking: TVS brand mark on the head and the property class mark
• 1/4": 20 BSW / 26 BSF tpi; across flats 11.3 mm, across corners 12.95 mm, head height 4.47 mm; lengths 1/2" to 2"; unthreaded length max 3.17 mm (BSW) / 2.44 mm (BSF)
• 5/16": 18 BSW / 22 BSF tpi; across flats 13.33 mm, across corners 15.50 mm, head height 5.53 mm; lengths 1/2" to 2"; unthreaded length max 3.5 mm (BSW) / 2.87 mm (BSF)
• 3/8": 16 BSW / 20 BSF tpi; across flats 15.24 mm, across corners 17.53 mm, head height 6.6 mm; lengths 1/2" to 2-1/4"; unthreaded length max 3.96 mm (BSW) / 3.17 mm (BSF)
• 7/16": 14 BSW / 18 BSF tpi; across flats 18.03 mm, across corners 20.83 mm, head height 7.67 mm; lengths 3/4" to 2-5/8"; unthreaded length max 4.53 mm (BSW) / 3.5 mm (BSF)
• 1/2": 12 BSW / 16 BSF tpi; across flats 20.82 mm, across corners 24.13 mm, head height 8.71 mm; lengths 3/4" to 3"; unthreaded length max 5.28 mm (BSW) / 4.00 mm (BSF)
• 5/8": 11 BSW / 14 BSF tpi; across flats 25.65 mm, across corners 29.70 mm, head height 10.59 mm; lengths 1" to 3"; unthreaded length max 5.77 mm (BSW) / 4.53 mm (BSF)
• Note: 5/8": across corners 29.70 mm, as on the bolt and nut tables for the same 25.65 mm hexagon (the printed table says 28.70)
• Source: SFL's technical product catalogue (September 2026 edition) and SFL's digital product catalogue; dimensions in mm

Why choose TVS Sundram Fasteners

• Made by Sundram Fasteners Limited, a TVS group company making high tensile fasteners since 1966: first Indian company with ISO 9000, IATF 16949:2016 certified, Deming Prize 2018 for 17 plants.
• Every lot is backed by a BIS, NABL and ISO/IEC 17025 certified laboratory - tensile, fatigue, torque-tension, salt spray and coating thickness testing - as described in SFL's technical product catalogue (September 2026 edition).
• Made to a named standard - BS 1083 - with the dimensions published in SFL's technical catalogue, so parts interchange with any other maker's to the same standard.
• The grade mark on each part shows its property class (R, S, T and V), so site inspection is simple.
• A choice of finishes - zinc phosphate, trivalent iridescent, trivalent white, hot dip galvanised and zinc flake coating (Geomet / Magni / Delta) - from plain indoor use to hot dip galvanised and zinc flake coating for outdoor and corrosive service.
• Available through Jai Enterprises in Bhilai and Raipur, with the full size range to order.

How to choose and fit

1. Pick the thread series and size from the drawing or the mating part: measure the diameter and pitch (or threads per inch) rather than guessing.
2. Choose the length: for a nut and bolt, add the grip (total thickness clamped) to the nut height plus two or three threads; for a tapped hole, allow at least one diameter of engagement in steel.
3. Choose the grade the designer specified: grade R (BS 1083) is the general-purpose high tensile grade, S, T and V for higher clamp loads; use nuts of matching grade.
4. Choose the finish for the environment: zinc phosphate for indoor or oiled use, trivalent zinc plating for mild exposure, hot dip galvanising or zinc flake coating for outdoor and corrosive sites.
5. Tighten to the torque the design calls for, with a washer under the turned element where needed, and use a nut of matching class.

Where it is used

• general machine building and equipment assembly
• automotive and tractor assemblies and repairs
• structural steel, platforms and handrails (with the matching nut and washer)
• pumps, motors, gearboxes and valves
• panel boards, cable trays and electrical installations
• maintenance stock for plants and workshops
• older British-standard machinery, textile and mill equipment

Other versions and series

• TVS Sundram Fasteners Hex Head Cap Screws, ISO 4017 metric - M5 to M56, list price Rs 440 - 333,250 per 100
• TVS Sundram Fasteners Hex Head Cap Screws, DIN 933 old across-flats - M10, M12, M14 and M22, list price Rs 1,050 - 24,205 per 100
• TVS Sundram Fasteners Hex Head Cap Screws, inch UNC/UNF - 1/4" to 1-1/4", list price Rs 555 - 65,620 per 100

Related products

• TVS Sundram Fasteners Hex Head Bolts, inch BSW/BSF - the same head with a plain shank
• TVS Sundram Fasteners Hex Nuts, inch BSW/BSF - the matching hex nut

Frequently asked questions

What is the price of Hex Head Cap Screws, inch BSW/BSF?

SFL's recommended retail list price effective 1 October 2026 runs from Rs 555 to Rs 6,235 per 100 pieces across the listed sizes, for the zinc phosphate and trivalent chrome-free finishes. The examples above show typical sizes. Call Jai Enterprises on +91 9340081159 with your sizes, grade, finish and quantity for the exact price; grades S, T and V, other finishes and non-listed lengths are quoted on enquiry.

What do the inch grades mean?

This series is made in grades R, S, T and V. Grades 5, 5.2 and 8 are the SAE J429 strength grades used with UNC/UNF threads; R, S, T and V are the BS 1083 strength grades used with BSW/BSF threads. The grade mark is on the head. Ask us which grade the equipment calls for if the drawing does not say.

What is the difference between a hex head cap screw and a hex head bolt?

Both have the same hexagon head; the screw is threaded all the way to the head, the bolt has a plain shank under the head and is threaded only at the end. Use the screw for tapped holes and short grips, the bolt where the clamped parts should bear on a plain shank. The bolts are on the matching bolt page.

Are TVS Hex Head Cap Screws, inch BSW/BSF available in Chhattisgarh?

Yes. Jai Enterprises, an authorised distributor of TVS Sundram Fasteners, supplies from Bhilai and Raipur all over Chhattisgarh and across India. Call +91 9340081159 or use the enquiry form.

Can I get a different finish or a non-listed size?

Yes. The standard finishes are zinc phosphate, trivalent iridescent, trivalent white, hot dip galvanised and zinc flake coating (Geomet / Magni / Delta); other finishes and sizes or lengths outside the list are quoted on enquiry from SFL.

How to order

Call Jai Enterprises on +91 9340081159 or send an enquiry with the sizes, lengths, property class, finish and quantity of Hex Head Cap Screws, inch BSW/BSF you need. SFL's list price is Rs 555 - 6,235 per 100 pieces across the listed sizes (SFL list, 1 October 2026); the exact price is confirmed on enquiry. We supply from Bhilai and Raipur all over Chhattisgarh - Bhilai, Raipur, Durg, Korba, Bilaspur, Raigarh, Jagdalpur, Kanker, Ambikapur and every other district - and across India.
