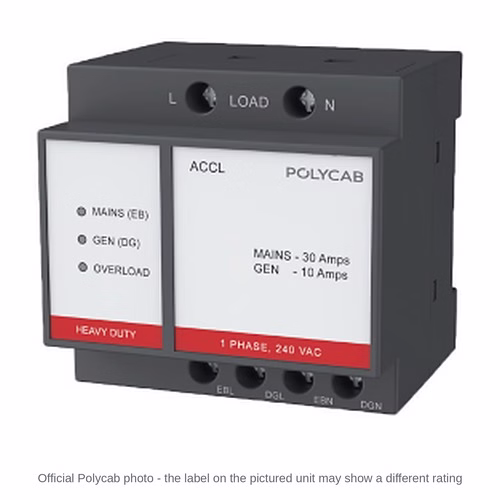

Polycab ACCL – Single-Phase Automatic Changeover with Current Limiter, 30 A Mains, 0.5 to 30 A Genset

The Polycab ACCL (automatic changeover with current limiter) is a single-phase device that switches a flat, shop or office from the mains to the generator supply when the mains fails, and limits the current it can draw from the generator. It is rated 30 A on the mains side and is made with generator-side limits of 0.5, 1, 1.5, 2.5, 3, 4, 5, 6, 8, 9, 10, 15, 20, 25 and 30 A. Every rating has the same MRP, Rs 3,105 per piece (polycab.com, October 2026).

Polycab India Limited is India's largest manufacturer of wires and cables, with 27 manufacturing facilities, 4,300+ authorised distributors, 2,00,000+ retailers and an export presence in 84 countries (polycab.com, October 2026). Its switchgear range covers MCBs, RCCBs, RCBOs, isolators, changeover switches, ACCLs and distribution boards. Jai Enterprises supplies the Polycab ACCL from Bhilai and Raipur all over Chhattisgarh - Bhilai, Raipur, Durg, Korba, Bilaspur, Raigarh, Jagdalpur, Kanker, Ambikapur and every other district - and across India.

Is this the right one for you?

Check these four things before you order:

• The supply is single phase and the mains (EB) side is up to 30 A.
• The building has a shared or standby generator (DG) and each flat or shop is allowed a fixed generator current.
• You know the generator current allotted to you - the ACCL is made for 0.5, 1, 1.5, 2.5, 3, 4, 5, 6, 8, 9, 10, 15, 20, 25 and 30 A.
• You want the changeover to happen automatically, without anyone operating a switch.

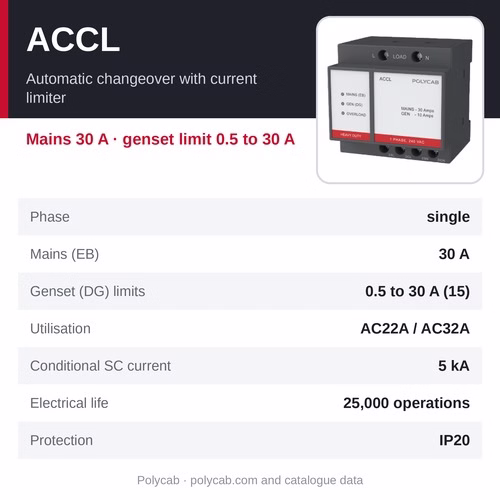

At a glance

• MRP: Rs 3,105 per piece for every genset rating (polycab.com, October 2026, inclusive of taxes)
• Product: Polycab ACCL
• Type: automatic changeover with current limiter, single phase
• Mains (EB) rating: 30 A
• Genset (DG) limits: 0.5, 1, 1.5, 2.5, 3, 4, 5, 6, 8, 9, 10, 15, 20, 25 and 30 A
• Utilisation category: AC22A (IEC 60947-3) and AC32A (IEC 60947-6)
• Conditional short-circuit current: 5 kA
• Electrical life: 25,000 electrical operations
• Power consumption: under 0.2 VA on mains and 15 VA during generator operation
• Protection: IP20
• Item codes: 15 codes, one per rating (GMC30SP005 to GMC30SP300)

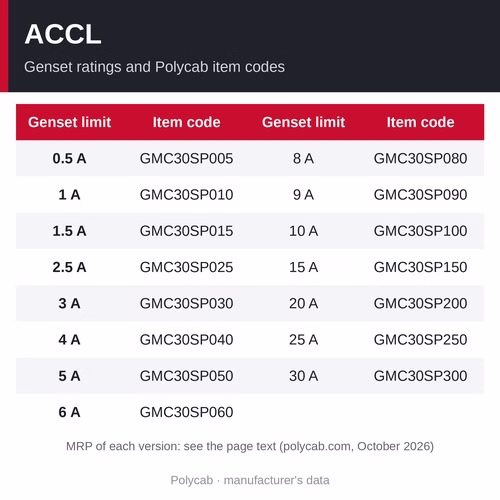

Genset ratings, item codes and MRP

• 0.5 A genset limit: item code GMC30SP005 - MRP Rs 3,105
• 1 A genset limit: item code GMC30SP010 - MRP Rs 3,105
• 1.5 A genset limit: item code GMC30SP015 - MRP Rs 3,105
• 2.5 A genset limit: item code GMC30SP025 - MRP Rs 3,105
• 3 A genset limit: item code GMC30SP030 - MRP Rs 3,105
• 4 A genset limit: item code GMC30SP040 - MRP Rs 3,105
• 5 A genset limit: item code GMC30SP050 - MRP Rs 3,105
• 6 A genset limit: item code GMC30SP060 - MRP Rs 3,105
• 8 A genset limit: item code GMC30SP080 - MRP Rs 3,105
• 9 A genset limit: item code GMC30SP090 - MRP Rs 3,105
• 10 A genset limit: item code GMC30SP100 - MRP Rs 3,105
• 15 A genset limit: item code GMC30SP150 - MRP Rs 3,105
• 20 A genset limit: item code GMC30SP200 - MRP Rs 3,105
• 25 A genset limit: item code GMC30SP250 - MRP Rs 3,105
• 30 A genset limit: item code GMC30SP300 - MRP Rs 3,105
• MRP basis: MRPs as listed on polycab.com, October 2026, inclusive of taxes; the selling price is confirmed on enquiry

Why choose the Polycab ACCL

• Contactor-based design with break-before-make changeover and a higher air gap
• Overload indication on the generator side by LED and beep
• Auto reset
• Long life - 25,000 electrical operations
• Low power consumption - under 0.2 VA on mains and 15 VA during generator operation
• Utilisation category AC22A (IEC 60947-3) and AC32A (IEC 60947-6)
• Conditional short-circuit current 5 kA
• IP20 protection and fire-retardant body
• Compact design

How it works and how to choose

How it works. While the mains is on, the flat runs on the mains up to 30 A. When the mains fails, the ACCL switches to the generator supply automatically and lets the flat draw only the generator current allotted to it; when the mains returns, it switches back.

Choosing the genset limit. Order the rating equal to the generator current your society or building allots to you. As a rough guide, at 230 V each ampere is about 230 W of load - 1 A runs a few lights and fans, 5 A also runs a refrigerator and a television.

Overload. Polycab describes the ACCL as limiting the current on the generator side to the set rating; an overload on the generator side is indicated by an LED and a beep, and the unit has an auto-reset facility. Ask us for the exact cut-off and reconnection behaviour of the rating you order.

Installation. It is fitted with the flat's distribution board, with the mains and generator supplies brought to it by an electrician.

Where it is used

• flats in apartments and housing societies with a common generator
• shops in malls and complexes with a shared DG set
• offices, clinics and hostels on a common generator supply

Polycab changeover switches

• Polycab DP MCB Changeover Switch - manual changeover, 25 A to 63 A, MRP Rs 1,233 - 2,070
• Polycab FP MCB Changeover Switch - manual changeover, 25 A to 63 A, MRP Rs 2,489 - 4,190

Related products

• Polycab 10kA C-Curve DP MCB - incomer protection for the flat
• Polycab DP RCCB 30 mA - earth-leakage protection
• Polycab SPN double-door distribution board
• All Polycab switchgear

Frequently asked questions

What does an ACCL do?

It changes a single-phase supply over from the mains to the generator automatically when the mains fails, and limits the current drawn from the generator to the rating you choose. When the mains returns it switches back.

Which genset rating should I choose?

The generator current allotted to your flat or shop by the society or building. Polycab makes the ACCL for 0.5, 1, 1.5, 2.5, 3, 4, 5, 6, 8, 9, 10, 15, 20, 25 and 30 A.

What happens if I use more than my generator limit?

The ACCL limits the current on the generator side to the rating you chose; it indicates the overload with an LED and a beep and has an auto-reset facility (Polycab). We can confirm the exact behaviour for your rating.

Is the price different for each rating?

No - every genset rating has the same MRP, Rs 3,105 per piece (polycab.com, October 2026).

What is the difference between an ACCL and an MCB changeover switch?

The ACCL changes over automatically and limits generator current. An MCB changeover switch is operated by hand and has no current limit.

Where can I buy the Polycab ACCL in Chhattisgarh?

From Jai Enterprises, Bhilai and Raipur, which supplies Polycab switchgear all over Chhattisgarh - Korba, Bilaspur, Raigarh, Jagdalpur, Kanker, Ambikapur and every other district - and across India. Call +91 9340081159 with the rating, quantity and delivery location and we will confirm the price, stock and lead time.

How to order

Supplied by Jai Enterprises, Bhilai and Raipur, to every district of Chhattisgarh and across India. Polycab lists the ACCL at MRP Rs 3,105 per piece (polycab.com, October 2026, inclusive of taxes). Call +91 9340081159 or send an enquiry from this page with the rating, the quantity (pieces) and the delivery location, and we will confirm the selling price, stock and lead time.
