HEX HEXPRESS HY-1000 Crimping Dies – R-11 to R-29, for the HEXPRESS HY-1000, 120 to 1000 sq mm

Dies R-11 to R-29, listed in three groups (R-11 to R-14, R-15 to R-18 and R-19 to R-29), for the HEXPRESS HY-1000 (120 to 1000 sq mm). HEXPRESS HY-1000 dies are the dies that fit the HEXPRESS HY-1000; each die number is matched to one lug size, so the barrel is compressed to the same shape and depth on every joint. Order the die numbers for the lug sizes you crimp. Die number R-8 does not exist for any HEXPRESS tool. Price on request.

HEXPRESS is the crimping-tool range of HEX - the brand of Brass Copper & Alloy (I) Ltd., Mumbai, an ISO 9001 company - sold alongside the HEX cable lugs, terminals and ferrules it is sized to crimp. The dies are made for HEX copper tubular lugs and aluminium lugs of the sizes in the tool's range.

Is this the right one for you?

Check these four things before you order:

• You own or are ordering the HEXPRESS HY-1000.
• The lug sizes you crimp are within 120 to 1000 sq mm.
• You know the die numbers you need (R-11 to R-29) - or tell us the lug sizes and we will match them.
• You want a spare set, or sizes the tool was not supplied with.

At a glance

• Price: Request price
• For tool: HEXPRESS HY-1000
• Die numbers: R-11 to R-29, listed in three groups (R-11 to R-14, R-15 to R-18 and R-19 to R-29)
• Covers: 120 to 1000 sq mm
• Note: Die number R-8 does not exist for any HEXPRESS tool.

Specifications

• Product: HEXPRESS HY-1000 dies
• For tool: HEXPRESS HY-1000
• Die numbers: R-11 to R-29, listed in three groups (R-11 to R-14, R-15 to R-18 and R-19 to R-29)
• Covers: 120 to 1000 sq mm
• Ordered: by die number, one for each lug size

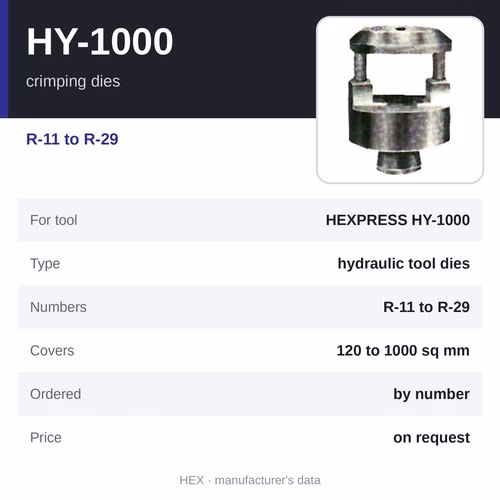

• Form: two matching halves, as pictured
• Note: Die number R-8 does not exist for any HEXPRESS tool.
• Brand: HEX (HEXPRESS range)

Why order HEXPRESS HY-1000 dies

• One die per lug size - a repeatable compression
• Listed in three groups of die numbers, covering 120 to 1000 sq mm
• Numbered R-11 to R-29 so re-ordering is simple
• Made for HEX lugs and the HEXPRESS tool

How they are used

1. Pick the die number for the lug size (tell us the lug size if you are unsure).
2. Fit the die halves in the HEXPRESS HY-1000 head.
3. Place the lug barrel between the die halves and crimp; change the die only to change size.
4. Keep the set together and clean - a damaged die face marks every crimp.

Where it is used

• Replacement and additional dies for HEXPRESS crimping tools
• Extending a tool to new lug sizes
• Panel shops and contractors keeping a full die set
• Utility and industrial cable termination

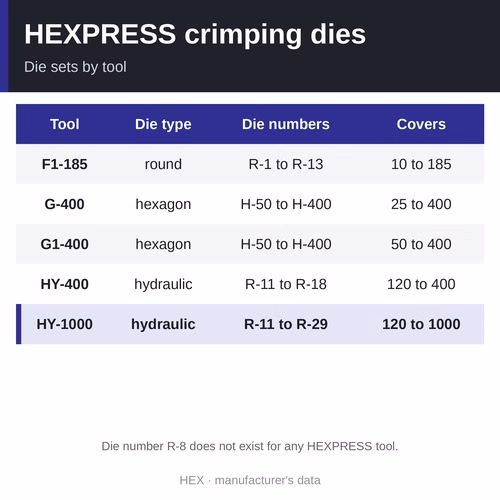

Dies for the other HEXPRESS tools

The HEX crimping dies overview page compares all 5 side by side.

• HEXPRESS F1-185 round-profile dies - round-profile dies R-1 to R-13, for 10 to 185 sq mm - price on request
• HEXPRESS G-400 hexagon-profile dies - hexagon-profile dies H-50 to H-400, for 25 to 400 sq mm - price on request
• HEXPRESS G1-400 hexagon-profile dies - hexagon-profile dies H-50 to H-400, for 50 to 400 sq mm - price on request
• HEXPRESS HY-400 dies - dies R-11 to R-18, for 120 to 400 sq mm - price on request
• HEXPRESS HY-1000 dies - dies R-11 to R-29, for 120 to 1000 sq mm - price on request (this page)

Related products

• HEXPRESS HY-1000 - the tool these dies fit
• HEXPRESS hydraulic crimping tools - hand, foot and remote-head hydraulic tools, 10 to 1000 sq mm
• HEX copper tubular cable lugs - UL listed, 1.5 to 1000 sq mm
• All crimping tools

Frequently asked questions

Which tool do these dies fit?

The HEXPRESS HY-1000, which crimps 120 to 1000 sq mm.

How do I know which die number I need?

Each number corresponds to one lug size; send us the lug sizes (or the HEX lug codes) and we will list the die numbers.

Is there a die R-8?

No - HEX states that die number R-8 does not exist for any HEXPRESS tool.

How are the dies ordered?

By die number, one for each lug size you crimp.

Where can I buy HEXPRESS HY-1000 dies in India?

From Jai Enterprises, Bhilai and Raipur, Chhattisgarh, which supplies HEXPRESS crimping tools across India. Call +91 9340081159 with the model, quantity and delivery location and we will confirm the price, availability and lead time.

How to order

Supplied by Jai Enterprises, Bhilai and Raipur, Chhattisgarh, to sites across India. To request a price for HEXPRESS HY-1000 dies, call +91 9340081159 or send an enquiry from this page with the quantity and delivery location, and we will confirm availability, lead time and the right die for the job.
