HEX HEXPRESS Crimping Dies – Die Sets for the F1-185, G-400, G1-400, HY-400 and HY-1000 Crimping Tools

HEXPRESS crimping dies are the numbered dies that fit the die-type HEXPRESS tools. Each die number is matched to one lug size, which is what makes a compression crimp repeatable: the same shape and depth on every joint. HEXPRESS is the crimping-tool range of HEX - the brand of Brass Copper & Alloy (I) Ltd., Mumbai, an ISO 9001 company - sold alongside the HEX cable lugs, terminals and ferrules it is sized to crimp.

Five sets are listed: round-profile dies R-1 to R-13 for the F1-185 (the hexagon-die F1-185 takes hexagon dies of the same numbers), hexagon dies H-50 to H-400 for the G-400 and G1-400, and dies R-11 to R-18 and R-11 to R-29 for the hydraulic HY-400 and HY-1000. Die number R-8 does not exist for any HEXPRESS tool. Prices are on request.

Choose dies by tool

All die sets are supplied at a price on request, by die number.

• HEXPRESS F1-185 round-profile dies - round-profile dies R-1 to R-13, for 10 to 185 sq mm - price on request
• HEXPRESS G-400 hexagon-profile dies - hexagon-profile dies H-50 to H-400, for 25 to 400 sq mm - price on request
• HEXPRESS G1-400 hexagon-profile dies - hexagon-profile dies H-50 to H-400, for 50 to 400 sq mm - price on request
• HEXPRESS HY-400 dies - dies R-11 to R-18, for 120 to 400 sq mm - price on request
• HEXPRESS HY-1000 dies - dies R-11 to R-29, for 120 to 1000 sq mm - price on request

How to choose

Start from the tool, then the lug size. Send us the lug sizes or HEX lug codes you crimp and we will list the die numbers; dies belong to their own tool (round and hexagon profiles are not interchangeable), so state which tool the dies are for.

At a glance

• Die sets: F1-185 round, G-400 hexagon, G1-400 hexagon, HY-400, HY-1000
• Numbering: R-1 to R-29 and H-50 to H-400
• Covers: 10 to 1000 sq mm
• Note: Die number R-8 does not exist for any HEXPRESS tool.
• Price: on request

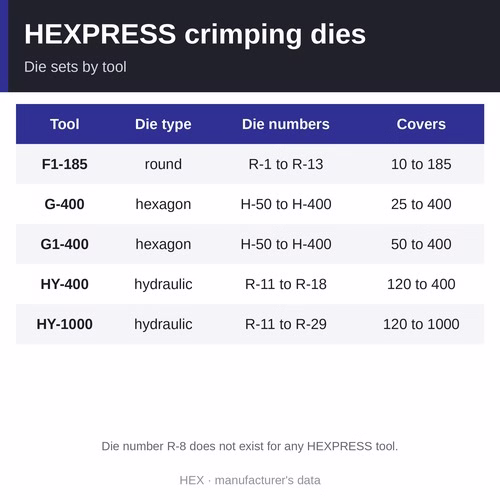

The sets at a glance

• HEXPRESS F1-185 round-profile dies: round profile, R-1 to R-13, 10 to 185 sq mm
• HEXPRESS G-400 hexagon-profile dies: hexagon profile, H-50 to H-400, 25 to 400 sq mm
• HEXPRESS G1-400 hexagon-profile dies: hexagon profile, H-50 to H-400, 50 to 400 sq mm
• HEXPRESS HY-400 dies: R-11 to R-18, listed in two groups (R-11 to R-15 and R-16 to R-18), 120 to 400 sq mm
• HEXPRESS HY-1000 dies: R-11 to R-29, listed in three groups (R-11 to R-14, R-15 to R-18 and R-19 to R-29), 120 to 1000 sq mm

Why keep a full die set

• One die per lug size - a repeatable compression
• Numbered sets make re-ordering simple
• Round or hexagon to suit the hand tool
• Made for HEX lugs and HEXPRESS tools

How they are used

1. Choose the die number for the lug size.

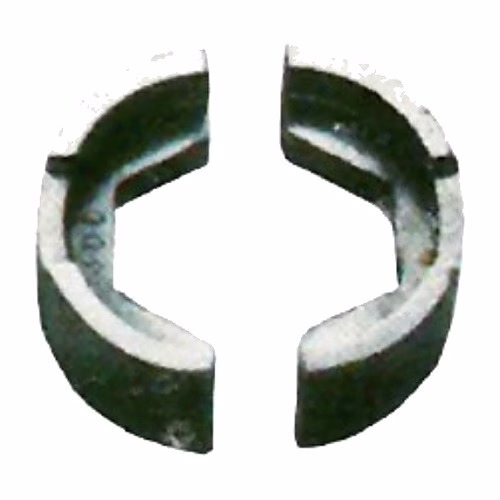

2. Fit the die halves in the tool head.
3. Crimp, and change the die only to change size.

Where it is used

• Replacement and additional dies for HEXPRESS crimping tools
• Extending a tool to new lug sizes
• Panel shops and contractors keeping a full die set
• Utility and industrial cable termination

Related products

• HEXPRESS hand crimping tools - mechanical tools for cable lugs, 0.5 to 400 sq mm
• HEXPRESS hydraulic crimping tools - hand, foot and remote-head hydraulic tools, 10 to 1000 sq mm
• HEX copper tubular cable lugs - UL listed, 1.5 to 1000 sq mm
• HEX long-barrel aluminium lugs for XLPE cable - 25 to 1000 sq mm
• All crimping tools

Frequently asked questions

Which dies fit which tool?

F1-185: round (or hexagon) dies R-1 to R-13. G-400 and G1-400: hexagon dies H-50 to H-400 (HEX also lists R-11 to R-18 for the G1-400). HY-400: R-11 to R-18. HY-1000: R-11 to R-29.

Why is there no R-8?

HEX states that die number R-8 does not exist for any HEXPRESS tool - the numbering simply skips it.

Can round and hexagon dies be swapped?

No - each die set belongs to its tool; the F1-185 is offered as a round-die or a hexagon-die tool.

How do I find the die for a lug?

Tell us the lug size or HEX code and the tool, and we will confirm the die number.

Where can I buy HEXPRESS crimping dies in India?

From Jai Enterprises, Bhilai and Raipur, Chhattisgarh, which supplies HEXPRESS crimping tools across India. Call +91 9340081159 with the model, quantity and delivery location and we will confirm the price, availability and lead time.

How to order

Supplied by Jai Enterprises, Bhilai and Raipur, Chhattisgarh, to sites across India. Pick the size from the list above, then call +91 9340081159 or send an enquiry with the model, quantity and delivery location - we will confirm stock, lead time and the delivered cost of the dies.
