HEX Crimping Type Copper Tubular Cable Lugs – UL Listed, 1.5 to 1000 sq mm

HEX crimping type copper tubular cable terminal ends are the standard copper lugs for terminating power cables to equipment or for earthing. They are made from high-conductivity electrolytic copper tube (minimum 97% IACS), electro-tinned against corrosion, with an inspection hole to check that the conductor is fully inserted before crimping. Sizes up to 500 sq mm are UL listed to UL 486A-486B. Made by HEX, the brand of Brass Copper & Alloy (I) Ltd., Mumbai — an ISO 9001 company whose products are tested by CPRI (India), UL (USA), KEMA (Netherlands) and SIRIM (Malaysia).

At a glance

• Range: 1.5 to 1000 sq mm
• Stud holes: 4.2 to 21 mm, and blank palm (BL) from 240 sq mm
• Listing: UL 486A-486B and CSA C22.2 No. 65 (1.5–500 sq mm; 630–1000 not UL listed)
• Material / finish: E-copper, 97% IACS min.; electro-tinned
• Codes: HT <sq mm>-<stud hole>, e.g. HT 95-10
• Tolerance: as per UL FUS

Why choose HEX tubular lugs

• UL listed — copper lugs and connectors listed under UL certificate 20161017-E307140 to UL 486A-486B and CSA C22.2 No. 65-13.
• High conductivity — E-copper of at least 97% IACS, electro-tinned to IS 1359.
• Inspection hole shows the conductor is fully home before crimping.
• The widest range — 1.5 to 1000 sq mm with a choice of stud holes on every size.
• Type-tested — HEX copper lugs have also been tested by SABS (IEC 1238) and CPRI.

Specifications

• 1.5 and 2.5 sq mm: stud 4.2, 5.2, 6.5, 8.4 mm
• 4 and 6 sq mm: stud 4.2, 5.2, 6.5, 8.4, 10.5 mm
• 10 sq mm: stud 5.2, 6.5, 8.4, 10.5, 13 mm
• 16 sq mm: stud 5.2, 6.5, 8.4, 10.5, 13, 17 mm
• 20 sq mm: stud 8.4 mm
• 25 and 35 sq mm: stud 6.5, 8.4, 10.5, 13, 17 mm
• 50 sq mm: stud 6.5, 8.4, 10.5, 13, 14.5, 17, 21 mm
• 70 to 120 sq mm: stud 8.4, 10.5, 13, 14.5, 17, 21 mm
• 150 sq mm: stud 8.4, 10.5, 13, 14.7, 17, 21 mm
• 185 sq mm: stud 10.5, 13, 14.7, 17, 21 mm
• 240 and 300 sq mm: stud 10.5, 13, 14.7, 17, 21 mm, or blank
• 400 sq mm: stud 13, 14.7, 17, 21 mm, or blank
• 500 and 630 sq mm: stud 14.7, 17, 21 mm, or blank

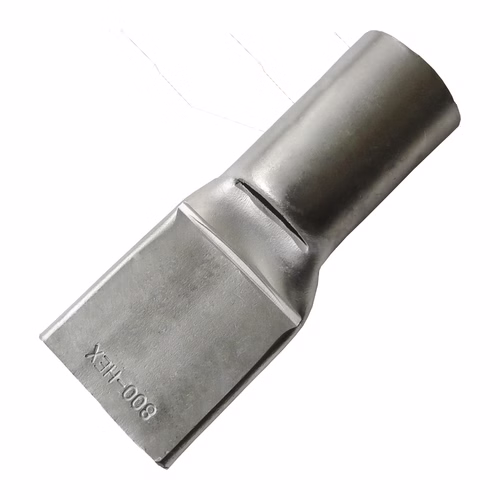

• 800 and 1000 sq mm: blank palm

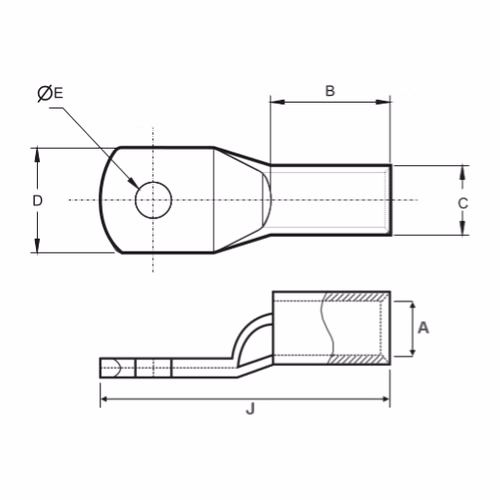

• Barrel bore (A): from 1.8 mm (1.5 sq mm) to 43 mm (1000 sq mm)
• Overall length (J): from 17 mm to 200 mm
• Material: E-copper (electrolytic copper), minimum 97% IACS conductivity to IS 191
• Finish: electro-tinned to IS 1359

Where it is used

• Power cable terminations in switchgear, transformers, motors and circuit breakers
• Control panels, distribution boards and MCCs
• Generation, transmission and distribution by electricity boards
• Refineries, steel, cement, mining, shipping and railway installations

Which HEX copper lug do I need?

• Standard UL-listed tubular lugs (this page) — the general-purpose copper lug, 1.5–1000 mm², with inspection hole.
• Economy range — the same job for 35–1000 mm² where a lighter lug is acceptable.
• Bell mouth — flared entry for fast insertion of flexible or fine-stranded conductors.
• Without inspection hole — sealed barrel for damp or outdoor locations.
• Long barrel, 2-hole or 4-hole — longer crimp or anti-rotation palm for heavy terminations.
• 33 kV terminals — for HV cable terminations.

Related products

• HEX copper in-line connectors
• HEX two-hole copper lugs
• HEX bimetallic lugs for aluminium cable
• HEX bell mouth copper lugs

Frequently asked questions

Are HEX copper lugs UL listed?

Yes — the crimping type copper tubular terminal ends are UL listed from 1.5 to 500 sq mm (UL 486A-486B, CSA C22.2 No. 65); the 630, 800 and 1000 sq mm sizes are not UL listed.

How do I read the product code?

HT, then the cable size in sq mm, then the stud hole in mm — for example HT 95-10 is a 95 sq mm lug with a 10.5 mm hole. BL means a blank palm to be drilled on site.

What is the copper quality?

Electrolytic copper with a minimum of 97% IACS conductivity to IS 191, electro-tinned to IS 1359.

Why is there an inspection hole?

To see that the conductor is pushed fully into the barrel before crimping.

How should the lug be crimped?

Use a crimping tool and die matched to the cable size, and crimp from the palm end towards the barrel end.
