HEX Snap-On (Quick-Disconnect) Terminals – Male & Female, Insulated or Bare, 1.5 to 6 sq mm

HEX snap-on terminals are push-on quick-disconnect connectors: a female receptacle slides onto a male tab to make a connection that can be separated without tools. They are E-copper, electro-tinned, from 1.5 to 6 sq mm, supplied bare or insulated with colour-coded sleeves. Made by HEX, the brand of Brass Copper & Alloy (I) Ltd., Mumbai — an ISO 9001 company whose products are tested by CPRI (India), UL (USA), KEMA (Netherlands) and SIRIM (Malaysia).

At a glance

• Female (HSP-83xx/84xx): 1.5, 2.5, 4–6 sq mm; width D 6.6 mm
• Male (HSP-83xx/84xx): 1.5, 2.5, 4–6 sq mm; tab width D 6.4 mm
• Insulated: add (I) to the code
• Colour code: colour-coded sleeves: 1.5 sq mm red, 2.5 sq mm blue, 4–6 sq mm yellow
• Material: E-copper (electrolytic copper), minimum 97% IACS conductivity to IS 191
• Finish: electro-tinned to IS 1359

Why snap-on terminals

• Tool-free disconnection for testing and replacement.
• Male and female in matching sizes.
• Insulated or bare to suit the application.

Specifications

• Female: HSP-8351 (1.5 sq mm), HSP-8349 (2.5), HSP-8451 (4–6); insulated versions HSP-8351 (I), 8349 (I), 8451 (I)

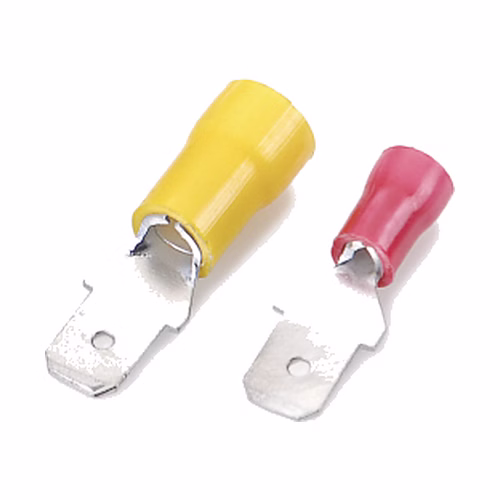

• Male: HSP-8362 (1.5 sq mm), HSP-8363 (2.5), HSP-8463 (4–6); insulated versions with (I)

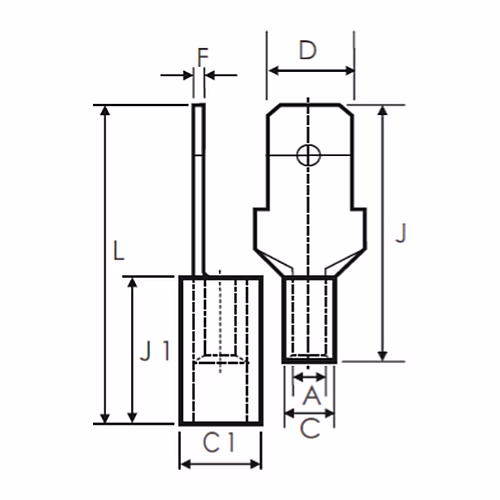

• Lengths: female J 16–19 mm; male J 20 mm
• Material: E-copper (electrolytic copper), minimum 97% IACS conductivity to IS 191
• Finish: electro-tinned to IS 1359

Where it is used

• Appliances, heaters and fans
• Control gear and switches with tab terminals
• Automotive and equipment wiring

Which small terminal do I need?

• Ring — the most secure; cannot slip off the stud even if the screw loosens.
• Fork / spade — quick to fit and remove without taking the screw out.
• Pin and blade — for tunnel and clamp-type terminal blocks.
• End-sealing ferrules — for fine-stranded wire in spring and screw terminals.
• Snap-on (this page) — push-on quick-disconnect tabs.
• Insulated butt connectors — for joining two wires.

Related products

• HEX fork terminals
• HEX ring terminals
• HEX insulated in-line connectors

Frequently asked questions

What is a snap-on terminal?

A push-on quick-disconnect connector: a female receptacle on one wire slides onto a male tab.

Which wire sizes?

1.5, 2.5 and 4–6 sq mm.

How do I order the insulated version?

Add (I) to the code, e.g. HSP-8349 (I).

Where can I buy HEX cable lugs in India?

From Jai Enterprises, which supplies HEX cable lugs, terminals and connectors across India from Bhilai and Raipur, Chhattisgarh. Call +91 9340081159 with the product codes or cable sizes and quantities.
