HEX End-Sealing Ferrules (Bootlace) – Non-Insulated, Insulated & Twin, 0.5 to 120 sq mm

HEX end-sealing ferrules (also called bootlace ferrules or cord-end terminals) are crimped onto the end of fine-stranded wire so that every strand is held together inside a screw or spring terminal. HEX makes non-insulated ferrules from 0.5 to 120 sq mm, insulated ferrules from 0.5 to 50 sq mm with a colour-coded collar, and twin ferrules that take two wires in one terminal. All are E-copper, electro-tinned. Made by HEX, the brand of Brass Copper & Alloy (I) Ltd., Mumbai — an ISO 9001 company whose products are tested by CPRI (India), UL (USA), KEMA (Netherlands) and SIRIM (Malaysia).

At a glance

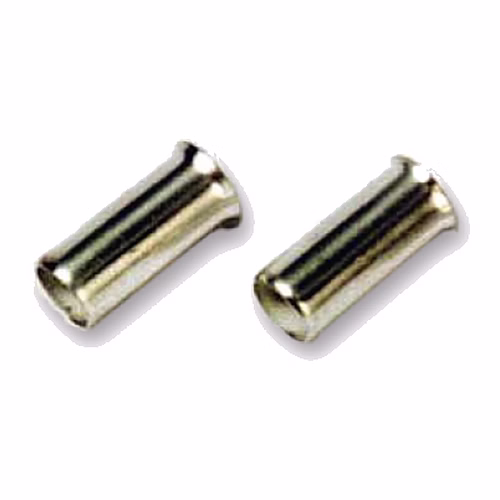

• Non-insulated (HSF): 0.5 to 120 sq mm, lengths 6–34 mm
• Insulated (HE): 0.5 to 50 sq mm, colour-coded collars

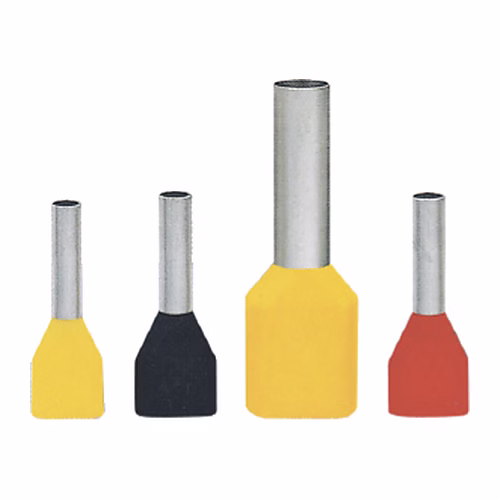

• Twin (HTSFI): 2 × 0.5 to 2 × 16 sq mm
• Material: E-copper (electrolytic copper), minimum 97% IACS conductivity to IS 191
• Finish: electro-tinned to IS 1359

Why use ferrules

• No stray strands — a neat, reliable connection in screw and spring terminals.
• Colour-coded collars identify the wire size.
• Twin ferrules land two wires in one terminal.
• Choice of lengths per wire size.

Specifications

• Non-insulated HSF: 0.5 (HSF-508), 0.75 (509), 1 (510, 511), 1.5 (512, 513), 2.5 (514, 515), 4 (516, 517), 6 (518–520), 10 (521–523), 16 (524–526), 25 (527–531), 35 (532–535), 50 (536–539), 70 (540–542), 95 (543–545), 120 sq mm (546–548)
• Insulated HE — collar colours: 0.5 white · 0.75 blue · 1.0 red · 1.5 black · 2.5 grey · 4 orange · 6 green · 10 brown · 16 white · 25 brown · 35 white · 50 olive
• Insulated HE — pin lengths: e.g. 1.5 sq mm: 8, 10, 12, 18 mm (HE-1508 to HE-1518)

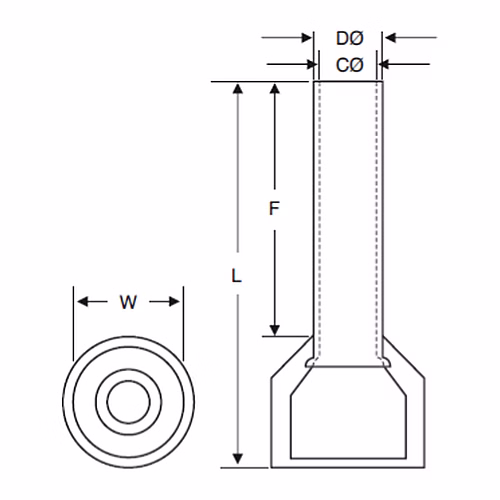

• Twin HTSFI: 2 × 0.5 (white), 2 × 0.75 (white/grey), 2 × 1.0 (grey), 2 × 1.5 (grey), 2 × 2.5 (grey/blue), 2 × 4 (grey), 2 × 6 (yellow), 2 × 10 (red), 2 × 16 sq mm (blue)
• Material: E-copper (electrolytic copper), minimum 97% IACS conductivity to IS 191
• Finish: electro-tinned to IS 1359

Where it is used

• Control panels, PLC and drive wiring
• Spring-clamp and screw terminal blocks
• Machine and instrument wiring with flexible cable

Which small terminal do I need?

• Ring — the most secure; cannot slip off the stud even if the screw loosens.
• Fork / spade — quick to fit and remove without taking the screw out.
• Pin and blade — for tunnel and clamp-type terminal blocks.
• End-sealing ferrules (this page) — for fine-stranded wire in spring and screw terminals.
• Snap-on — push-on quick-disconnect tabs.
• Insulated butt connectors — for joining two wires.

Related products

• HEX pin and blade terminals
• HEX ring terminals
• HEX insulated in-line connectors

Frequently asked questions

What is a bootlace ferrule?

A small tube crimped onto the end of stranded wire so the strands stay together in a terminal — HEX calls them end-sealing ferrules.

Insulated or non-insulated?

Insulated ferrules have a colour-coded plastic collar that guides the wire in and identifies its size; non-insulated ones are bare tinned copper.

What is a twin ferrule?

A ferrule that takes two wires into one terminal — HEX makes them from 2 × 0.5 to 2 × 16 sq mm.

Where can I buy HEX cable lugs in India?

From Jai Enterprises, which supplies HEX cable lugs, terminals and connectors across India from Bhilai and Raipur, Chhattisgarh. Call +91 9340081159 with the product codes or cable sizes and quantities.

How to order

Supplied by Jai Enterprises, despatched from Bhilai and Raipur, Chhattisgarh, to sites across India. To request a price, call +91 9340081159 or send an enquiry from this page with your quantity and site details, and we will confirm availability, lead time and the right model for the job.
