HEX Fork (Spade) Type Tinned Copper Terminals – Insulated & Non-Insulated, 1.5 to 10 sq mm

HEX fork type tinned copper cable terminal ends are quick to use: the screw can be left partly in when the terminal is fitted or removed, which saves time on large jobs. They are high-conductivity copper, electro-tinned, in non-insulated and PVC-insulated versions from 1.5 to 10 sq mm, with colour-coded sleeves. Made by HEX, the brand of Brass Copper & Alloy (I) Ltd., Mumbai — an ISO 9001 company whose products are tested by CPRI (India), UL (USA), KEMA (Netherlands) and SIRIM (Malaysia).

At a glance

• Range: 1.5 to 10 sq mm
• Stud widths: 3 to 8.2 mm

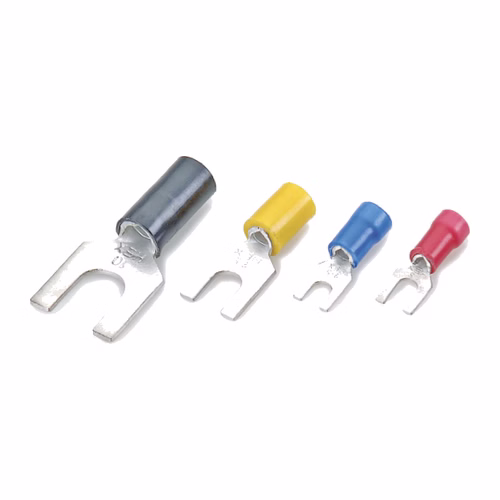

• Colour code: 1.5 red, 2.5 blue, 4–6 yellow, 10 black
• Codes: HF (non-insulated), HFI (insulated)
• Material: E-copper (electrolytic copper), minimum 97% IACS conductivity to IS 191
• Finish: electro-tinned to IS 1359

Why fork terminals

• Fast fitting — no need to remove the screw.
• Colour-coded by wire size.
• Insulated or bare versions.

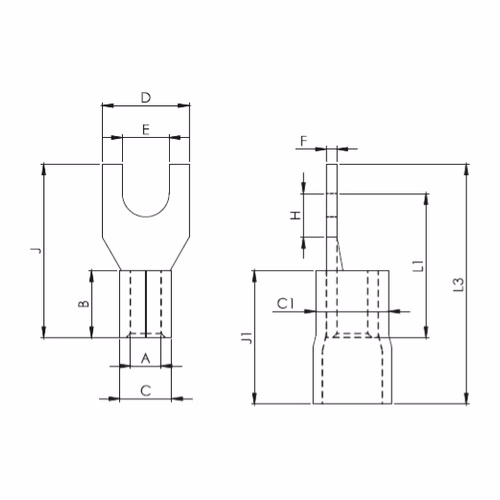

Specifications

• 1.5 sq mm: stud 5.1, 3.5, 3 mm — HF-7214, HF-7249, HF-7250; HFI-7925, 7926, 7927
• 2.5 sq mm: stud 3.5, 5 mm — HF-7251, HF-7280; HFI-7928, 7929
• 4–6 sq mm: stud 3.1, 3.5 mm — HF-7252, HF-7253; HFI-7930, 7931
• 10 sq mm: stud 6.5, 8.2 mm — HF-7254, HF-7255; HFI-7932, 7933
• Material: E-copper (electrolytic copper), minimum 97% IACS conductivity to IS 191
• Finish: electro-tinned to IS 1359

Where it is used

• Terminal strips in control panels
• Appliance and equipment wiring
• Maintenance-heavy connections that are changed often

Which small terminal do I need?

• Ring — the most secure; cannot slip off the stud even if the screw loosens.
• Fork / spade (this page) — quick to fit and remove without taking the screw out.
• Pin and blade — for tunnel and clamp-type terminal blocks.
• End-sealing ferrules — for fine-stranded wire in spring and screw terminals.
• Snap-on — push-on quick-disconnect tabs.
• Insulated butt connectors — for joining two wires.

Related products

• HEX ring terminals
• HEX pin and blade terminals
• HEX snap-on terminals

Frequently asked questions

What is the advantage of a fork terminal?

It can be fitted or removed with the screw left partly in, which is faster on large jobs.

What colours are used?

Red 1.5, blue 2.5, yellow 4–6 and black 10 sq mm.

Fork or ring?

Use a ring terminal where vibration could loosen the screw; a fork is quicker to fit and remove.

Where can I buy HEX cable lugs in India?

From Jai Enterprises, which supplies HEX cable lugs, terminals and connectors across India from Bhilai and Raipur, Chhattisgarh. Call +91 9340081159 with the product codes or cable sizes and quantities.
