HEX Split Bolt Connectors & Line Taps – Brass, 6 to 500 sq mm, Plus Round-Head Split Bolts

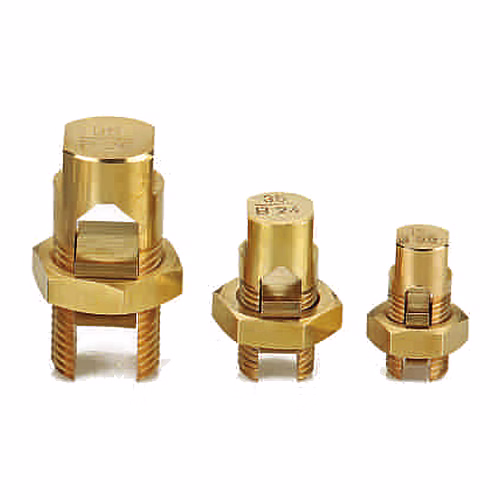

HEX line taps / split bolts join or tap conductors with a single bolt: the conductors lie in the slot of the bolt and the nut clamps them together through a pressure pad. They are made from high-tensile brass to BS 2874 CZ112; threads are rolled, giving the nut extra clamping force, and the pressure pads are extruded rather than cast, so they do not crack. Standard finish is passivated natural brass, with electro-tinned and high-conductivity copper versions. HEX also makes round-head split bolts in copper alloy with a captive saddle, for aerial hard-drawn or insulated copper conductors. Made by HEX, the brand of Brass Copper & Alloy (I) Ltd., Mumbai — an ISO 9001 company whose products are tested by CPRI (India), UL (USA), KEMA (Netherlands) and SIRIM (Malaysia).

At a glance

• Line taps (HSBC): 6 to 500 sq mm
• Material: high-tensile brass BS 2874 CZ112; also high-conductivity copper
• Finish: passivated natural brass; electro-tinned (add T) or copper (add C)
• Round-head split bolts: HSBC12–HSBC28, max conductor 16–185 sq mm, copper alloy, captive saddle
• Temperature: -55 °C to 100 °C (round-head type)

Why HEX split bolts

• Rolled threads for extra clamping force.
• Extruded pressure pads that do not crack like cast ones.
• Three finishes to match copper, tinned or brass hardware.
• Captive saddle on round-head bolts spreads the pressure on the conductors.

Specifications

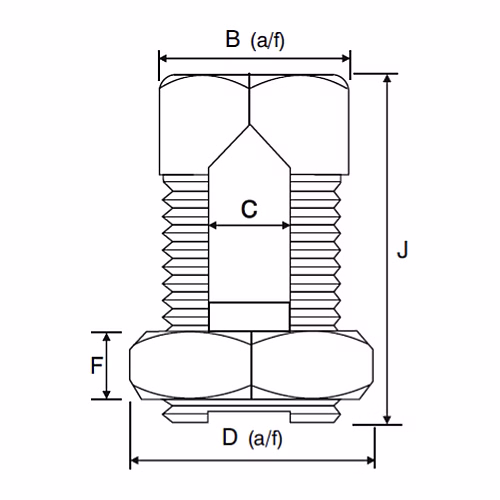

• Line taps HSBC: HSBC-6, 10, 16, 25, 35, 50, 70, 95, 120, 150, 185, 240, 300, 400, 500 (sq mm); length J 24–80 mm
• Round-head split bolts: HSBC12 / 12T (max 25 sq mm, slot 6.6 mm) · HSBC22 / 22T (16 sq mm, 5.3 mm) · HSBC24 / 24T (35 sq mm, 8.3 mm) · HSBC25 / 25T (70 sq mm, 10.9 mm) · HSBC26 / 26T (95 sq mm, 12.9 mm) · HSBC28 / 28T (185 sq mm, 18.5 mm)
• Round-head material: copper alloy; electro-tin plating 99.7% pure tin on T versions
• Round-head temperature: -55 °C to 100 °C

Where it is used

• Earthing and bonding conductor joints
• Service taps from overhead copper lines
• Lightning-protection conductor joints
• Temporary and permanent parallel joints

Related products

• HEX copper C-type connectors
• HEX T and cross connectors
• HEX mechanical bolted lugs

Frequently asked questions

What is a split bolt used for?

To join or tap two conductors with one bolt, without cutting the main conductor.

What are they made of?

High-tensile brass to BS 2874 CZ112, or high-conductivity copper; round-head types are copper alloy.

How do I order a tinned or copper finish?

Add T for tinned or C for copper after the product code.

Why do rolled threads matter?

Rolling forms stronger threads, giving the nut extra clamping force.
