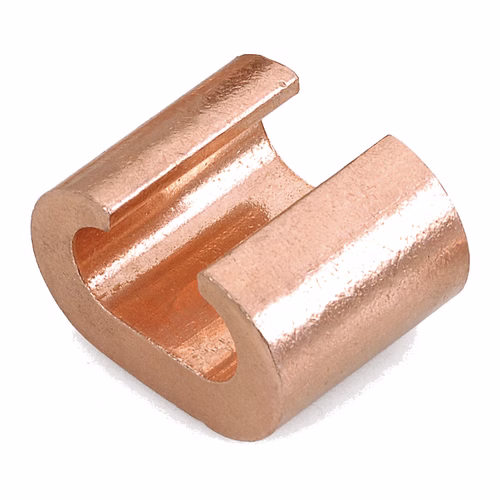

HEX Copper C-Type Connectors – Tap Connectors 6 to 240 sq mm
Compression C-shaped copper connectors for tapping one conductor off another, plain copper or electro-tinned.
Request price
HEX copper C-type connectors (HCC) are C-shaped compression connectors for making tap, parallel or run-to-tap joints between two conductors without cutting the main run — widely used in earthing grids and overhead taps. They are E-copper, supplied plain or electro-tinned. Made by HEX, the brand of Brass Copper & Alloy (I) Ltd., Mumbai — an ISO 9001 company whose products are tested by CPRI (India), UL (USA), KEMA (Netherlands) and SIRIM (Malaysia).
At a glance
- Range: C6-C6 to C240-C240 (run-tap combinations)
- Finish: copper or electro-tinned (add T to the code)
- Material: E-copper
- Tolerance: ± 3%
Why C-type connectors
- No need to cut the main conductor — tap off anywhere on the run.
- Compression joint for low resistance and permanence.
- Plain or tinned to suit the conductors.
Specifications
- Combinations: HCC 6-6, 10-10, 16-16, 16-25, 25-25, 35-35, 50-50, 70-70, 95-95, 120-120, 150-150, 185-185, 240-240

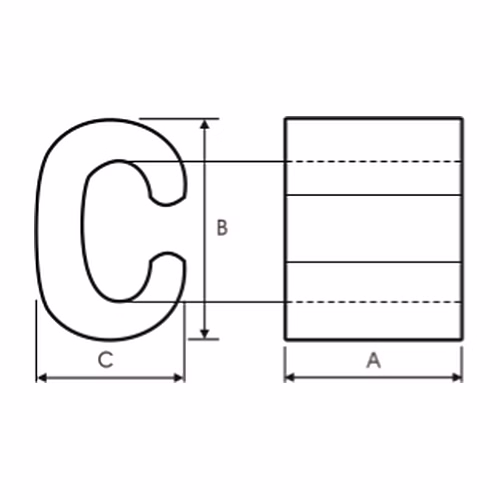

- Dimensions: A 9–33 mm, B 9.8–60 mm, C 6.4–35 mm
- Tinned version: add T after the code
How a C-type connector is installed
The run conductor and the tap conductor are laid side by side inside the C, and the connector is compressed with a crimping tool and die so that it closes tightly around both. Because the run conductor is not cut, taps can be added anywhere along an existing earth conductor or overhead line — which is why C-connectors are the usual choice for earth mats and grid interconnections.
Where it is used
- Earth grid and earth mat interconnections
- Tapping earth continuity conductors
- Overhead and service taps
- Solar plant earthing
Related products
Frequently asked questions
What is a C-type connector used for?
For tap or parallel joints between two conductors — common in earthing grids — without cutting the main conductor.
Is a tinned version available?
Yes — add T after the product code.
Which sizes?
From C6-C6 to C240-C240, including a C16-C25 combination for joining two different sizes.
Do I need a special tool?
Yes — a compression tool with a die suited to the connector size, so the C closes fully around both conductors.
Where can I buy HEX cable lugs in India?
From Jai Enterprises, which supplies HEX cable lugs, terminals and connectors across India from Bhilai and Raipur, Chhattisgarh. Call +91 9340081159 with the product codes or cable sizes and quantities.
How to order
Supplied by Jai Enterprises, despatched from Bhilai and Raipur, Chhattisgarh, to sites across India. To request a price, call +91 9340081159 or send an enquiry from this page with your quantity and site details, and we will confirm availability, lead time and the right model for the job.
Applications
Availability: Enquiry-based — contact us for stock and lead time.
