HEX Copper T-Connectors & Cross Connectors – 1.5 to 240 sq mm

HEX copper T-connectors (HTCW) and cross connectors (HCCW) are tubular crimp connectors for branch (tee) and four-way joints. They are made in E-copper with a copper finish, tinned on request, and also in aluminium on request, from 1.5 to 240 sq mm. Made by HEX, the brand of Brass Copper & Alloy (I) Ltd., Mumbai — an ISO 9001 company whose products are tested by CPRI (India), UL (USA), KEMA (Netherlands) and SIRIM (Malaysia).

At a glance

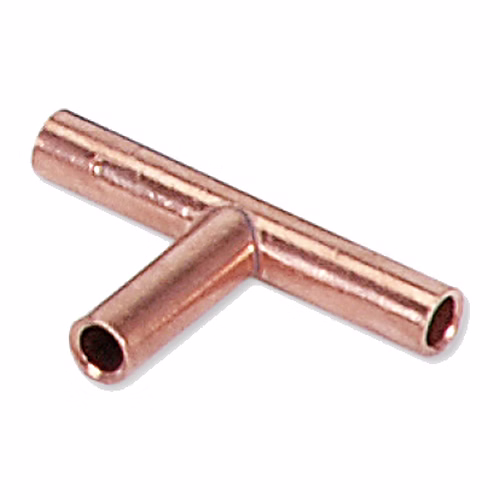

• T-connectors: HTCW-1.5 to HTCW-240

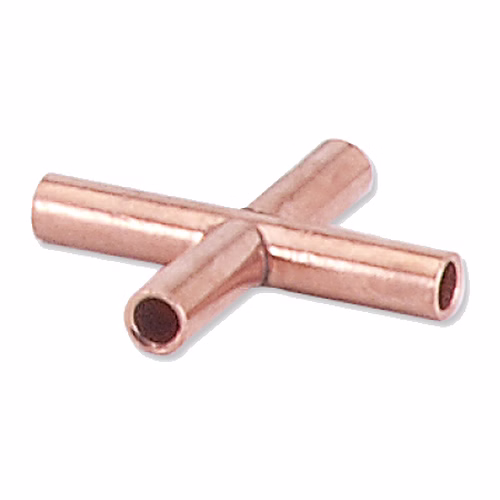

• Cross connectors: HCCW-1.5 to HCCW-240
• Material: E-copper; aluminium on request
• Finish: copper; tinned on request (add T)

Why HEX tee and cross connectors

• Branch or four-way joints in one crimped fitting.
• Standard type in 15 sizes from 1.5 to 240 sq mm.
• Copper, tinned or aluminium to match the conductors.

Specifications

• Sizes: 1.5, 2.5, 4, 6, 10, 16, 25, 35, 50, 70, 95, 120, 150, 185, 240 sq mm

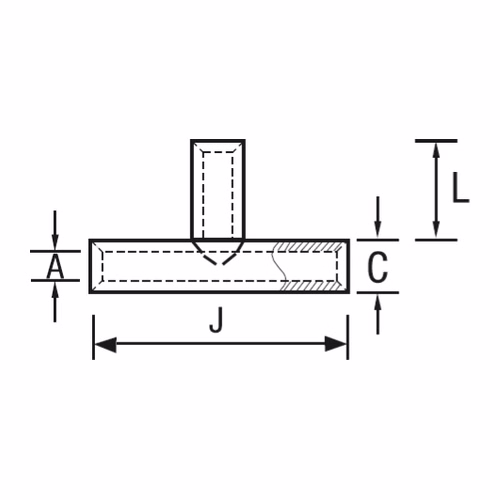

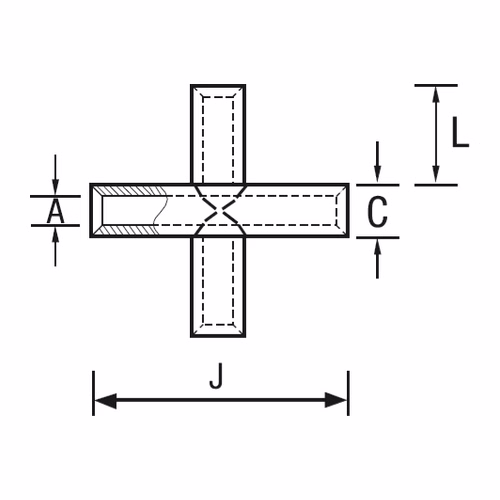

• Bore (A): 1.8 mm to 21 mm
• Overall length (J): 30 mm to 130 mm
• Branch length (L): 12 mm to 52 mm
• Options: tinned (add T); aluminium on request

How tee and cross connectors are used

Each conductor is stripped and pushed into its own tubular branch, and each branch is crimped separately with a tool and die for that size. A T-connector joins three conductors (a run and a branch); a cross connector joins four, making it the natural fitting where two earth conductors cross in a grid.

Where it is used

• Earth mats and grids
• Branch joints in cable networks
• Lightning-protection conductor junctions

Related products

• HEX copper C-type connectors
• HEX copper in-line connectors
• HEX split bolt connectors

Frequently asked questions

What is a cross connector?

A four-way crimp connector joining conductors in a cross; the T-connector joins three in a tee.

Which sizes?

1.5 to 240 sq mm.

Is an aluminium version available?

Yes, on request; tinned copper is also available (add T).

How are they crimped?

Each branch is crimped separately with a tool and die matched to the conductor size.

Where can I buy HEX cable lugs in India?

From Jai Enterprises, which supplies HEX cable lugs, terminals and connectors across India from Bhilai and Raipur, Chhattisgarh. Call +91 9340081159 with the product codes or cable sizes and quantities.

How to order

Supplied by Jai Enterprises, despatched from Bhilai and Raipur, Chhattisgarh, to sites across India. To request a price, call +91 9340081159 or send an enquiry from this page with your quantity and site details, and we will confirm availability, lead time and the right model for the job.
