HEX Copper In-Line Connectors & Crimping Sleeves – Long and Short Barrel, 1.5 to 1000 sq mm

Whenever two cables have to be joined in a straight line, an in-line connector (ferrule) gives a safe, low-resistance joint. HEX copper in-line connectors come in three families: long-barrel connectors (HC), short-barrel connectors (HL — UL listed up to 500 sq mm) and crimping sleeves (HNC) — all E-copper, electro-tinned, from 1.5 to 1000 sq mm. Made by HEX, the brand of Brass Copper & Alloy (I) Ltd., Mumbai — an ISO 9001 company whose products are tested by CPRI (India), UL (USA), KEMA (Netherlands) and SIRIM (Malaysia).

At a glance

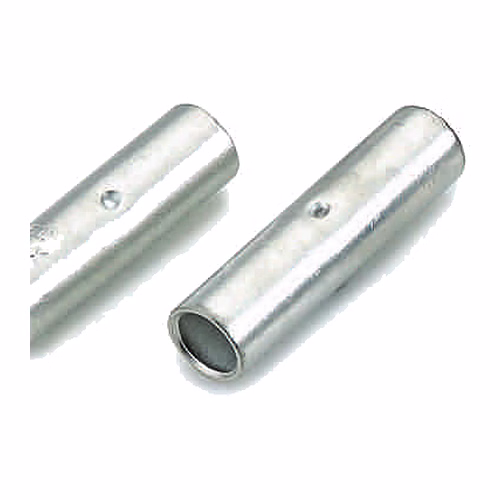

• Long barrel (HC): 1.5 to 1000 sq mm, length 22–230 mm

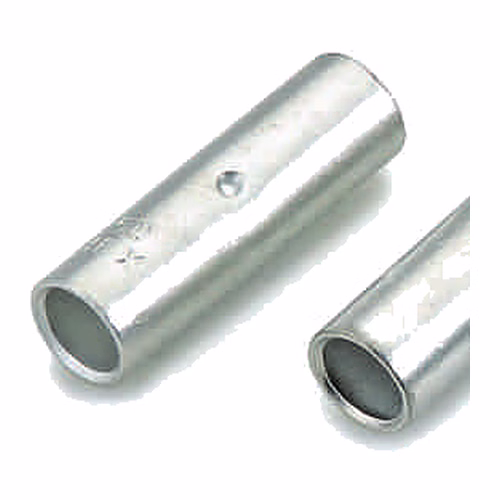

• Short barrel (HL): 1.5 to 1000 sq mm, length 12–170 mm; UL listed to 500 sq mm
• Crimping sleeves (HNC): 1.5 to 1000 sq mm, length 25–200 mm
• Tolerance: ± 3%; UL-listed sizes as per UL FUS
• Material: E-copper (electrolytic copper), minimum 97% IACS conductivity to IS 191
• Finish: electro-tinned to IS 1359

Why choose HEX connectors

• Safe straight joints from control cables to 1000 sq mm power cables.
• UL-listed short-barrel range (1.5–500 sq mm).
• Choice of barrel length for space or strength.
• Tinned E-copper for low resistance and corrosion protection.

Specifications

• Long barrel HC: HC 1.5, 2.5, 4, 6, 10, 16, 25, 35, 50, 70, 95, 120, 150, 185, 240, 300, 400, 500, 630, 800, 1000
• Short barrel HL: HL 1.5 to HL 1000 (also HL 20); 630–1000 not UL listed
• Crimping sleeves HNC: HNC-1.5 to HNC-1000

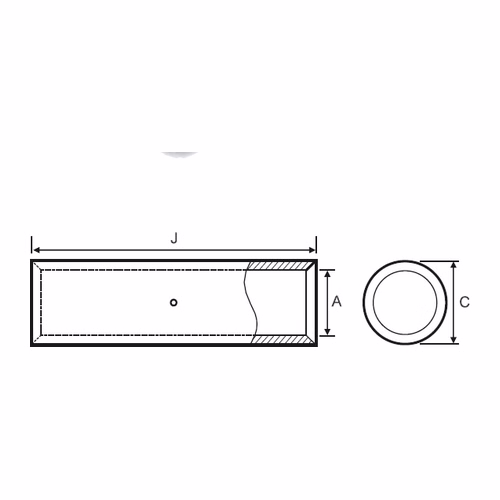

• Bore (A): 1.8 mm (1.5 sq mm) to 43 mm (1000 sq mm)
• Example lengths: HC 95: 54 mm; HL 95: 45 mm; HNC-95: 60 mm
• Material: E-copper (electrolytic copper), minimum 97% IACS conductivity to IS 191
• Finish: electro-tinned to IS 1359

Where it is used

• Straight-through cable joints (LV and MV)
• Extending or repairing power and control cables
• Joint kits and cable jointing contractors
• Earthing conductor joints

Related products

• HEX UL-listed tubular copper lugs
• HEX reducing links for unequal sizes
• HEX bimetallic Al-Cu connectors
• HEX tubular compression connectors to 33 kV

Frequently asked questions

What is the difference between long and short barrel connectors?

Length: a long barrel (HC) takes more crimps for extra strength; a short barrel (HL) is compact for tight spaces. The HL range is UL listed up to 500 sq mm.

Which sizes are available?

All three families cover 1.5 to 1000 sq mm.

How do I join two different sizes?

Use a tinned copper reducing link.

How should the connector be crimped?

Insert each conductor up to the middle of the connector, then crimp each half with a tool and die matched to the size, working from the centre outwards.

Where can I buy HEX cable lugs in India?

From Jai Enterprises, which supplies HEX cable lugs, terminals and connectors across India from Bhilai and Raipur, Chhattisgarh. Call +91 9340081159 with the product codes or cable sizes and quantities.

How to order

Supplied by Jai Enterprises, despatched from Bhilai and Raipur, Chhattisgarh, to sites across India. To request a price, call +91 9340081159 or send an enquiry from this page with your quantity and site details, and we will confirm availability, lead time and the right model for the job.
