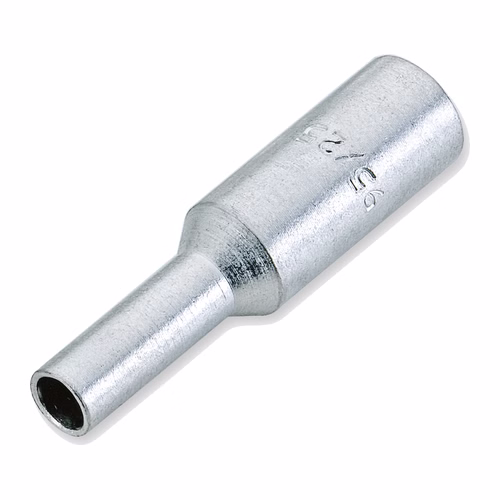

HEX Tinned Copper Reducing Links – Join Unequal Cable Sizes, 6 to 630 sq mm

When a cable of one size must be joined to a cable of another, a HEX tinned copper reducing link (HCRL) does it in a single fitting: each end has a barrel sized for its own conductor. The range covers joints from 6 to 4 sq mm up to 630 to 500 sq mm, in electro-tinned E-copper. Made by HEX, the brand of Brass Copper & Alloy (I) Ltd., Mumbai — an ISO 9001 company whose products are tested by CPRI (India), UL (USA), KEMA (Netherlands) and SIRIM (Malaysia).

At a glance

• Range: large side 6 to 630 sq mm; small side 4 to 500 sq mm
• Construction: two barrels of different bore in one piece
• Tolerance: ± 3%
• Material: E-copper (electrolytic copper), minimum 97% IACS conductivity to IS 191
• Finish: electro-tinned to IS 1359

Why a reducing link

• One fitting, two sizes — no packing or stripping of strands to make sizes match.
• Correct crimp on each side, each barrel matched to its conductor.
• Wide choice of size pairs from 6/4 to 630/500 sq mm.

Specifications

• Small cables: 6-4, 10-6, 16-6, 16-10, 25-6, 25-10, 25-16
• 35 and 50 sq mm: 35-10, 35-16, 35-25; 50-10, 50-16, 50-25, 50-35
• 70 and 95 sq mm: 70-16, 70-25, 70-35, 70-50; 95-25, 95-50, 95-70
• 120 to 185 sq mm: 120-35, 120-50, 120-70, 120-95; 150-50 to 150-120; 185-70 to 185-150
• 240 to 500 sq mm: 240-95 to 240-185; 300-120 to 300-240; 400-150 to 400-300; 500-185 to 500-400
• 630 sq mm: 630-240, 630-300, 630-400, 630-500

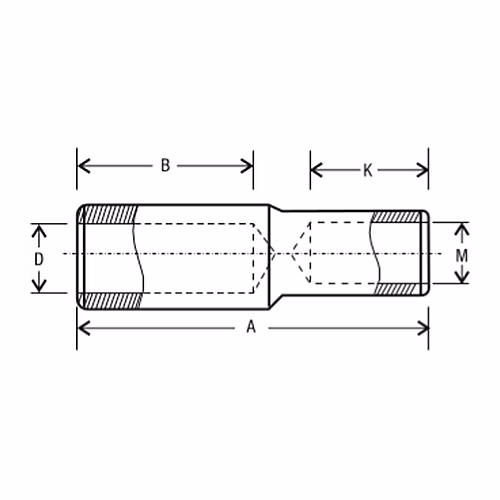

• Overall length (A): 30 mm (6-4) to 140 mm (500-400, 630-400/500)
• Codes: HCRL <large>-<small>, e.g. HCRL 240-185
• Material: E-copper (electrolytic copper), minimum 97% IACS conductivity to IS 191
• Finish: electro-tinned to IS 1359

Where it is used

• Joining feeder cables of different sizes
• Cable extensions during upgrades
• Joint kits for straight-through joints

Related products

• HEX copper in-line connectors
• HEX copper reducer pin terminals
• HEX UL-listed tubular copper lugs

Frequently asked questions

What is a reducing link?

A straight connector with two different barrel sizes, used to join two cables of different cross-section.

Which size pairs are available?

From 6-4 sq mm up to 630-500 sq mm, e.g. HCRL 240-185.

How is it crimped?

Insert each conductor fully into its own barrel and crimp each side with the die for that conductor size.
