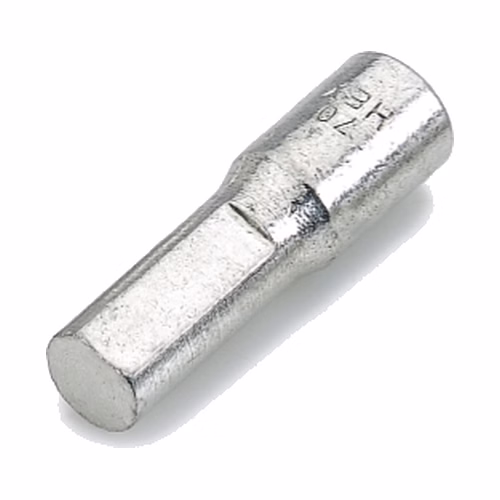

HEX Copper Reducer Pin Type Terminal Ends – 2.5 to 400 sq mm

HEX copper reducer pin type terminal ends (HPC) are made from round rod and are used to fix cables into tunnel-type terminal blocks, cut-outs, meters and similar terminals, where a solid pin clamps better than stranded wire. They are electro-tinned E-copper from 2.5 to 400 sq mm. Made by HEX, the brand of Brass Copper & Alloy (I) Ltd., Mumbai — an ISO 9001 company whose products are tested by CPRI (India), UL (USA), KEMA (Netherlands) and SIRIM (Malaysia).

At a glance

• Range: 2.5 to 400 sq mm
• Made from: round copper rod

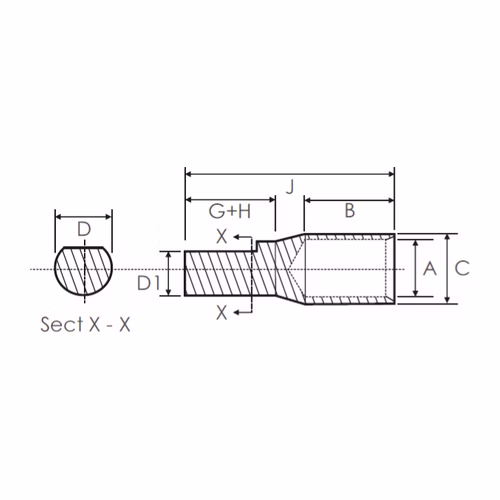

• Pin diameter (D): 3.8 mm to 16 mm
• Overall length (J): 20 mm to 92 mm
• Material: E-copper (electrolytic copper), minimum 97% IACS conductivity to IS 191
• Finish: electro-tinned to IS 1359

Why a pin terminal

• Solid pin for tunnel terminals — clamps evenly under the screw.
• Reducer design lets a large cable enter a smaller terminal.
• Range from 2.5 to 400 sq mm.

Specifications

• 2.5–16 sq mm: HPC-7 (2.5), HPC-16 (4), HPC-18 (6), HPC-20 (10), HPC-2 (16)
• 25–70 sq mm: HPC-25, HPC-3 (25); HPC-4 (35); HPC-26 (50); HPC-27, HPC-6, HPC-28 (70)
• 95–150 sq mm: HPC-29, HPC-31, HPC-8 (95); HPC-32, HPC-34, HPC-35 (120); HPC-37 (150)
• 185–400 sq mm: HPC-38 (185), HPC-44 (240), HPC-45 (300), HPC-48 (400)
• Material: E-copper (electrolytic copper), minimum 97% IACS conductivity to IS 191
• Finish: electro-tinned to IS 1359

Where it is used

• Service cut-outs and energy meters
• MCCB and isolator tunnel terminals
• Distribution boards and feeder pillars

Related products

• HEX pin and blade terminals for small wires
• HEX narrow palm circuit breaker lugs
• HEX tinned copper reducing links

Frequently asked questions

What is a reducer pin terminal?

A copper terminal ending in a solid round pin, used to connect a cable into a tunnel-type terminal.

Which sizes are available?

2.5 to 400 sq mm.

Where are they used?

In tunnel-type terminal blocks, cut-outs, meters and similar terminals.

Where can I buy HEX cable lugs in India?

From Jai Enterprises, which supplies HEX cable lugs, terminals and connectors across India from Bhilai and Raipur, Chhattisgarh. Call +91 9340081159 with the product codes or cable sizes and quantities.

How to order

Supplied by Jai Enterprises, despatched from Bhilai and Raipur, Chhattisgarh, to sites across India. To request a price, call +91 9340081159 or send an enquiry from this page with your quantity and site details, and we will confirm availability, lead time and the right model for the job.
