HEX Narrow Palm Circuit Breaker Lugs & Long Palm Long Barrel Copper Lugs

Circuit-breaker terminals often leave little room for a standard lug. HEX narrow palm circuit breaker cable terminal ends (HNP, 35–300 sq mm) have a slim palm that fits MCCB and ACB terminals, and HEX long palm long barrel cable terminals (HCPB, 16–630 sq mm) combine a long flat palm with a long crimp barrel. Both are tinned E-copper. Made by HEX, the brand of Brass Copper & Alloy (I) Ltd., Mumbai — an ISO 9001 company whose products are tested by CPRI (India), UL (USA), KEMA (Netherlands) and SIRIM (Malaysia).

At a glance

• Narrow palm (HNP): 35 to 300 sq mm; stud 6.5–13 mm; palm width D 11.5–24.5 mm

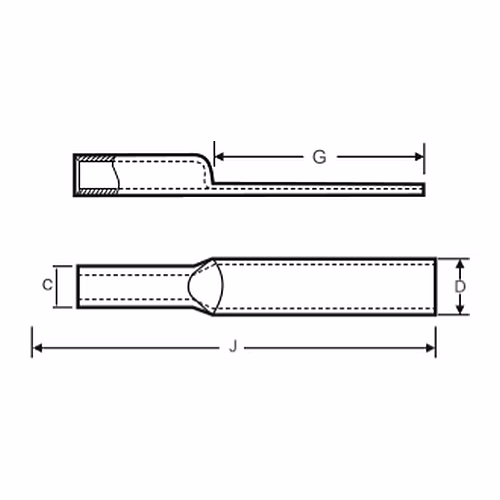

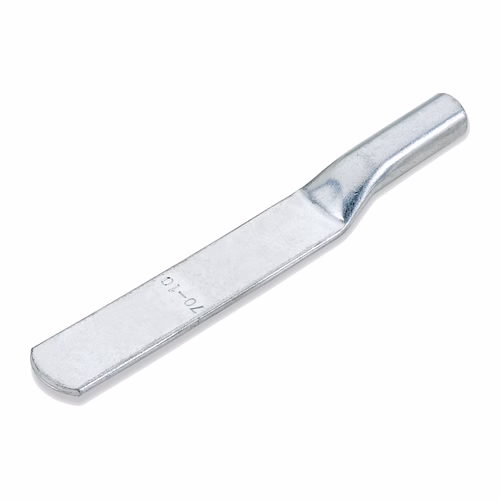

• Long palm long barrel (HCPB): 16 to 630 sq mm; palm length G 60–111 mm; overall 85–250 mm
• Bell mouth: narrow palm lugs bell mouthed on request (add B)
• Material: E-copper (electrolytic copper), minimum 97% IACS conductivity to IS 191
• Finish: electro-tinned to IS 1359

Why these palms

• Fits tight breaker terminals — narrow palm down to 11.5 mm wide.
• Long flat palm for terminals and busbars that need reach.
• Long barrel for a strong crimp on the long-palm range.
• Bell-mouth option for narrow-palm lugs.

Specifications

• HNP narrow palm: 35 (stud 6.5) · 50 (6.5, 8.4, 10.2) · 70 (6.5, 8.4, 10.2) · 95 (8.4, 10.2) · 120 and 150 (8.4, 10.2) · 185 and 240 (10.2, 13) · 300 sq mm (10.2, 13)
• HNP dimensions: palm width D 11.5 mm (35 sq mm) to 24.5 mm (185–300 sq mm); overall J 41–87 mm
• HCPB long palm long barrel: 16, 25, 35, 50, 70, 95, 120, 150, 185, 240, 300, 400, 500, 630 sq mm; palm width D 12–63 mm; overall J 85–250 mm
• Material: E-copper (electrolytic copper), minimum 97% IACS conductivity to IS 191
• Finish: electro-tinned to IS 1359

Where it is used

• MCCB and ACB terminals in panels
• Compact switchboards and bus-couplers
• Terminal blocks with limited width

Which HEX copper lug do I need?

• Standard UL-listed tubular lugs — the general-purpose copper lug, 1.5–1000 mm², with inspection hole.
• Economy range — the same job for 35–1000 mm² where a lighter lug is acceptable.
• Bell mouth — flared entry for fast insertion of flexible or fine-stranded conductors.
• Without inspection hole — sealed barrel for damp or outdoor locations.
• Long barrel, 2-hole or 4-hole — longer crimp or anti-rotation palm for heavy terminations.
• 33 kV terminals — for HV cable terminations.

Related products

• HEX UL-listed tubular copper lugs
• HEX copper reducer pin terminals
• HEX long barrel copper lugs

Frequently asked questions

What is a narrow palm lug used for?

For circuit-breaker (MCCB/ACB) terminals where a standard palm is too wide.

Which sizes are available?

Narrow palm: 35–300 sq mm. Long palm long barrel: 16–630 sq mm.

Can I get a bell mouth version?

Yes — narrow palm lugs can be bell mouthed on request; add B before the code.

How should the lug be crimped?

Use a crimping tool and die matched to the cable size, and crimp from the palm end towards the barrel end.

Where can I buy HEX cable lugs in India?

From Jai Enterprises, which supplies HEX cable lugs, terminals and connectors across India from Bhilai and Raipur, Chhattisgarh. Call +91 9340081159 with the product codes or cable sizes and quantities.

How to order

Supplied by Jai Enterprises, despatched from Bhilai and Raipur, Chhattisgarh, to sites across India. To request a price, call +91 9340081159 or send an enquiry from this page with your quantity and site details, and we will confirm availability, lead time and the right model for the job.
