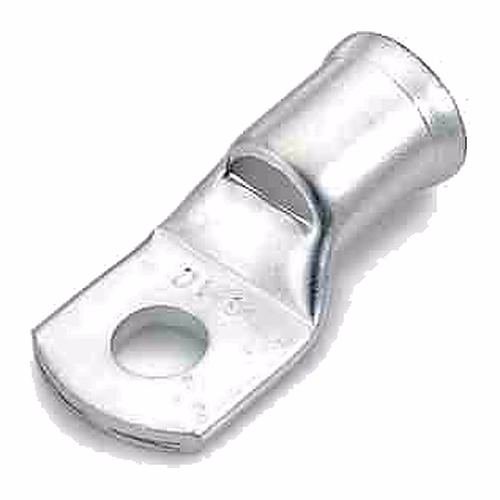

HEX Bell Mouth Copper Cable Lugs – Crimping Type, 10 to 240 sq mm

HEX bell mouth copper cable lugs (BHT) have a flared barrel entry. The bell mouth guides every strand into the barrel quickly and prevents the outer strands from catching or splaying — especially useful with flexible and fine-stranded conductors. They are crimping-type E-copper tubular lugs, electro-tinned, from 10 to 240 sq mm; larger bell-mouth sizes are made on request. Made by HEX, the brand of Brass Copper & Alloy (I) Ltd., Mumbai — an ISO 9001 company whose products are tested by CPRI (India), UL (USA), KEMA (Netherlands) and SIRIM (Malaysia).

At a glance

• Range: 10 to 240 sq mm (larger on request)
• Stud holes: 5.2 to 21 mm
• Entry: bell-mouthed (flared) barrel
• Dimensional tolerance: ± 3%
• Material: E-copper (electrolytic copper), minimum 97% IACS conductivity to IS 191
• Finish: electro-tinned to IS 1359

Why a bell mouth lug

• Faster, cleaner insertion — strands slide in without being trimmed or twisted.
• Ideal for flexible cable, where fine strands splay easily.
• Full stud-hole choice on each size.
• Larger sizes on request above 240 sq mm.

Specifications

• 10 sq mm: stud 5.2, 6.5, 8.4, 10.5, 13 mm
• 16 sq mm: stud 5.2, 6.5, 8.4, 10.5, 13, 17 mm
• 25 and 35 sq mm: stud 6.5, 8.4, 10.5, 13, 17 mm
• 50 sq mm: stud 6.5, 8.4, 10.5, 13, 14.5, 17, 21 mm
• 70, 95 and 120 sq mm: stud 8.4, 10.5, 13, 14.5, 17, 21 mm
• 150 sq mm: stud 8.4, 10.5, 13, 14.7, 17, 21 mm
• 185 sq mm: stud 10.5, 13, 14.7, 17, 21 mm
• 240 sq mm: stud 10.5, 13, 14.5, 17, 21 mm

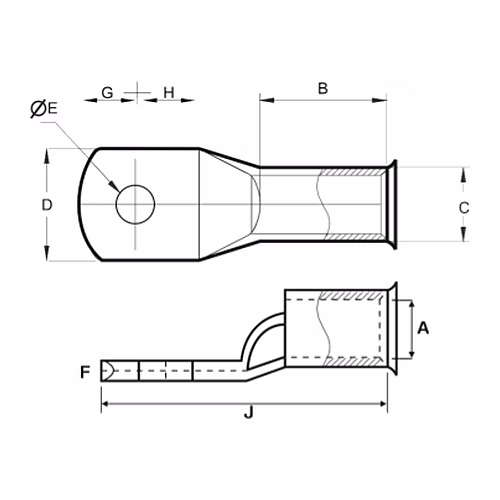

• Overall length (J): 26 mm (10 sq mm) to 94 mm (240 sq mm)
• Codes: BHT <sq mm>-<stud>, e.g. BHT 50-10
• Material: E-copper (electrolytic copper), minimum 97% IACS conductivity to IS 191
• Finish: electro-tinned to IS 1359

Where it is used

• Flexible and welding-type cables
• Generator, UPS and battery connections
• Panel and machine wiring with fine-stranded conductors
• Earthing and bonding leads

Which HEX copper lug do I need?

• Standard UL-listed tubular lugs — the general-purpose copper lug, 1.5–1000 mm², with inspection hole.
• Economy range — the same job for 35–1000 mm² where a lighter lug is acceptable.
• Bell mouth (this page) — flared entry for fast insertion of flexible or fine-stranded conductors.
• Without inspection hole — sealed barrel for damp or outdoor locations.
• Long barrel, 2-hole or 4-hole — longer crimp or anti-rotation palm for heavy terminations.
• 33 kV terminals — for HV cable terminations.

Related products

• HEX UL-listed tubular copper lugs
• HEX Australian-standard lugs (bell mouthed options)
• HEX copper in-line connectors

Frequently asked questions

What is a bell mouth lug?

A cable lug whose barrel entry is flared, so the conductor strands slide in easily without catching or splaying.

Which sizes are available?

10 to 240 sq mm as standard; bell mouth lugs above 240 sq mm can be supplied on request.

When should I use one?

With flexible or fine-stranded conductors, or wherever quick, clean insertion matters.

How should the lug be crimped?

Use a crimping tool and die matched to the cable size, and crimp from the palm end towards the barrel end.
