HEX Long Barrel Tinned Copper Cable Lugs – 6 to 800 sq mm

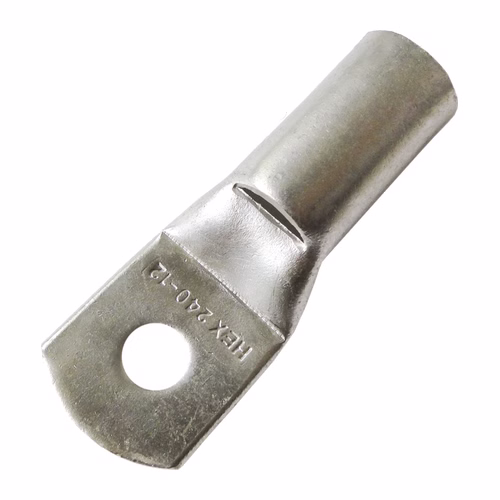

HEX long barrel tinned copper cable terminal ends (HTL) have an extended barrel that allows a longer crimp with more crimp positions — improving pull-out strength and electrical performance on heavily loaded or vibrating terminations. They run from 6 to 800 sq mm and are also available without an inspection hole. Made by HEX, the brand of Brass Copper & Alloy (I) Ltd., Mumbai — an ISO 9001 company whose products are tested by CPRI (India), UL (USA), KEMA (Netherlands) and SIRIM (Malaysia).

At a glance

• Range: 6 to 800 sq mm
• Stud holes: 8.4 mm (6–35 sq mm), 13 mm (50–185), 17 mm (240), 21 mm (300–800); others on request

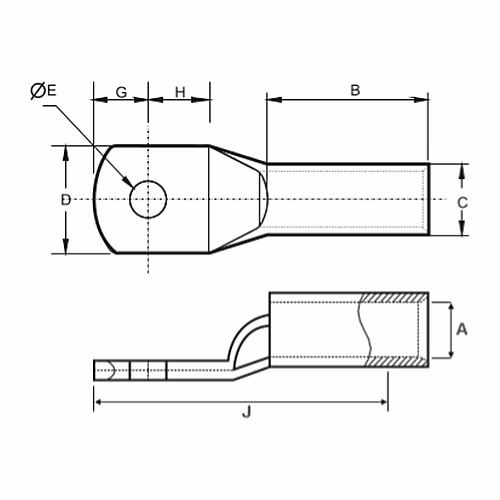

• Overall length (J): 29 mm (6 sq mm) to 187 mm (800 sq mm)
• Option: without inspection hole
• Material: E-copper (electrolytic copper), minimum 97% IACS conductivity to IS 191
• Finish: electro-tinned to IS 1359

Why a long barrel lug

• Longer crimp for higher mechanical strength.
• Better for vibration — motors, generators and moving machinery.
• Other stud holes on request.
• Closed-barrel option for damp locations.

Specifications

• 6, 10, 16, 25, 35 sq mm: HTL 6-8, HTL 10-8, HTL 16-8, HTL 25-8, HTL 35-8 (8.4 mm hole)
• 50 to 185 sq mm: HTL 50-12, 70-12, 95-12, 120-12, 150-12, 185-12 (13 mm hole)
• 240 sq mm: HTL 240-16 (17 mm hole)
• 300 to 800 sq mm: HTL 300-20, 400-20, 500-20, 630-20, 800-20 (21 mm hole)
• Barrel length (B): 11 mm (6 sq mm) to 95 mm (800 sq mm)
• Material: E-copper (electrolytic copper), minimum 97% IACS conductivity to IS 191
• Finish: electro-tinned to IS 1359

Where it is used

• Motor and generator terminal boxes
• Crane, conveyor and mobile machinery
• Transformer and switchgear terminations
• High-current earthing leads

Which HEX copper lug do I need?

• Standard UL-listed tubular lugs — the general-purpose copper lug, 1.5–1000 mm², with inspection hole.
• Economy range — the same job for 35–1000 mm² where a lighter lug is acceptable.
• Bell mouth — flared entry for fast insertion of flexible or fine-stranded conductors.
• Without inspection hole — sealed barrel for damp or outdoor locations.
• Long barrel (this page), 2-hole or 4-hole — longer crimp or anti-rotation palm for heavy terminations.
• 33 kV terminals — for HV cable terminations.

Related products

• HEX UL-listed tubular lugs
• HEX long palm long barrel lugs
• HEX tubular compression lugs up to 33 kV

Frequently asked questions

What is the advantage of a long barrel lug?

A longer barrel takes more crimps, giving higher pull-out strength and better performance under vibration.

Which stud holes are standard?

8.4 mm for 6–35 sq mm, 13 mm for 50–185 sq mm, 17 mm for 240 sq mm and 21 mm for 300–800 sq mm; other hole sizes on request.

Is a version without inspection hole available?

Yes — long barrel lugs can be supplied without an inspection hole.

How should the lug be crimped?

Use a crimping tool and die matched to the cable size, and crimp from the palm end towards the barrel end.

Where can I buy HEX cable lugs in India?

From Jai Enterprises, which supplies HEX cable lugs, terminals and connectors across India from Bhilai and Raipur, Chhattisgarh. Call +91 9340081159 with the product codes or cable sizes and quantities.

How to order

Supplied by Jai Enterprises, despatched from Bhilai and Raipur, Chhattisgarh, to sites across India. To request a price, call +91 9340081159 or send an enquiry from this page with your quantity and site details, and we will confirm availability, lead time and the right model for the job.
