HEX Tubular Compression Copper Cable Lugs & Long Barrel Connectors – up to 33 kV, 6 to 1000 sq mm

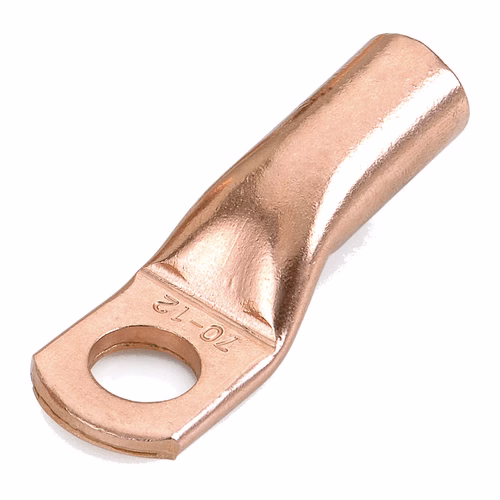

HEX tubular compression copper cable lugs (HUTD) are heavy-duty compression terminals for cables up to 33 kV, from 6 to 1000 sq mm. Matching long-barrel compression connectors (HUTD-C) join cables from 25 to 1000 sq mm. Both are E-copper, supplied plain (uncoated) or electro-tinned. Made by HEX, the brand of Brass Copper & Alloy (I) Ltd., Mumbai — an ISO 9001 company whose products are tested by CPRI (India), UL (USA), KEMA (Netherlands) and SIRIM (Malaysia).

At a glance

• Voltage: up to 33 kV
• Lugs: HUTD 6 to 1000 sq mm, stud 5.3–21 mm
• Connectors: HUTD-C 25 to 1000 sq mm, long barrel
• Finish: uncoated or electro-tinned
• Material: E-copper
• Tolerance: ± 3%

Why choose HUTD lugs

• Up to 33 kV — for LV, MV and HV cable terminations.
• Full range to 1000 sq mm.
• Plain or tinned to suit the connection.
• Matching long-barrel connectors for straight joints.

Specifications

• HUTD lugs 6–35 sq mm: 6 (stud 5.3) · 10 (6.5) · 16 (6.5, 8.4, 10.5, 13) · 25 (6.5, 8.4, 10.5, 13) · 35 (8.4, 10.5, 13)
• HUTD lugs 50–240 sq mm: 50 (8.4, 10.5, 13, 17) · 70 to 240 (10.5, 13, 17, 21)
• HUTD lugs 300–1000 sq mm: 300 (13, 17, 21) · 400 (17, 21) · 500 to 1000 (21)

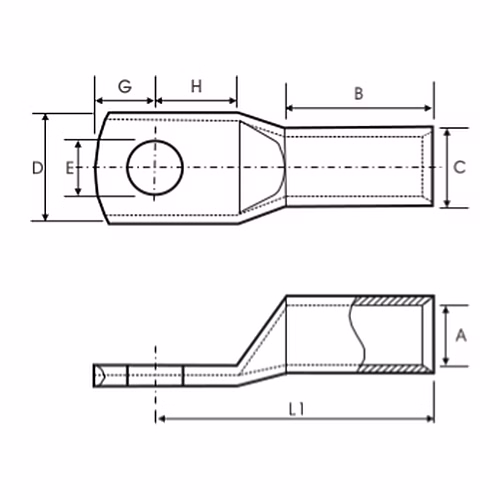

• HUTD overall length (L1): 24 mm (6 sq mm) to 165 mm (800–1000 sq mm)

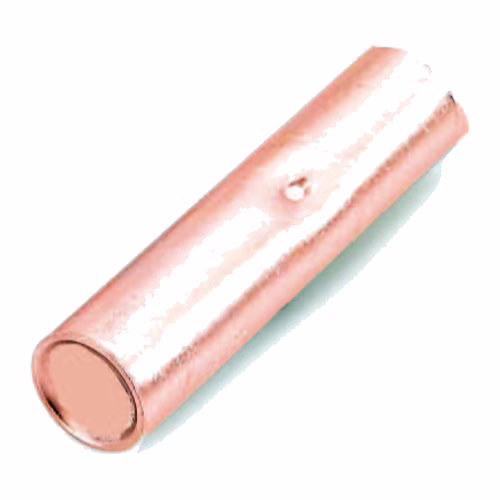

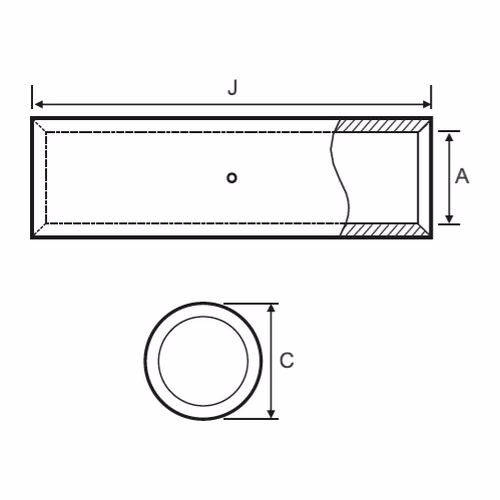

• HUTD-C connectors: 25, 35, 50, 70, 95, 120, 150, 185, 240, 300, 400, 500, 630, 800, 1000 sq mm; length 50 mm (25 sq mm) to 200 mm (800–1000 sq mm)
• Finish: uncoated or electro-tinned E-copper

Where it is used

• LV, MV and HV power cable terminations and joints up to 33 kV
• Substation and industrial HT cable work
• Straight-through joints with HUTD-C connectors

Which HEX copper lug do I need?

• Standard UL-listed tubular lugs — the general-purpose copper lug, 1.5–1000 mm², with inspection hole.
• Economy range — the same job for 35–1000 mm² where a lighter lug is acceptable.
• Bell mouth — flared entry for fast insertion of flexible or fine-stranded conductors.
• Without inspection hole — sealed barrel for damp or outdoor locations.
• Long barrel, 2-hole or 4-hole — longer crimp or anti-rotation palm for heavy terminations.
• 33 kV terminals — for HV cable terminations.

Related products

• HEX 33 kV HV copper terminals
• HEX copper in-line connectors
• HEX long barrel copper lugs

Frequently asked questions

What voltage are HUTD lugs rated for?

They are catalogued for use up to 33 kV.

Plain or tinned?

Both — HUTD lugs and HUTD-C connectors are available uncoated or electro-tinned.

What sizes are available?

Lugs from 6 to 1000 sq mm; long-barrel connectors from 25 to 1000 sq mm.

How should the lug be crimped?

Use a crimping tool and die matched to the cable size, and crimp from the palm end towards the barrel end.
