HEX Tinned Copper Tubular Cable Lugs Without Inspection Hole – 2.5 to 630 sq mm

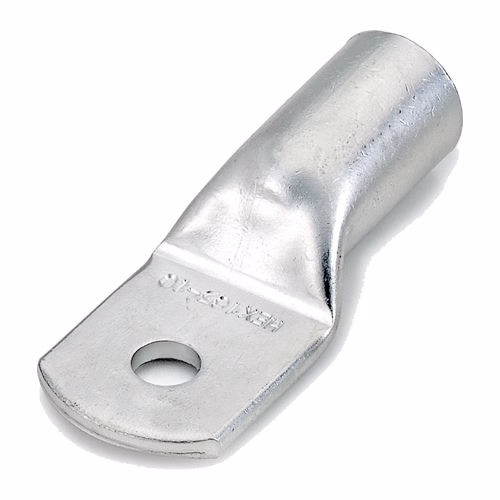

HEX tinned copper tubular cable lugs without inspection hole (HNL) have a closed barrel. With no hole in the barrel, moisture and contamination cannot reach the crimped conductor — the reason to choose them for outdoor, damp and corrosive locations. They are E-copper, electro-tinned, from 2.5 to 630 sq mm. Made by HEX, the brand of Brass Copper & Alloy (I) Ltd., Mumbai — an ISO 9001 company whose products are tested by CPRI (India), UL (USA), KEMA (Netherlands) and SIRIM (Malaysia).

At a glance

• Range: 2.5 to 630 sq mm
• Stud holes: 5.3 to 21 mm; blank palm on 500 and 630 sq mm
• Barrel: closed, no inspection hole
• Four-hole: HNL 630-4 E10 (630 sq mm)
• Tolerance: ± 3%
• Material: E-copper (electrolytic copper), minimum 97% IACS conductivity to IS 191
• Finish: electro-tinned to IS 1359

Why a lug without inspection hole

• Keeps moisture out of the crimped joint.
• Better for outdoor, coastal and damp areas.
• Wide range from 2.5 to 630 sq mm.
• Four-hole version for 630 sq mm.

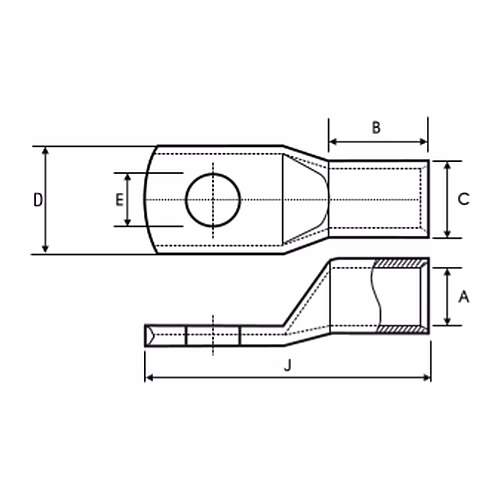

Specifications

• 2.5 and 4 sq mm: stud 5.3 mm
• 6 and 10 sq mm: stud 5.3, 6.5, 8.5, 10.5, 13 mm
• 16 sq mm: stud 5.3, 6.5, 8.5, 10.5, 13 mm
• 25 sq mm: stud 5.3, 6.5, 8.5, 10.5, 13, 15 mm
• 35 and 50 sq mm: stud 6.5, 8.5, 10.5, 13, 15 mm
• 70 sq mm: stud 6.5, 8.5, 10.5, 13, 15 mm
• 95 and 120 sq mm: stud 8.5, 10.5, 13, 15, 17, 21 mm
• 150 sq mm: stud 8.5, 10.5, 13, 15, 17, 21 mm
• 185 sq mm: stud 10.5, 13, 15, 17, 21 mm
• 240 sq mm: stud 10.5, 13, 15, 17 mm
• 300 sq mm: stud 13, 15, 17, 21 mm
• 400 sq mm: stud 17, 21 mm
• 500 sq mm: stud 17, 21 mm or blank
• 630 sq mm: stud 17, 21 mm, blank, or four-hole (HNL 630-4 E10)
• Codes: HNL <sq mm>-<stud>, e.g. HNL 95-10
• Material: E-copper (electrolytic copper), minimum 97% IACS conductivity to IS 191
• Finish: electro-tinned to IS 1359

Where it is used

• Outdoor switchyards and kiosks
• Coastal and humid sites
• Pump houses and water-treatment plants
• Solar field junction boxes

Which HEX copper lug do I need?

• Standard UL-listed tubular lugs — the general-purpose copper lug, 1.5–1000 mm², with inspection hole.
• Economy range — the same job for 35–1000 mm² where a lighter lug is acceptable.
• Bell mouth — flared entry for fast insertion of flexible or fine-stranded conductors.
• Without inspection hole (this page) — sealed barrel for damp or outdoor locations.
• Long barrel, 2-hole or 4-hole — longer crimp or anti-rotation palm for heavy terminations.
• 33 kV terminals — for HV cable terminations.
