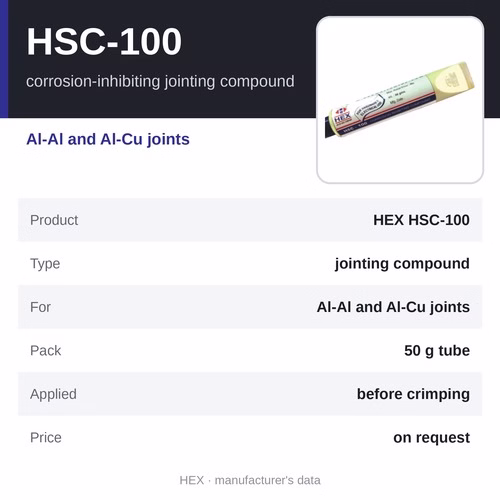

HEX HSC-100 Corrosion-Inhibiting Compound – Aluminium & Bimetallic Cable Joints, 50 g Tube

Corrosion-inhibiting compound for aluminium-to-aluminium and aluminium-to-copper joints, 50 g tube. HEX HSC-100 is applied to the aluminium conductor and the barrel of the lug or connector before crimping. Aluminium forms an oxide skin as soon as it is cleaned, and an aluminium-to-copper joint sets up a galvanic couple; the compound keeps air and moisture away from the contact faces so the joint stays low in resistance. Price on request.

Made by HEX for its aluminium and bimetallic lugs and connectors - HEX - the brand of Brass Copper & Alloy (I) Ltd., Mumbai, an ISO 9001 company - sold alongside the HEX cable lugs, terminals and ferrules it is sized to crimp.. Use it with HEX aluminium lugs, long-barrel aluminium lugs for XLPE cable and bimetallic lugs.

Is this the right one for you?

Check these three things before you order:

• You are crimping aluminium lugs, connectors or bimetallic lugs.
• The lug barrel was supplied dry (not grease-filled and capped).
• The joint is outdoors, in a damp location or on a high-current circuit where resistance matters.

At a glance

• Price: Request price
• Product: HEX HSC-100
• Type: corrosion-inhibiting jointing compound
• For: aluminium-to-aluminium and aluminium-to-copper joints
• Pack: 50 g tube

Specifications

• Product: HEX HSC-100
• Type: corrosion-inhibiting jointing compound
• For: aluminium-to-aluminium and aluminium-to-copper joints
• Pack: 50 g tube
• Applied: to the cleaned aluminium conductor and the lug barrel before crimping
• Brand: HEX

Why use HSC-100

• Keeps the oxide off the cleaned aluminium contact faces
• Protects bimetallic joints between aluminium conductors and copper lugs or bars
• Made by the lug maker for its own aluminium and bimetallic range
• 50 g tube - the right size for the tool kit

How it is used

1. Strip the aluminium conductor and brush the strands clean.
2. Apply the compound to the strands and inside the lug barrel straight away, before the oxide re-forms.
3. Insert the conductor and crimp with the HEXPRESS tool and die for the lug size.
4. Wipe off the surplus around the barrel mouth.

Where it is used

• Aluminium power-cable terminations
• Aluminium-to-copper (bimetallic) joints on busbars and equipment
• Overhead-line and earthing connections in aluminium
• Solar and utility installations with aluminium cable

Related products

• HEX aluminium cable lugs and through connectors - 16 to 300 sq mm
• HEX long-barrel aluminium lugs for XLPE cable - 25 to 1000 sq mm
• HEX bimetallic aluminium-copper lugs
• HEXPRESS hydraulic crimping tools - hand, foot and remote-head hydraulic tools, 10 to 1000 sq mm
• HEXPRESS hand crimping tools - mechanical tools for cable lugs, 0.5 to 400 sq mm
• All HEX cable lugs, terminals and connectors

Frequently asked questions

What is HSC-100 for?

Inhibiting corrosion at aluminium-to-aluminium and aluminium-to-copper cable joints: it is applied to the conductor and lug barrel before crimping.

Do I need it on copper-to-copper joints?

No - it is made for joints with an aluminium conductor or an aluminium-to-copper interface.

How much is in a tube?

50 g.

Is it needed on pre-greased lugs?

HEX aluminium lugs can be supplied with the barrel filled with grease and capped, on request; those already carry compound. Use HSC-100 on lugs supplied dry and on bimetallic joints.

Where can I buy HEX HSC-100 in India?

From Jai Enterprises, Bhilai and Raipur, Chhattisgarh, which supplies HEX cable lugs and jointing compound across India. Call +91 9340081159 with the model, quantity and delivery location and we will confirm the price, availability and lead time.

How to order

Supplied by Jai Enterprises, Bhilai and Raipur, Chhattisgarh, to sites across India. To request a price for HEX HSC-100, call +91 9340081159 or send an enquiry from this page with the quantity and delivery location, and we will confirm availability, lead time and the right compound for the job.
