HEX HEXPRESS Hydraulic Crimping Tools – Hand, Foot and Remote-Head Tools for Cable Lugs, 10 to 1000 sq mm

HEXPRESS hydraulic crimping tools make compression joints on copper and aluminium cable lugs and connectors from 10 to 1000 sq mm - the sizes where a mechanical hand tool no longer delivers enough force. HEXPRESS is the crimping-tool range of HEX - the brand of Brass Copper & Alloy (I) Ltd., Mumbai, an ISO 9001 company - sold alongside the HEX cable lugs, terminals and ferrules it is sized to crimp.

The range has three kinds of tool. HEXPRESS-06, -07 and -400 have the pump built into the handles; HYF-400 is worked by a foot pump; HY-400 and HY-1000 have a separate crimping head on a hydraulic hose from a hand pump. Each tool has its own page; prices are on request.

Choose your hydraulic tool

All six tools are supplied at a price on request.

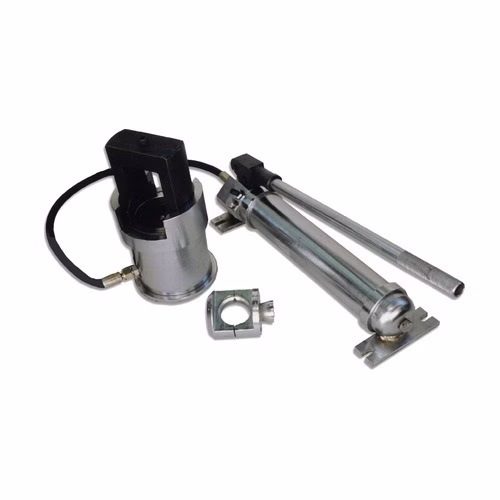

• HEXPRESS HY-400 - 120 to 400 sq mm, hydraulic crimping tool with separate head and hand pump, 16.50 kg - price on request
• HEXPRESS HY-1000 - 120 to 1000 sq mm, hydraulic crimping tool with separate head and hand pump, 25.50 kg - price on request

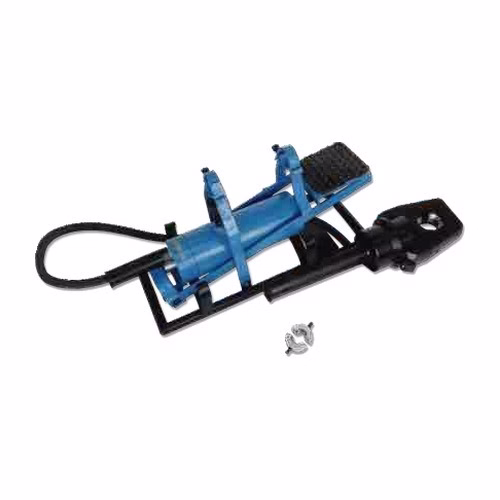

• HEXPRESS HYF-400 - 50 to 400 sq mm, foot-operated hydraulic crimping tool, 17.0 kg - price on request

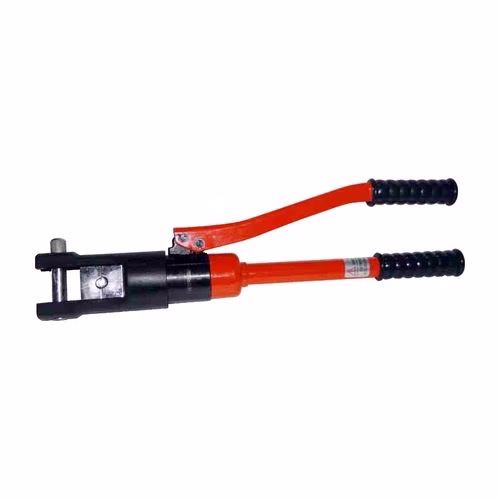

• HEXPRESS-06 - 16 to 300 sq mm, hand-operated hydraulic crimping tool, 5.10 kg - price on request
• HEXPRESS-07 - 16 to 300 sq mm, heavy-duty hand-operated hydraulic crimping tool, 5.32 kg - price on request
• HEXPRESS-400 - aluminium 10 to 400 sq mm; copper 16 to 400 sq mm, hand-operated hydraulic crimping tool, 7.00 kg - price on request

How to choose

Start with the largest lug you crimp: HEXPRESS-06 or -07 for up to 300 sq mm, HEXPRESS-400, HYF-400 or HY-400 for up to 400 sq mm, HY-1000 for up to 1000 sq mm. Then choose how it is worked: an integral hand pump for a self-contained tool, a foot pump when both hands must stay on the cable, or a hose-connected head when the crimp is made in a trench, duct or panel the tool cannot otherwise reach.

Every tool uses interchangeable dies matched to the lug size - see the die pages for the HY-400 and HY-1000, and ask for the die list for the others.

At a glance

• Tools: HEXPRESS-06, HEXPRESS-07, HEXPRESS-400, HYF-400, HY-400, HY-1000
• Capacity: 10 to 1000 sq mm
• Operation: integral hand pump, foot pump or hand pump with remote head
• Weight: 5.10 to 25.50 kg
• Price: on request

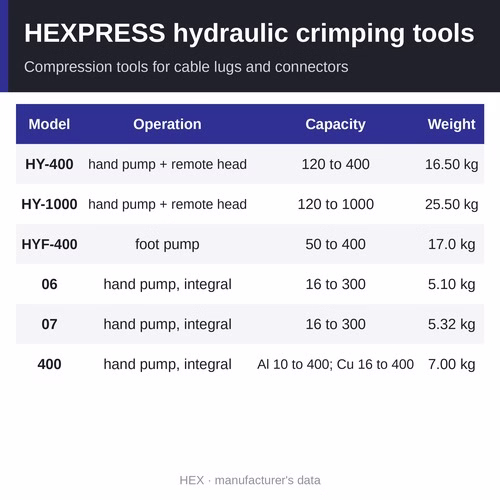

The range at a glance

• HEXPRESS HY-400: 120 to 400 sq mm; hand pump, hydraulic hose to the crimping head; 16.50 kg
• HEXPRESS HY-1000: 120 to 1000 sq mm; hand pump, hydraulic hose to the crimping head; 25.50 kg
• HEXPRESS HYF-400: 50 to 400 sq mm; foot pump, hydraulic hose to the crimping head; 17.0 kg
• HEXPRESS-06: 16 to 300 sq mm; integral hand pump (two handles); 5.10 kg
• HEXPRESS-07: 16 to 300 sq mm; integral hand pump (two handles); 5.32 kg
• HEXPRESS-400: aluminium 10 to 400 sq mm; copper 16 to 400 sq mm; integral hand pump (two handles); 7.00 kg

Why choose a HEXPRESS hydraulic tool

• Hydraulic force, not arm strength - the pump does the work, so every crimp on a large lug is closed fully
• Dies matched to the lug size give a uniform compression joint
• Sized by conductor cross-section, like the HEX lugs and connectors they crimp
• One tool covers a wide range of sizes, so fewer tools go to site

How they are used

1. Choose the tool by the largest lug size and by how it is worked.
2. Fit the die pair for the lug, insert the conductor in the lug and place it between the dies.
3. Pump until the dies close fully, release the pressure and inspect the crimp.

Where it is used

• Terminating power cables on switchgear, transformers and distribution boards
• Cable joints and terminations on site and in panel shops
• Earthing and bonding conductors
• Solar, industrial and utility installations with large copper and aluminium cables

Related products

• HEXPRESS crimping dies - die sets for the F1-185 (round or hexagon), G-400 and G1-400 (hexagon), HY-400 and HY-1000
• HEXPRESS hand crimping tools - mechanical tools for cable lugs, 0.5 to 400 sq mm
• HEX copper tubular cable lugs - UL listed, 1.5 to 1000 sq mm
• HEX long-barrel aluminium lugs for XLPE cable - 25 to 1000 sq mm
• HEX HSC-100 corrosion-inhibiting compound - for aluminium joints
• All crimping tools

Frequently asked questions

Which tool do I need for 400 sq mm lugs?

HEXPRESS-400 (hand pump, 7.00 kg), HYF-400 (foot pump) or HY-400 (hand pump with remote head) all crimp up to 400 sq mm; HEXPRESS-06 and -07 stop at 300 sq mm.

What is a remote-head tool?

The crimping head is separate from the pump and connected by a hydraulic hose, so the head can be placed where the cable is while the pump is worked from outside.

Do the tools come with dies?

Dies are matched to lug sizes and are ordered with the tool - the HY-400 and HY-1000 die numbers are listed on their pages; for the others we confirm the die set against your lug sizes.

Do they crimp aluminium lugs?

HEXPRESS-400 lists aluminium 10 to 400 sq mm and copper 16 to 400 sq mm; the other tools crimp any lug whose barrel matches the die.

Where can I buy HEXPRESS hydraulic crimping tools in India?

From Jai Enterprises, Bhilai and Raipur, Chhattisgarh, which supplies HEXPRESS crimping tools across India. Call +91 9340081159 with the model, quantity and delivery location and we will confirm the price, availability and lead time.

How to order

Supplied by Jai Enterprises, Bhilai and Raipur, Chhattisgarh, to sites across India. Pick the size from the list above, then call +91 9340081159 or send an enquiry with the model, quantity and delivery location - we will confirm stock, lead time and the delivered cost of the tool.
