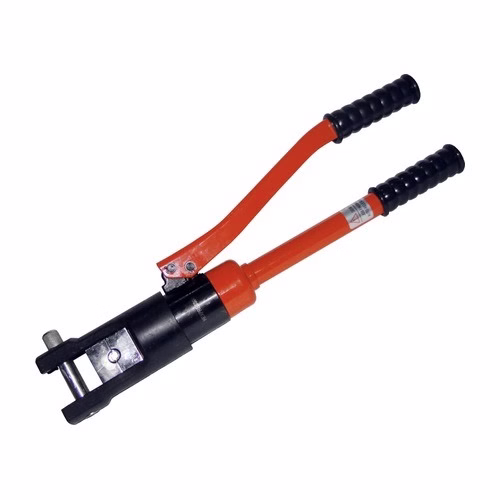

HEX HEXPRESS-06 Hydraulic Hand Crimping Tool – 16 to 300 sq mm, 5.10 kg

16 to 300 sq mm, hand-operated hydraulic crimping tool, 5.10 kg. HEXPRESS-06 is a hydraulic compression tool for crimping cable lugs, terminals and connectors onto conductors of 16 to 300 sq mm. The pump is built into the tool: closing the two handles pumps the ram, so one person crimps large lugs without a separate pump. Dies: interchangeable dies. Price on request.

HEXPRESS is the crimping-tool range of HEX - the brand of Brass Copper & Alloy (I) Ltd., Mumbai, an ISO 9001 company - sold alongside the HEX cable lugs, terminals and ferrules it is sized to crimp. Use it with HEX copper tubular lugs, aluminium lugs and crimping sleeves of the same sizes.

Is this the right one for you?

Check these four things before you order:

• Your lugs and connectors are within 16 to 300 sq mm.
• You want one self-contained tool - the pump is built into the handles.
• You have, or will order, the die pair for each lug size (interchangeable dies).
• The weight (5.10 kg) suits how the tool will be carried and used.

At a glance

• Price: Request price
• Model: HEXPRESS-06
• Type: hand-operated hydraulic crimping tool
• Crimping capacity: 16 to 300 sq mm
• Operation: integral hand pump (two handles)
• Dies: interchangeable dies
• Weight: 5.10 kg

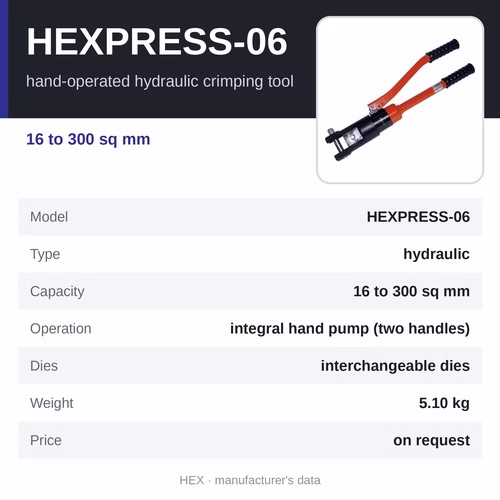

Specifications

• Product: HEXPRESS-06
• Type: hand-operated hydraulic crimping tool
• Crimping capacity: 16 to 300 sq mm
• Operation: integral hand pump (two handles)
• Dies: interchangeable dies
• Weight: 5.10 kg
• For: copper and aluminium cable lugs, terminals and connectors with a barrel matched to the die
• Brand: HEX (HEXPRESS range)

Why choose HEXPRESS-06

• Hydraulic force, not arm strength - the pump does the work, so every crimp on a large lug is closed fully
• Dies matched to the lug size give a uniform compression joint
• Sized by conductor cross-section, like the HEX lugs and connectors they crimp
• One tool covers a wide range of sizes, so fewer tools go to site
• Self-contained - pump, ram and head in one tool

How it is used

1. Fit the die pair for the lug size in the head.
2. Strip the conductor, insert it fully into the lug barrel and place the barrel between the dies.
3. Pump the two handles until the dies have closed completely.
4. Open the release valve to retract the ram, then remove and inspect the crimped lug.

Where it is used

• Terminating power cables on switchgear, transformers and distribution boards
• Cable joints and terminations on site and in panel shops
• Earthing and bonding conductors
• Solar, industrial and utility installations with large copper and aluminium cables

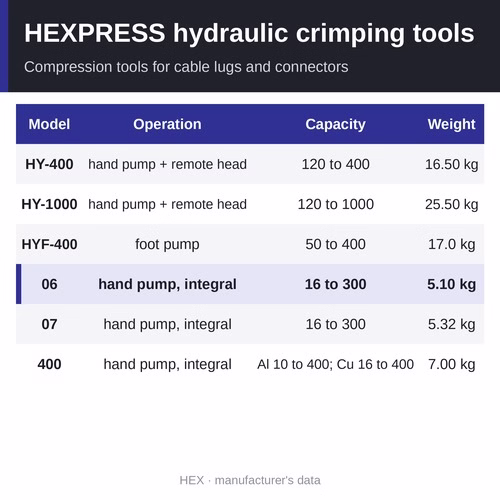

Other HEXPRESS hydraulic tools

The HEX hydraulic crimping tools overview page compares all 6 side by side.

• HEXPRESS HY-400 - 120 to 400 sq mm, hydraulic crimping tool with separate head and hand pump, 16.50 kg - price on request
• HEXPRESS HY-1000 - 120 to 1000 sq mm, hydraulic crimping tool with separate head and hand pump, 25.50 kg - price on request
• HEXPRESS HYF-400 - 50 to 400 sq mm, foot-operated hydraulic crimping tool, 17.0 kg - price on request
• HEXPRESS-06 - 16 to 300 sq mm, hand-operated hydraulic crimping tool, 5.10 kg - price on request (this page)
• HEXPRESS-07 - 16 to 300 sq mm, heavy-duty hand-operated hydraulic crimping tool, 5.32 kg - price on request
• HEXPRESS-400 - aluminium 10 to 400 sq mm; copper 16 to 400 sq mm, hand-operated hydraulic crimping tool, 7.00 kg - price on request

Related products

• HEXPRESS hand crimping tools - mechanical tools for cable lugs, 0.5 to 400 sq mm
• HEX copper tubular cable lugs - UL listed, 1.5 to 1000 sq mm
• HEX aluminium cable lugs and through connectors - 16 to 300 sq mm
• HEX HSC-100 corrosion-inhibiting compound - for aluminium joints
• All crimping tools

Frequently asked questions

What sizes does HEXPRESS-06 crimp?

Cable lugs, terminals and connectors for conductors of 16 to 300 sq mm.

Does it need dies?

Yes - interchangeable dies. Each die is matched to one lug size; tell us your lug sizes and we will confirm the die set.

Can it crimp aluminium lugs?

A compression tool crimps any lug whose barrel matches the die, copper or aluminium; for aluminium lugs use the die size the lug calls for and apply a corrosion-inhibiting compound such as HEX HSC-100 to the conductor.

How is the ram released after a crimp?

Open the release valve on the tool; the ram retracts and the dies open so the lug can be removed.

Where can I buy HEXPRESS-06 in India?

From Jai Enterprises, Bhilai and Raipur, Chhattisgarh, which supplies HEXPRESS crimping tools across India. Call +91 9340081159 with the model, quantity and delivery location and we will confirm the price, availability and lead time.
