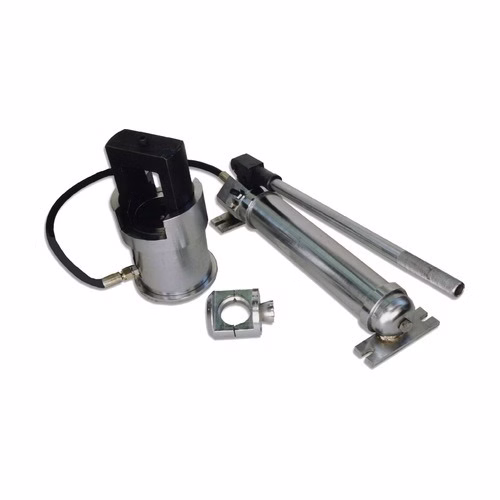

HEX HEXPRESS HY-400 Hydraulic Crimping Tool – Remote Head & Hand Pump, 120 to 400 sq mm, 16.50 kg

120 to 400 sq mm, hydraulic crimping tool with separate head and hand pump, 16.50 kg. HEXPRESS HY-400 is a hydraulic compression tool for crimping cable lugs, terminals and connectors onto conductors of 120 to 400 sq mm. The crimping head is separate from the hand pump and connected by a hydraulic hose, so the head goes where the cable is - in a trench, a duct or a crowded panel - while the pump is worked outside. Dies: R-11 to R-18 (listed in two groups: R-11 to R-15 and R-16 to R-18). Price on request.

HEXPRESS is the crimping-tool range of HEX - the brand of Brass Copper & Alloy (I) Ltd., Mumbai, an ISO 9001 company - sold alongside the HEX cable lugs, terminals and ferrules it is sized to crimp. Use it with HEX copper tubular lugs, aluminium lugs and crimping sleeves of the same sizes.

Is this the right one for you?

Check these four things before you order:

• Your lugs and connectors are within 120 to 400 sq mm.
• The crimp has to be made away from the pump - the hose-connected head reaches into trenches and panels.
• You have, or will order, the die pair for each lug size (R-11 to R-18).
• The weight (16.50 kg) suits how the tool will be carried and used.

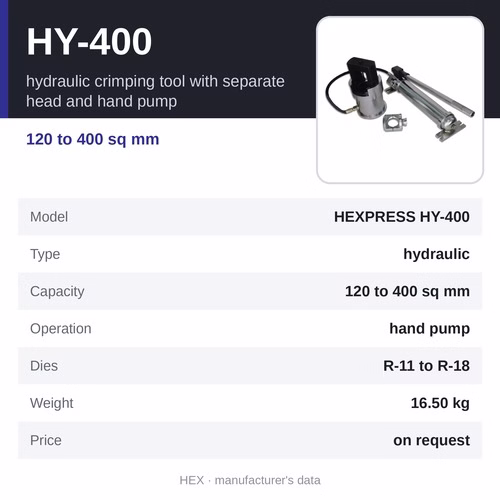

At a glance

• Price: Request price
• Model: HEXPRESS HY-400
• Type: hydraulic crimping tool with separate head and hand pump
• Crimping capacity: 120 to 400 sq mm
• Operation: hand pump, hydraulic hose to the crimping head
• Dies: R-11 to R-18 (listed in two groups: R-11 to R-15 and R-16 to R-18)
• Weight: 16.50 kg

Specifications

• Product: HEXPRESS HY-400
• Type: hydraulic crimping tool with separate head and hand pump
• Crimping capacity: 120 to 400 sq mm
• Operation: hand pump, hydraulic hose to the crimping head
• Dies: R-11 to R-18 (listed in two groups: R-11 to R-15 and R-16 to R-18)
• Weight: 16.50 kg
• For: copper and aluminium cable lugs, terminals and connectors with a barrel matched to the die
• Brand: HEX (HEXPRESS range)

Why choose HEXPRESS HY-400

• Hydraulic force, not arm strength - the pump does the work, so every crimp on a large lug is closed fully
• Dies matched to the lug size give a uniform compression joint
• Sized by conductor cross-section, like the HEX lugs and connectors they crimp
• One tool covers a wide range of sizes, so fewer tools go to site
• Remote head on a hose - crimps where a one-piece tool cannot reach

How it is used

1. Fit the die pair for the lug size in the crimping head.
2. Strip the conductor, insert it fully into the lug barrel and place the barrel between the dies.
3. Pump the hand pump; the head is on a hydraulic hose, so it can sit in a trench, duct or panel while the pump stays outside.
4. Pump until the dies have closed completely, then open the release valve, retract the ram and remove the lug.
5. Inspect the crimp, then clean and store the tool with the dies.

Where it is used

• Terminating power cables on switchgear, transformers and distribution boards
• Cable joints and terminations on site and in panel shops
• Earthing and bonding conductors
• Solar, industrial and utility installations with large copper and aluminium cables

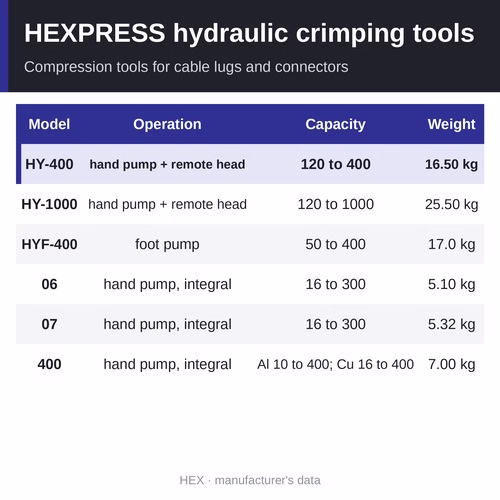

Other HEXPRESS hydraulic tools

The HEX hydraulic crimping tools overview page compares all 6 side by side.

• HEXPRESS HY-400 - 120 to 400 sq mm, hydraulic crimping tool with separate head and hand pump, 16.50 kg - price on request (this page)
• HEXPRESS HY-1000 - 120 to 1000 sq mm, hydraulic crimping tool with separate head and hand pump, 25.50 kg - price on request
• HEXPRESS HYF-400 - 50 to 400 sq mm, foot-operated hydraulic crimping tool, 17.0 kg - price on request
• HEXPRESS-06 - 16 to 300 sq mm, hand-operated hydraulic crimping tool, 5.10 kg - price on request
• HEXPRESS-07 - 16 to 300 sq mm, heavy-duty hand-operated hydraulic crimping tool, 5.32 kg - price on request
• HEXPRESS-400 - aluminium 10 to 400 sq mm; copper 16 to 400 sq mm, hand-operated hydraulic crimping tool, 7.00 kg - price on request

Related products

• HEXPRESS crimping dies - die sets for the F1-185 (round or hexagon), G-400 and G1-400 (hexagon), HY-400 and HY-1000
• HEXPRESS hand crimping tools - mechanical tools for cable lugs, 0.5 to 400 sq mm
• HEX copper tubular cable lugs - UL listed, 1.5 to 1000 sq mm
• HEX aluminium cable lugs and through connectors - 16 to 300 sq mm
• HEX HSC-100 corrosion-inhibiting compound - for aluminium joints
• All crimping tools

Frequently asked questions

What sizes does HEXPRESS HY-400 crimp?

Cable lugs, terminals and connectors for conductors of 120 to 400 sq mm.

Does it need dies?

Yes - R-11 to R-18 (listed in two groups: R-11 to R-15 and R-16 to R-18). Each die is matched to one lug size; tell us your lug sizes and we will confirm the die set.

Can it crimp aluminium lugs?

A compression tool crimps any lug whose barrel matches the die, copper or aluminium; for aluminium lugs use the die size the lug calls for and apply a corrosion-inhibiting compound such as HEX HSC-100 to the conductor.

How is the ram released after a crimp?

Open the release valve on the tool; the ram retracts and the dies open so the lug can be removed.

Where can I buy HEXPRESS HY-400 in India?

From Jai Enterprises, Bhilai and Raipur, Chhattisgarh, which supplies HEXPRESS crimping tools across India. Call +91 9340081159 with the model, quantity and delivery location and we will confirm the price, availability and lead time.

How to order

Supplied by Jai Enterprises, Bhilai and Raipur, Chhattisgarh, to sites across India. To request a price for HEXPRESS HY-400, call +91 9340081159 or send an enquiry from this page with the quantity and delivery location, and we will confirm availability, lead time and the right tool for the job.
