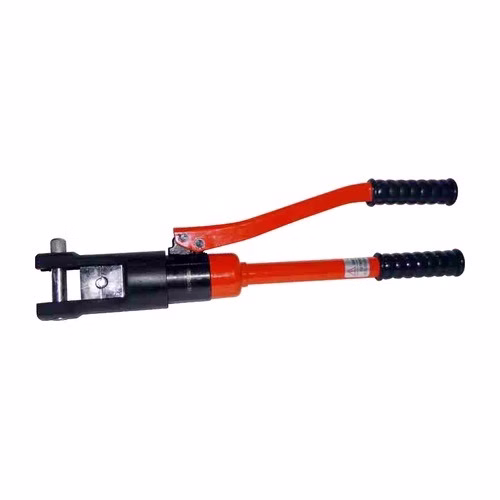

HEX HEXPRESS-400 Hydraulic Hand Crimping Tool – Al 10 to 400 sq mm, Cu 16 to 400 sq mm, 7.00 kg

Aluminium 10 to 400 sq mm; copper 16 to 400 sq mm, hand-operated hydraulic crimping tool, 7.00 kg. HEXPRESS-400 is a hydraulic compression tool for crimping cable lugs, terminals and connectors onto conductors of aluminium 10 to 400 sq mm; copper 16 to 400 sq mm. The pump is built into the tool: closing the two handles pumps the ram, so one person crimps large lugs without a separate pump. Price on request.

HEXPRESS is the crimping-tool range of HEX - the brand of Brass Copper & Alloy (I) Ltd., Mumbai, an ISO 9001 company - sold alongside the HEX cable lugs, terminals and ferrules it is sized to crimp. HEXPRESS-400 is the newest tool in the range and lists its aluminium and copper capacities separately.

Is this the right one for you?

Check these four things before you order:

• Your lugs and connectors are within aluminium 10 to 400 sq mm or copper 16 to 400 sq mm.
• You want one self-contained tool - the pump is built into the handles.
• You will confirm the die set for your lug sizes when ordering.
• The weight (7.00 kg) suits how the tool will be carried and used.

At a glance

• Price: Request price
• Model: HEXPRESS-400
• Type: hand-operated hydraulic crimping tool
• Crimping capacity: aluminium 10 to 400 sq mm; copper 16 to 400 sq mm
• Operation: integral hand pump (two handles)
• Weight: 7.00 kg

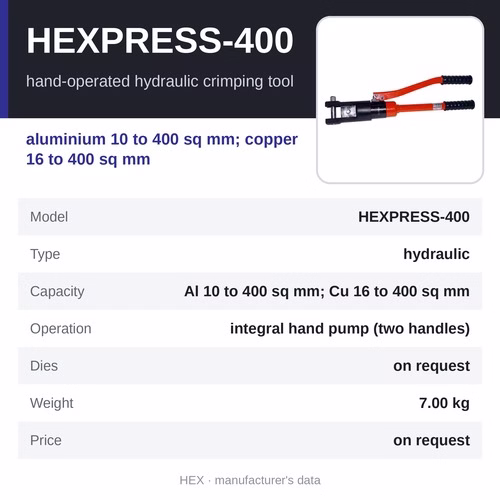

Specifications

• Product: HEXPRESS-400
• Type: hand-operated hydraulic crimping tool
• Crimping capacity: aluminium 10 to 400 sq mm; copper 16 to 400 sq mm
• Operation: integral hand pump (two handles)
• Dies: confirm the die set for your lug sizes when ordering
• Weight: 7.00 kg
• For: copper and aluminium cable lugs, terminals and connectors with a barrel matched to the die
• Brand: HEX (HEXPRESS range)
• Status: new addition to the HEXPRESS range

Why choose HEXPRESS-400

• Hydraulic force, not arm strength - the pump does the work, so every crimp on a large lug is closed fully
• Dies matched to the lug size give a uniform compression joint
• Sized by conductor cross-section, like the HEX lugs and connectors they crimp
• One tool covers a wide range of sizes, so fewer tools go to site
• Self-contained - pump, ram and head in one tool

How it is used

1. Fit the die pair for the lug size in the head.
2. Strip the conductor, insert it fully into the lug barrel and place the barrel between the dies.
3. Pump the two handles until the dies have closed completely.
4. Open the release valve to retract the ram, then remove and inspect the crimped lug.

Where it is used

• Terminating power cables on switchgear, transformers and distribution boards
• Cable joints and terminations on site and in panel shops
• Earthing and bonding conductors
• Solar, industrial and utility installations with large copper and aluminium cables

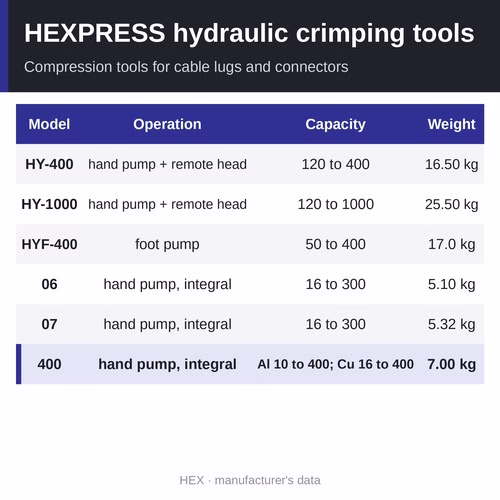

Other HEXPRESS hydraulic tools

The HEX hydraulic crimping tools overview page compares all 6 side by side.

• HEXPRESS HY-400 - 120 to 400 sq mm, hydraulic crimping tool with separate head and hand pump, 16.50 kg - price on request
• HEXPRESS HY-1000 - 120 to 1000 sq mm, hydraulic crimping tool with separate head and hand pump, 25.50 kg - price on request
• HEXPRESS HYF-400 - 50 to 400 sq mm, foot-operated hydraulic crimping tool, 17.0 kg - price on request
• HEXPRESS-06 - 16 to 300 sq mm, hand-operated hydraulic crimping tool, 5.10 kg - price on request
• HEXPRESS-07 - 16 to 300 sq mm, heavy-duty hand-operated hydraulic crimping tool, 5.32 kg - price on request
• HEXPRESS-400 - aluminium 10 to 400 sq mm; copper 16 to 400 sq mm, hand-operated hydraulic crimping tool, 7.00 kg - price on request (this page)

Related products

• HEXPRESS hand crimping tools - mechanical tools for cable lugs, 0.5 to 400 sq mm
• HEX copper tubular cable lugs - UL listed, 1.5 to 1000 sq mm
• HEX aluminium cable lugs and through connectors - 16 to 300 sq mm
• HEX HSC-100 corrosion-inhibiting compound - for aluminium joints
• All crimping tools

Frequently asked questions

What sizes does HEXPRESS-400 crimp?

Cable lugs, terminals and connectors for conductors of aluminium 10 to 400 sq mm; copper 16 to 400 sq mm.

Does it need dies?

The catalogue does not list dies for this tool; tell us your lug sizes and we will confirm the die set.

Can it crimp aluminium lugs?

Yes - HEXPRESS-400 is rated for aluminium 10 to 400 sq mm and copper 16 to 400 sq mm.

How is the ram released after a crimp?

Open the release valve on the tool; the ram retracts and the dies open so the lug can be removed.

Where can I buy HEXPRESS-400 in India?

From Jai Enterprises, Bhilai and Raipur, Chhattisgarh, which supplies HEXPRESS crimping tools across India. Call +91 9340081159 with the model, quantity and delivery location and we will confirm the price, availability and lead time.

How to order

Supplied by Jai Enterprises, Bhilai and Raipur, Chhattisgarh, to sites across India. To request a price for HEXPRESS-400, call +91 9340081159 or send an enquiry from this page with the quantity and delivery location, and we will confirm availability, lead time and the right tool for the job.
