HEX HEXPRESS Hand Crimping Tools for Cable Lugs – Mechanical Crimpers from 0.5 to 400 sq mm

HEXPRESS hand crimping tools are mechanical compression tools for copper and aluminium cable lugs and terminals from 0.5 to 400 sq mm. The force comes from the handles - there is nothing hydraulic to service - and the tools are sized by conductor cross-section like the HEX lugs they crimp. HEXPRESS is the crimping-tool range of HEX - the brand of Brass Copper & Alloy (I) Ltd., Mumbai, an ISO 9001 company - sold alongside the HEX cable lugs, terminals and ferrules it is sized to crimp.

The range runs from the 340 g A-6 for 0.5 to 6 sq mm, through the dieless H-50 and H-70, the F1-185 with round or hexagon dies, and the HEXPRESS-17 and -18 copper tube terminal tools, up to the G-400 and gear-operated G1-400 for 400 sq mm. Each tool has its own page; prices are on request.

Choose your hand crimping tool

All ten tools are supplied at a price on request.

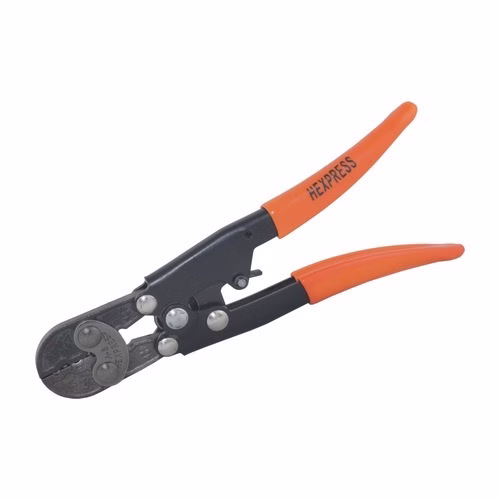

• HEXPRESS A-6 - 0.5 to 6 sq mm, hand crimping tool, 340 g - price on request
• HEXPRESS B-16 - 0.5 to 16 sq mm, hand crimping tool, 600 g - price on request
• HEXPRESS H-50 - tubular (socket) lugs 25, 35 and 50 sq mm; ring-type terminals 16, 25 and 35 sq mm, dieless hand crimping tool, 1.70 kg - price on request
• HEXPRESS H-70 - 16 to 70 sq mm, dieless hand crimping tool for ring-type terminals only, 2.95 kg - price on request

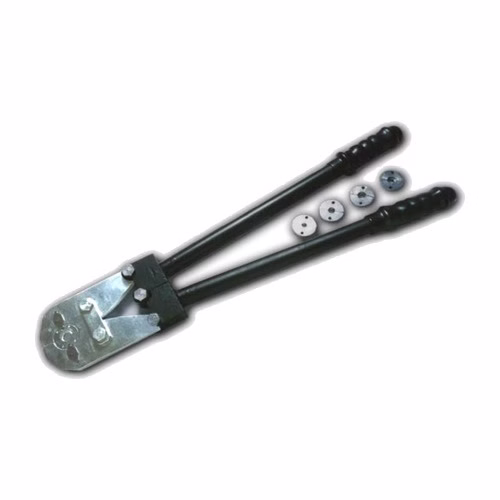

• HEXPRESS F1-185 (round dies) - 10 to 185 sq mm, hand crimping tool with round-profile dies, 6.45 kg - price on request
• HEXPRESS F1-185 (hex dies) - 10 to 185 sq mm, hand crimping tool with hexagon-profile dies, 6.45 kg - price on request

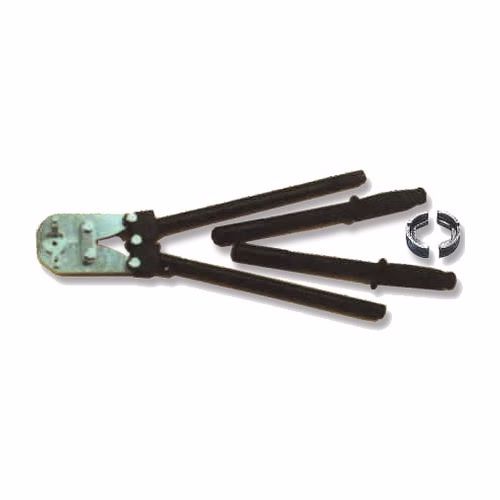

• HEXPRESS G-400 - 25 to 400 sq mm, hand crimping tool with hexagon-profile dies, 9.60 kg - price on request
• HEXPRESS G1-400 - 50 to 400 sq mm, gear-operated hand crimping tool with hexagon-profile dies, 9.50 kg - price on request
• HEXPRESS-17 - 6 to 50 sq mm, copper tube terminal crimping tool, 1.30 kg - price on request
• HEXPRESS-18 - 25 to 150 sq mm, copper tube terminal crimping tool, 4.0 kg - price on request

How to choose

Match the tool to the largest lug you crimp: A-6 (6 sq mm) and B-16 (16 sq mm) for small terminals, HEXPRESS-17 (50 sq mm) and HEXPRESS-18 (150 sq mm) for copper tube terminals, H-50 and H-70 where you want no dies, F1-185 for 10 to 185 sq mm with round or hexagon dies, and G-400 or the gear-operated G1-400 for up to 400 sq mm.

Above 400 sq mm, or for many large crimps a day, move to the HEXPRESS hydraulic tools.

At a glance

• Tools: A-6, B-16, H-50, H-70, F1-185 (round or hexagon dies), G-400, G1-400, HEXPRESS-17, HEXPRESS-18
• Capacity: 0.5 to 400 sq mm
• Dies: none (jaw tools and dieless tools) or round / hexagon die sets
• Weight: 340 g to 9.60 kg
• Price: on request

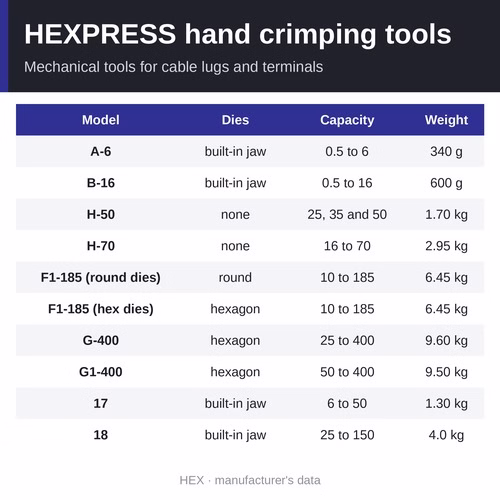

The range at a glance

• HEXPRESS A-6: 0.5 to 6 sq mm; 340 g
• HEXPRESS B-16: 0.5 to 16 sq mm; 600 g
• HEXPRESS H-50: tubular (socket) lugs 25, 35 and 50 sq mm; ring-type terminals 16, 25 and 35 sq mm; 1.70 kg
• HEXPRESS H-70: 16 to 70 sq mm; 2.95 kg
• HEXPRESS F1-185 (round dies): 10 to 185 sq mm; 6.45 kg
• HEXPRESS F1-185 (hex dies): 10 to 185 sq mm; 6.45 kg
• HEXPRESS G-400: 25 to 400 sq mm; 9.60 kg
• HEXPRESS G1-400: 50 to 400 sq mm; 9.50 kg
• HEXPRESS-17: 6 to 50 sq mm; 1.30 kg
• HEXPRESS-18: 25 to 150 sq mm; 4.0 kg

Why choose a HEXPRESS hand tool

• Mechanical - nothing to leak or service
• A tool for every size band from 0.5 to 400 sq mm
• Dieless options for quick work on site
• Round or hexagon dies on the F1-185 to suit the lug and the specification
• Sized like the HEX lugs they crimp

How they are used

1. Choose the tool by the largest lug size.
2. Fit the die pair (or choose the jaw position) for the lug.
3. Insert the stripped conductor fully, place the barrel in the jaw and close the handles completely.

Where it is used

• Panel wiring and control-panel building
• Terminating cables on switchgear and distribution boards
• Electrical contracting and site maintenance
• Workshops crimping copper lugs and ring terminals

Related products

• HEXPRESS crimping dies - die sets for the F1-185 (round or hexagon), G-400 and G1-400 (hexagon), HY-400 and HY-1000
• HEXPRESS hydraulic crimping tools - hand, foot and remote-head hydraulic tools, 10 to 1000 sq mm
• HEXPRESS terminal and ferrule crimping tools - for insulated terminals and end-sealing ferrules
• HEX copper tubular cable lugs - UL listed, 1.5 to 1000 sq mm
• HEX ring-type copper terminals - insulated and non-insulated
• All crimping tools

Frequently asked questions

Round or hexagon dies - which do I need?

Both make a compression crimp on the lug barrel. Hexagon dies leave the familiar six-sided crimp; round dies leave a round one. Follow the lug specification or the practice on your site; the F1-185 is offered with either.

What is a dieless tool?

A tool whose jaw has fixed crimping positions for set sizes, so there are no dies to fit - the H-50 covers 25, 35 and 50 sq mm lugs and 16, 25 and 35 sq mm ring terminals; the H-70 covers ring terminals from 16 to 70 sq mm.

Up to what size can a hand tool crimp?

The G-400 and G1-400 crimp up to 400 sq mm; above that, use a HEXPRESS hydraulic tool.

Do the die tools come with dies?

Die sets are listed by number on the die pages (F1-185: R-1 to R-13; G-400 and G1-400: H-50 to H-400, though HEX also lists R-11 to R-18 for the G1-400) and are ordered for the sizes you crimp.

Where can I buy HEXPRESS hand crimping tools in India?

From Jai Enterprises, Bhilai and Raipur, Chhattisgarh, which supplies HEXPRESS crimping tools across India. Call +91 9340081159 with the model, quantity and delivery location and we will confirm the price, availability and lead time.

How to order

Supplied by Jai Enterprises, Bhilai and Raipur, Chhattisgarh, to sites across India. Pick the size from the list above, then call +91 9340081159 or send an enquiry with the model, quantity and delivery location - we will confirm stock, lead time and the delivered cost of the tool.
