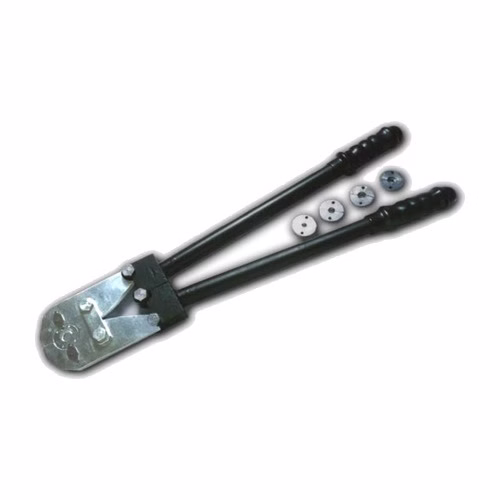

HEX HEXPRESS F1-185 Hand Crimping Tool – Round Dies R-1 to R-13, 10 to 185 sq mm, 6.45 kg

10 to 185 sq mm, hand crimping tool with round-profile dies, 6.45 kg. HEXPRESS F1-185 (round dies) is a mechanical crimping tool: the force comes from the handles, with no hydraulics to maintain. It uses round-profile dies R-1 to R-13, one for each lug size, so the compression is the same on every joint. Price on request.

HEXPRESS is the crimping-tool range of HEX - the brand of Brass Copper & Alloy (I) Ltd., Mumbai, an ISO 9001 company - sold alongside the HEX cable lugs, terminals and ferrules it is sized to crimp. Use it with HEX copper tubular lugs and crimping sleeves of the same sizes.

Is this the right one for you?

Check these four things before you order:

• Your lugs and terminals are within 10 to 185 sq mm.
• You prefer a mechanical tool with nothing hydraulic to service.
• You will order the dies for the sizes you crimp.
• The weight (6.45 kg) suits how the tool will be carried and used.

At a glance

• Price: Request price
• Model: HEXPRESS F1-185 (round dies)
• Type: hand crimping tool with round-profile dies
• Crimping capacity: 10 to 185 sq mm
• Dies: round-profile dies R-1 to R-13
• Weight: 6.45 kg

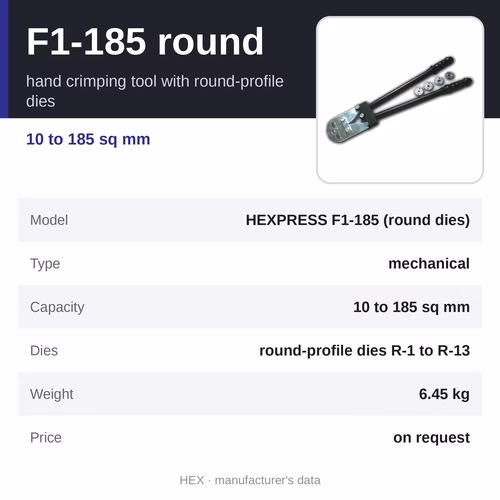

Specifications

• Product: HEXPRESS F1-185 (round dies)
• Type: hand crimping tool with round-profile dies
• Crimping capacity: 10 to 185 sq mm
• Dies: round-profile dies R-1 to R-13
• Weight: 6.45 kg
• Operation: hand operated
• For: cable lugs and terminals in the stated range
• Brand: HEX (HEXPRESS range)

Why choose HEXPRESS F1-185 (round dies)

• Mechanical - nothing to leak or service
• Sized by conductor cross-section, like the HEX lugs it crimps
• One die per size for a repeatable compression
• Long handles for the force a 185 sq mm crimp needs

How it is used

1. Fit the die for the lug size.
2. Strip the conductor and insert it fully into the lug barrel.
3. Place the barrel in the jaw between the dies and close the handles fully.
4. Remove the lug and check that the crimp is complete and centred on the barrel.

Where it is used

• Panel wiring and control-panel building
• Terminating cables on switchgear and distribution boards
• Electrical contracting and site maintenance
• Workshops crimping copper lugs and ring terminals

Other HEXPRESS hand crimping tools

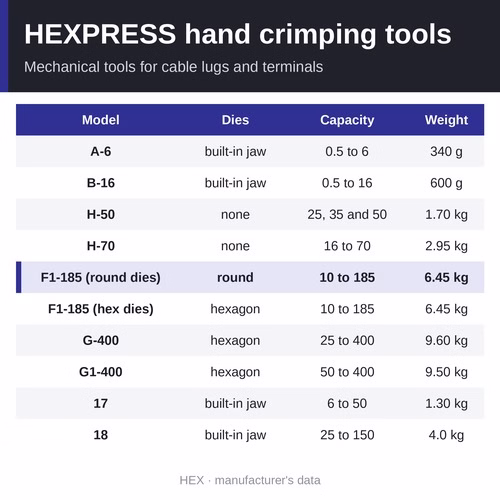

The HEX hand crimping tools overview page compares all 10 side by side.

• HEXPRESS A-6 - 0.5 to 6 sq mm, hand crimping tool, 340 g - price on request
• HEXPRESS B-16 - 0.5 to 16 sq mm, hand crimping tool, 600 g - price on request
• HEXPRESS H-50 - tubular (socket) lugs 25, 35 and 50 sq mm; ring-type terminals 16, 25 and 35 sq mm, dieless hand crimping tool, 1.70 kg - price on request
• HEXPRESS H-70 - 16 to 70 sq mm, dieless hand crimping tool for ring-type terminals only, 2.95 kg - price on request
• HEXPRESS F1-185 (round dies) - 10 to 185 sq mm, hand crimping tool with round-profile dies, 6.45 kg - price on request (this page)
• HEXPRESS F1-185 (hex dies) - 10 to 185 sq mm, hand crimping tool with hexagon-profile dies, 6.45 kg - price on request
• HEXPRESS G-400 - 25 to 400 sq mm, hand crimping tool with hexagon-profile dies, 9.60 kg - price on request
• HEXPRESS G1-400 - 50 to 400 sq mm, gear-operated hand crimping tool with hexagon-profile dies, 9.50 kg - price on request
• HEXPRESS-17 - 6 to 50 sq mm, copper tube terminal crimping tool, 1.30 kg - price on request
• HEXPRESS-18 - 25 to 150 sq mm, copper tube terminal crimping tool, 4.0 kg - price on request

Related products

• HEXPRESS crimping dies - die sets for the F1-185 (round or hexagon), G-400 and G1-400 (hexagon), HY-400 and HY-1000
• HEXPRESS hydraulic crimping tools - hand, foot and remote-head hydraulic tools, 10 to 1000 sq mm
• HEX copper tubular cable lugs - UL listed, 1.5 to 1000 sq mm
• HEX copper in-line connectors and crimping sleeves
• All crimping tools

Frequently asked questions

What sizes does HEXPRESS F1-185 (round dies) crimp?

10 to 185 sq mm.

Does it need dies?

Yes - round-profile dies R-1 to R-13, one per lug size.

Is it hydraulic?

No - it is a mechanical tool worked by hand; for larger sizes see the HEXPRESS hydraulic tools.

How heavy is it?

6.45 kg.

Where can I buy HEXPRESS F1-185 (round dies) in India?

From Jai Enterprises, Bhilai and Raipur, Chhattisgarh, which supplies HEXPRESS crimping tools across India. Call +91 9340081159 with the model, quantity and delivery location and we will confirm the price, availability and lead time.

How to order

Supplied by Jai Enterprises, Bhilai and Raipur, Chhattisgarh, to sites across India. To request a price for HEXPRESS F1-185 (round dies), call +91 9340081159 or send an enquiry from this page with the quantity and delivery location, and we will confirm availability, lead time and the right tool for the job.
