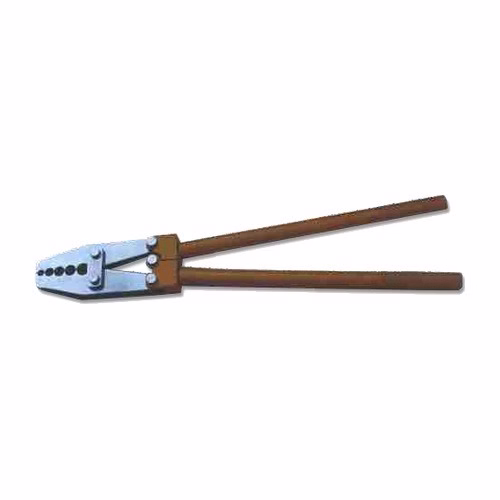

HEX HEXPRESS H-70 Dieless Crimping Tool – Ring Terminals 16 to 70 sq mm, 2.95 kg

16 to 70 sq mm, dieless hand crimping tool for ring-type terminals only, 2.95 kg. HEXPRESS H-70 is a mechanical crimping tool: the force comes from the handles, with no hydraulics to maintain. It is dieless - the jaw itself has the crimping positions, so there are no dies to fit or lose. Price on request.

HEXPRESS is the crimping-tool range of HEX - the brand of Brass Copper & Alloy (I) Ltd., Mumbai, an ISO 9001 company - sold alongside the HEX cable lugs, terminals and ferrules it is sized to crimp. Use it with HEX ring-type terminals in the stated sizes.

Is this the right one for you?

Check these four things before you order:

• Your ring-type terminals are within 16 to 70 sq mm.
• You prefer a mechanical tool with nothing hydraulic to service.
• You want no dies to change between sizes.
• The weight (2.95 kg) suits how the tool will be carried and used.

At a glance

• Price: Request price
• Model: HEXPRESS H-70
• Type: dieless hand crimping tool for ring-type terminals only
• Crimping capacity: 16 to 70 sq mm
• Dies: none - dieless
• Weight: 2.95 kg

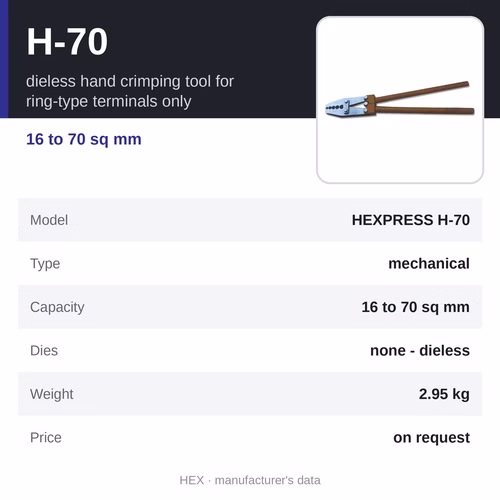

Specifications

• Product: HEXPRESS H-70
• Type: dieless hand crimping tool for ring-type terminals only
• Crimping capacity: 16 to 70 sq mm
• Dies: none - dieless
• Weight: 2.95 kg
• Operation: hand operated
• For: ring-type terminals
• Brand: HEX (HEXPRESS range)

Why choose HEXPRESS H-70

• Mechanical - nothing to leak or service
• Sized by conductor cross-section, like the HEX ring terminals it crimps
• No dies to fit, lose or change
• Long handles for the force a 70 sq mm crimp needs

How it is used

1. Choose the jaw position for the ring terminal size.
2. Strip the conductor and insert it fully into the ring terminal barrel.
3. Place the barrel in the jaw and close the handles fully.
4. Remove the ring terminal and check that the crimp is complete and centred on the barrel.

Where it is used

• Panel wiring and control-panel building
• Terminating cables on switchgear and distribution boards
• Electrical contracting and site maintenance
• Workshops crimping copper lugs and ring terminals

Other HEXPRESS hand crimping tools

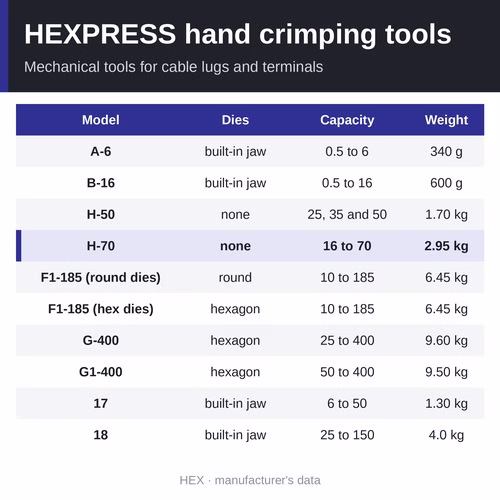

The HEX hand crimping tools overview page compares all 10 side by side.

• HEXPRESS A-6 - 0.5 to 6 sq mm, hand crimping tool, 340 g - price on request
• HEXPRESS B-16 - 0.5 to 16 sq mm, hand crimping tool, 600 g - price on request
• HEXPRESS H-50 - tubular (socket) lugs 25, 35 and 50 sq mm; ring-type terminals 16, 25 and 35 sq mm, dieless hand crimping tool, 1.70 kg - price on request
• HEXPRESS H-70 - 16 to 70 sq mm, dieless hand crimping tool for ring-type terminals only, 2.95 kg - price on request (this page)
• HEXPRESS F1-185 (round dies) - 10 to 185 sq mm, hand crimping tool with round-profile dies, 6.45 kg - price on request
• HEXPRESS F1-185 (hex dies) - 10 to 185 sq mm, hand crimping tool with hexagon-profile dies, 6.45 kg - price on request
• HEXPRESS G-400 - 25 to 400 sq mm, hand crimping tool with hexagon-profile dies, 9.60 kg - price on request
• HEXPRESS G1-400 - 50 to 400 sq mm, gear-operated hand crimping tool with hexagon-profile dies, 9.50 kg - price on request
• HEXPRESS-17 - 6 to 50 sq mm, copper tube terminal crimping tool, 1.30 kg - price on request
• HEXPRESS-18 - 25 to 150 sq mm, copper tube terminal crimping tool, 4.0 kg - price on request

Related products

• HEXPRESS hydraulic crimping tools - hand, foot and remote-head hydraulic tools, 10 to 1000 sq mm
• HEX copper tubular cable lugs - UL listed, 1.5 to 1000 sq mm
• HEX ring-type copper terminals - insulated and non-insulated
• All crimping tools

Frequently asked questions

What sizes does HEXPRESS H-70 crimp?

16 to 70 sq mm.

Does it need dies?

No - it is a dieless tool; the crimping positions are in the jaw.

Is it hydraulic?

No - it is a mechanical tool worked by hand; for larger sizes see the HEXPRESS hydraulic tools.

How heavy is it?

2.95 kg.

Where can I buy HEXPRESS H-70 in India?

From Jai Enterprises, Bhilai and Raipur, Chhattisgarh, which supplies HEXPRESS crimping tools across India. Call +91 9340081159 with the model, quantity and delivery location and we will confirm the price, availability and lead time.

How to order

Supplied by Jai Enterprises, Bhilai and Raipur, Chhattisgarh, to sites across India. To request a price for HEXPRESS H-70, call +91 9340081159 or send an enquiry from this page with the quantity and delivery location, and we will confirm availability, lead time and the right tool for the job.
