HEX HEXPRESS Crimping Tools for Insulated Terminals & End-Sealing Ferrules – 0.25 to 16 sq mm

HEXPRESS terminal and ferrule crimpers are the small tools of panel and control wiring: they crimp insulated ring, fork, pin and snap-on terminals and end-sealing (bootlace) ferrules from 0.25 to 16 sq mm. HEXPRESS is the crimping-tool range of HEX - the brand of Brass Copper & Alloy (I) Ltd., Mumbai, an ISO 9001 company - sold alongside the HEX cable lugs, terminals and ferrules it is sized to crimp.

Six are ratchet tools - the jaws stay closed until the crimp reaches full depth, so every joint is the same - and two (HEXPRESS-19 and -20) are plier-type ferrule crimpers. Each tool has its own page; prices are on request.

Choose your crimper

All eight tools are supplied at a price on request.

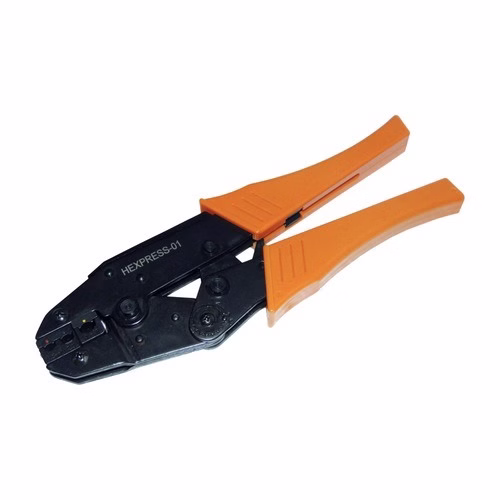

• HEXPRESS-01 - insulated terminals, 1.5, 2.5 and 4 to 6 sq mm, 556 g - price on request
• HEXPRESS-02 - insulated terminals and end-sealing ferrules, 0.5 to 2.5 sq mm, 414 g - price on request

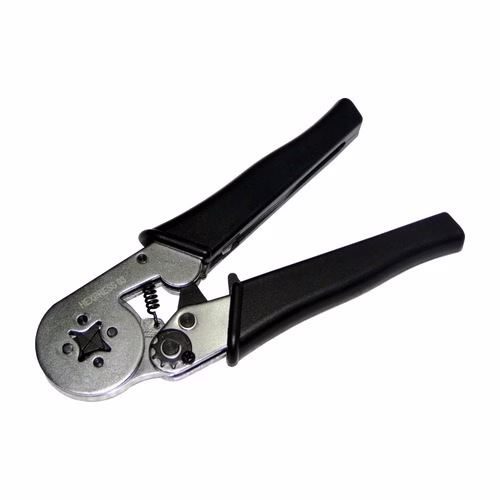

• HEXPRESS-03 - end-sealing (bootlace) ferrules, 0.25 to 10 sq mm, 420 g - price on request
• HEXPRESS-04 - end-sealing (bootlace) ferrules, 6 to 16 sq mm, 556 g - price on request
• HEXPRESS-05 - insulated terminals, end-sealing ferrules and ordinary (non-insulated) lugs, 0.5 to 6 sq mm, 702 g - price on request
• HEXPRESS-12 - snap-on (quick-disconnect) terminals, 1.5, 2.5 and 4 to 6 sq mm, 548 g - price on request
• HEXPRESS-19 - insulated and non-insulated end-sealing ferrules, 1.5 to 6 sq mm - price on request
• HEXPRESS-20 - insulated and non-insulated end-sealing ferrules, 0.5 to 16 sq mm - price on request

How to choose

Choose by what you crimp. Insulated terminals (red, blue, yellow): HEXPRESS-01; snap-on terminals: HEXPRESS-12; end-sealing ferrules: HEXPRESS-03 (0.25 to 10 sq mm), HEXPRESS-04 (6 to 16 sq mm), or the plier-type HEXPRESS-19 and -20; terminals and ferrules with one tool: HEXPRESS-02 (0.5 to 2.5 sq mm) or the 3-in-1 HEXPRESS-05 (0.5 to 6 sq mm), which also crimps small non-insulated lugs.

At a glance

• Tools: HEXPRESS-01, -02, -03, -04, -05, -12, -19, -20
• Capacity: 0.25 to 16 sq mm
• Types: ratchet (6) and plier (2)
• HEX insulated-terminal sizes: 1.5 sq mm (red), 2.5 sq mm (blue) and 4 to 6 sq mm (yellow)
• Price: on request

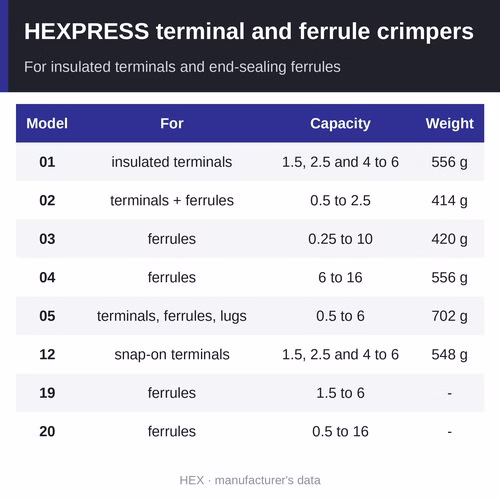

The range at a glance

• HEXPRESS-01: insulated terminals; 1.5, 2.5 and 4 to 6 sq mm; 556 g
• HEXPRESS-02: insulated terminals and end-sealing ferrules; 0.5 to 2.5 sq mm; 414 g
• HEXPRESS-03: end-sealing (bootlace) ferrules; 0.25 to 10 sq mm; 420 g
• HEXPRESS-04: end-sealing (bootlace) ferrules; 6 to 16 sq mm; 556 g
• HEXPRESS-05: insulated terminals, end-sealing ferrules and ordinary (non-insulated) lugs; 0.5 to 6 sq mm; 702 g
• HEXPRESS-12: snap-on (quick-disconnect) terminals; 1.5, 2.5 and 4 to 6 sq mm; 548 g
• HEXPRESS-19: insulated and non-insulated end-sealing ferrules; 1.5 to 6 sq mm
• HEXPRESS-20: insulated and non-insulated end-sealing ferrules; 0.5 to 16 sq mm

Why choose a HEXPRESS crimper

• Ratchet tools crimp to the same depth every time
• A tool for each terminal type - insulated, snap-on, ferrule
• 2-in-1 and 3-in-1 tools cut the number of tools on the bench
• Sized by conductor cross-section, like the HEX terminals they crimp
• Light - the ratchet tools weigh 414 to 702 g

How they are used

1. Strip the conductor to the terminal or ferrule length and insert it fully.
2. Place the terminal in the nest for its size or colour.
3. Squeeze until the ratchet releases (or fully, on a plier tool), then check the crimp.

Where it is used

• Control panels, PLC and instrumentation wiring
• Switchboards and motor control centres
• Machine and appliance wiring
• Lighting and building wiring

Related products

• HEX ring-type copper terminals - insulated and non-insulated
• HEX end-sealing (bootlace) ferrules - bare, insulated and twin
• HEX snap-on quick-disconnect terminals
• HEXPRESS cutters and strippers - wire and cable cutters, strippers and the cable-tie tool
• HEXPRESS hand crimping tools - mechanical tools for cable lugs, 0.5 to 400 sq mm
• All crimping tools

Frequently asked questions

What is the difference between a ratchet and a plier crimper?

A ratchet tool locks the jaws until the crimp reaches full depth and then releases, so the depth cannot vary; a plier tool relies on the user squeezing fully.

Which tool for bootlace ferrules?

HEXPRESS-03 for 0.25 to 10 sq mm, HEXPRESS-04 for 6 to 16 sq mm, or the plier-type HEXPRESS-19 (1.5 to 6 sq mm) and HEXPRESS-20 (0.5 to 16 sq mm).

Which tool for red, blue and yellow insulated terminals?

HEXPRESS-01, which crimps 1.5, 2.5 and 4 to 6 sq mm; HEXPRESS-05 covers the same terminals plus ferrules and small lugs.

Can one tool do terminals and ferrules?

Yes - HEXPRESS-02 (0.5 to 2.5 sq mm) and HEXPRESS-05 (0.5 to 6 sq mm).

Where can I buy HEXPRESS terminal and ferrule crimping tools in India?

From Jai Enterprises, Bhilai and Raipur, Chhattisgarh, which supplies HEXPRESS crimping tools across India. Call +91 9340081159 with the model, quantity and delivery location and we will confirm the price, availability and lead time.

How to order

Supplied by Jai Enterprises, Bhilai and Raipur, Chhattisgarh, to sites across India. Pick the size from the list above, then call +91 9340081159 or send an enquiry with the model, quantity and delivery location - we will confirm stock, lead time and the delivered cost of the tool.
