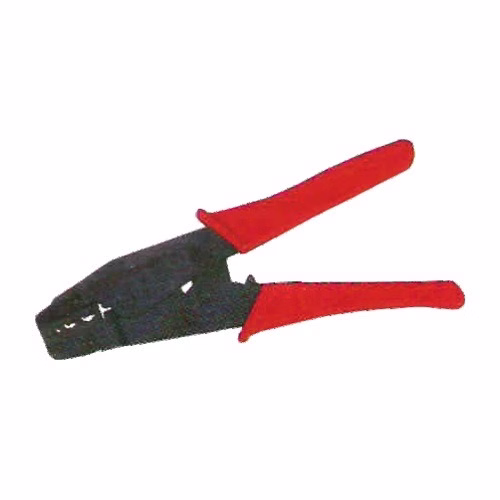

HEX HEXPRESS-02 2-in-1 Ratchet Crimping Tool – Terminals & End-Sealing Ferrules, 0.5 to 2.5 sq mm, 414 g

Insulated terminals and end-sealing ferrules, 0.5 to 2.5 sq mm, 414 g. HEXPRESS-02 is a 2-in-1 ratchet crimping tool for insulated terminals and end-sealing ferrules. The ratchet holds the jaws closed until the crimp has reached full depth, then releases - so every terminal is crimped to the same depth whoever uses the tool. Price on request.

HEXPRESS is the crimping-tool range of HEX - the brand of Brass Copper & Alloy (I) Ltd., Mumbai, an ISO 9001 company - sold alongside the HEX cable lugs, terminals and ferrules it is sized to crimp. Use it with HEX insulated terminals and end-sealing ferrules.

Is this the right one for you?

Check these four things before you order:

• You are crimping insulated terminals and end-sealing ferrules.
• The conductor sizes are within 0.5 to 2.5 sq mm.
• You want a ratchet so the crimp depth is the same every time.
• You crimp these sizes often enough to keep a dedicated tool.

At a glance

• Price: Request price
• Model: HEXPRESS-02
• Type: 2-in-1 ratchet crimping tool for insulated terminals and end-sealing ferrules
• For: insulated terminals and end-sealing ferrules
• Crimping capacity: 0.5 to 2.5 sq mm
• Weight: 414 g

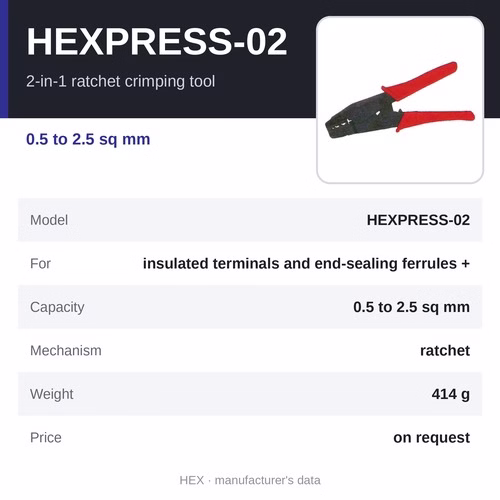

Specifications

• Product: HEXPRESS-02
• Type: 2-in-1 ratchet crimping tool for insulated terminals and end-sealing ferrules
• For: insulated terminals and end-sealing ferrules
• Crimping capacity: 0.5 to 2.5 sq mm
• Mechanism: ratchet, releases at full crimp depth
• Weight: 414 g
• Brand: HEX (HEXPRESS range)

Why choose HEXPRESS-02

• Ratchet mechanism - the same crimp depth on every terminal
• Made for insulated terminals and end-sealing ferrules
• Sized by conductor cross-section, like the HEX terminals it crimps
• Two jobs in one tool
• 414 g - light enough for all-day panel wiring

How it is used

1. Strip the conductor to the length the terminal or ferrule needs and insert it fully.
2. Place the terminal or ferrule in the nest for its size.
3. Squeeze the handles until the ratchet releases, then remove the terminal or ferrule and check the crimp.

Where it is used

• Control panels, PLC and instrumentation wiring
• Switchboards and motor control centres
• Machine and appliance wiring
• Lighting and building wiring

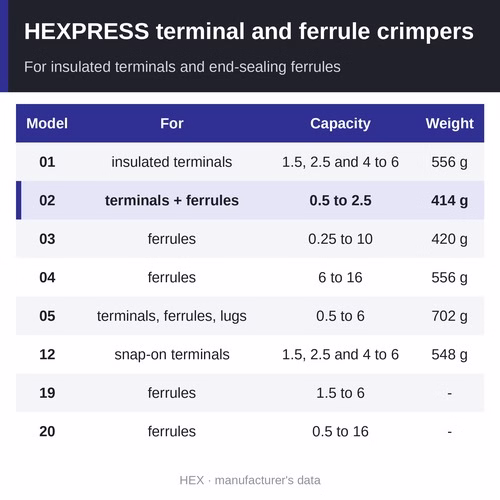

Other HEXPRESS terminal and ferrule crimpers

The HEX terminal and ferrule crimping tools overview page compares all 8 side by side.

• HEXPRESS-01 - insulated terminals, 1.5, 2.5 and 4 to 6 sq mm, 556 g - price on request
• HEXPRESS-02 - insulated terminals and end-sealing ferrules, 0.5 to 2.5 sq mm, 414 g - price on request (this page)
• HEXPRESS-03 - end-sealing (bootlace) ferrules, 0.25 to 10 sq mm, 420 g - price on request
• HEXPRESS-04 - end-sealing (bootlace) ferrules, 6 to 16 sq mm, 556 g - price on request
• HEXPRESS-05 - insulated terminals, end-sealing ferrules and ordinary (non-insulated) lugs, 0.5 to 6 sq mm, 702 g - price on request
• HEXPRESS-12 - snap-on (quick-disconnect) terminals, 1.5, 2.5 and 4 to 6 sq mm, 548 g - price on request
• HEXPRESS-19 - insulated and non-insulated end-sealing ferrules, 1.5 to 6 sq mm - price on request
• HEXPRESS-20 - insulated and non-insulated end-sealing ferrules, 0.5 to 16 sq mm - price on request

Related products

• HEX end-sealing (bootlace) ferrules - bare, insulated and twin
• HEX pin and blade terminals
• HEXPRESS cutters and strippers - wire and cable cutters, strippers and the cable-tie tool
• HEXPRESS hand crimping tools - mechanical tools for cable lugs, 0.5 to 400 sq mm
• All crimping tools

Frequently asked questions

What does HEXPRESS-02 crimp?

Insulated terminals and end-sealing ferrules, 0.5 to 2.5 sq mm.

Is it a ratchet tool?

Yes - the ratchet keeps the jaws closed until the crimp is complete and then releases.

Which nest do I use?

The nest marked for the conductor size of the terminal or ferrule.

Does it crimp copper lugs?

No - it is made for insulated terminals and end-sealing ferrules; for copper lugs see the HEXPRESS hand crimping tools.

Where can I buy HEXPRESS-02 in India?

From Jai Enterprises, Bhilai and Raipur, Chhattisgarh, which supplies HEXPRESS crimping tools across India. Call +91 9340081159 with the model, quantity and delivery location and we will confirm the price, availability and lead time.

How to order

Supplied by Jai Enterprises, Bhilai and Raipur, Chhattisgarh, to sites across India. To request a price for HEXPRESS-02, call +91 9340081159 or send an enquiry from this page with the quantity and delivery location, and we will confirm availability, lead time and the right tool for the job.
