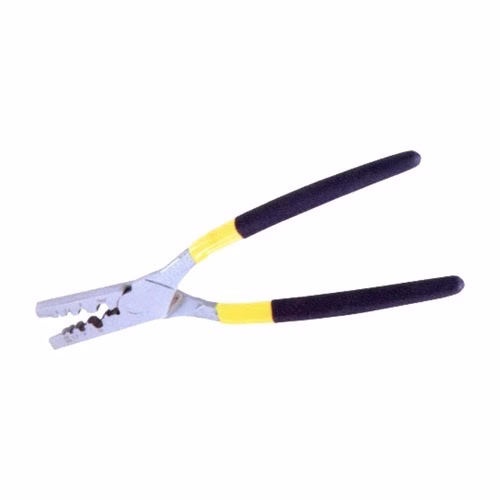

HEX HEXPRESS-20 Ferrule Crimping Plier – Insulated & Non-Insulated End-Sealing Ferrules, 0.5 to 16 sq mm

Insulated and non-insulated end-sealing ferrules, 0.5 to 16 sq mm. HEXPRESS-20 is a plier-type crimping tool for insulated and non-insulated end-sealing ferrules. The jaws have a row of crimping nests, one for each ferrule size, and the crimp is made with a single squeeze of the handles. Price on request.

HEXPRESS is the crimping-tool range of HEX - the brand of Brass Copper & Alloy (I) Ltd., Mumbai, an ISO 9001 company - sold alongside the HEX cable lugs, terminals and ferrules it is sized to crimp. Use it with HEX end-sealing ferrules from 0.5 to 16 sq mm, insulated or bare.

Is this the right one for you?

Check these four things before you order:

• You are crimping insulated and non-insulated end-sealing ferrules.
• The conductor sizes are within 0.5 to 16 sq mm.
• You want a simple plier-type tool.
• You crimp both insulated and bare ferrules.

At a glance

• Price: Request price
• Model: HEXPRESS-20
• Type: plier-type crimping tool for insulated and non-insulated end-sealing ferrules
• For: insulated and non-insulated end-sealing ferrules
• Crimping capacity: 0.5 to 16 sq mm

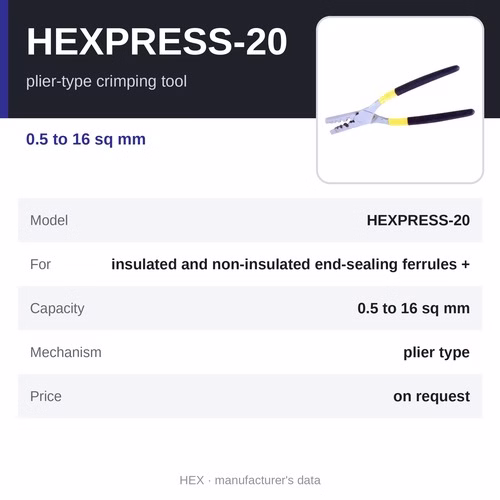

Specifications

• Product: HEXPRESS-20
• Type: plier-type crimping tool for insulated and non-insulated end-sealing ferrules
• For: insulated and non-insulated end-sealing ferrules
• Crimping capacity: 0.5 to 16 sq mm
• Mechanism: plier type
• Brand: HEX (HEXPRESS range)

Why choose HEXPRESS-20

• Plier type - light and simple
• Made for insulated and non-insulated end-sealing ferrules
• Sized by conductor cross-section, like the HEX terminals it crimps

How it is used

1. Strip the conductor to the length the ferrule needs and insert it fully.
2. Place the ferrule in the nest for its size.
3. Squeeze the handles fully, then remove the ferrule and check the crimp.

Where it is used

• Control panels, PLC and instrumentation wiring
• Switchboards and motor control centres
• Machine and appliance wiring
• Lighting and building wiring

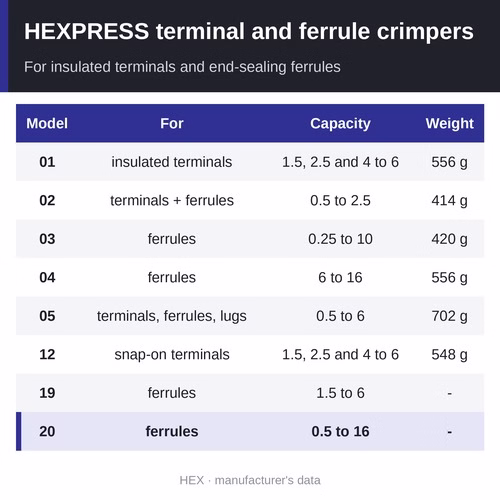

Other HEXPRESS terminal and ferrule crimpers

The HEX terminal and ferrule crimping tools overview page compares all 8 side by side.

• HEXPRESS-01 - insulated terminals, 1.5, 2.5 and 4 to 6 sq mm, 556 g - price on request
• HEXPRESS-02 - insulated terminals and end-sealing ferrules, 0.5 to 2.5 sq mm, 414 g - price on request
• HEXPRESS-03 - end-sealing (bootlace) ferrules, 0.25 to 10 sq mm, 420 g - price on request
• HEXPRESS-04 - end-sealing (bootlace) ferrules, 6 to 16 sq mm, 556 g - price on request
• HEXPRESS-05 - insulated terminals, end-sealing ferrules and ordinary (non-insulated) lugs, 0.5 to 6 sq mm, 702 g - price on request
• HEXPRESS-12 - snap-on (quick-disconnect) terminals, 1.5, 2.5 and 4 to 6 sq mm, 548 g - price on request
• HEXPRESS-19 - insulated and non-insulated end-sealing ferrules, 1.5 to 6 sq mm - price on request
• HEXPRESS-20 - insulated and non-insulated end-sealing ferrules, 0.5 to 16 sq mm - price on request (this page)

Related products

• HEX end-sealing (bootlace) ferrules - bare, insulated and twin
• HEX pin and blade terminals
• HEXPRESS cutters and strippers - wire and cable cutters, strippers and the cable-tie tool
• HEXPRESS hand crimping tools - mechanical tools for cable lugs, 0.5 to 400 sq mm
• All crimping tools

Frequently asked questions

What does HEXPRESS-20 crimp?

Insulated and non-insulated end-sealing ferrules, 0.5 to 16 sq mm.

Is it a ratchet tool?

No - it is a plier-type tool; squeeze the handles fully to make the crimp.

Which nest do I use?

The nest marked for the conductor size of the ferrule.

Does it crimp copper lugs?

No - it is made for insulated and non-insulated end-sealing ferrules; for copper lugs see the HEXPRESS hand crimping tools.

Where can I buy HEXPRESS-20 in India?

From Jai Enterprises, Bhilai and Raipur, Chhattisgarh, which supplies HEXPRESS crimping tools across India. Call +91 9340081159 with the model, quantity and delivery location and we will confirm the price, availability and lead time.

How to order

Supplied by Jai Enterprises, Bhilai and Raipur, Chhattisgarh, to sites across India. To request a price for HEXPRESS-20, call +91 9340081159 or send an enquiry from this page with the quantity and delivery location, and we will confirm availability, lead time and the right tool for the job.
