HEX Insulated In-Line (Butt) Connectors – 1.5 to 6 sq mm

HEX insulated in-line connectors (butt connectors) join two small wires end to end. The E-copper barrel is electro-tinned and fully covered by a PVC or nylon sleeve, so the finished joint is insulated without tape or sleeving. They are made for 1.5, 2.5, 4 and 6 sq mm wire. Made by HEX, the brand of Brass Copper & Alloy (I) Ltd., Mumbai — an ISO 9001 company whose products are tested by CPRI (India), UL (USA), KEMA (Netherlands) and SIRIM (Malaysia).

At a glance

• Sizes: 1.5, 2.5, 4 and 6 sq mm
• Insulation: fully insulated PVC or nylon sleeve
• Codes: HTIC-1.5, HTIC-2.5, HTIC-4, HTIC-6
• Material: E-copper (electrolytic copper), minimum 97% IACS conductivity to IS 191
• Finish: electro-tinned to IS 1359

Why insulated butt connectors

• Insulated joint in one step — no tape needed.
• Tinned copper barrel for low resistance.
• Four sizes for the most common control and power wires.

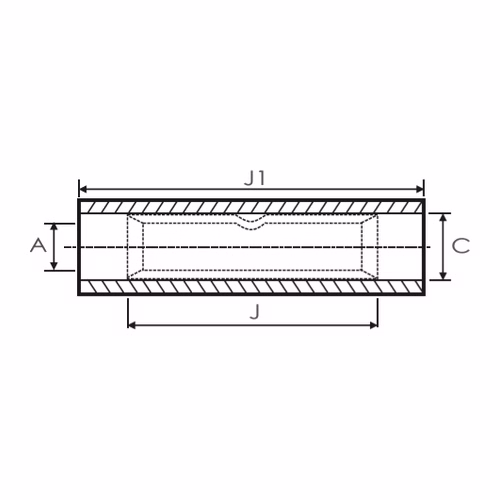

Specifications

• HTIC-1.5: bore 1.8 mm; barrel 12 mm; overall 25 mm
• HTIC-2.5: bore 2.4 mm; barrel 15 mm; overall 25 mm
• HTIC-4: bore 3.1 mm; barrel 15 mm; overall 25 mm
• HTIC-6: bore 3.8 mm; barrel 15 mm; overall 27 mm
• Material: E-copper (electrolytic copper), minimum 97% IACS conductivity to IS 191
• Finish: electro-tinned to IS 1359

Where it is used

• Extending and repairing panel and control wiring
• Appliance and lighting wiring
• Vehicle and equipment harnesses

Which small terminal do I need?

• Ring — the most secure; cannot slip off the stud even if the screw loosens.
• Fork / spade — quick to fit and remove without taking the screw out.
• Pin and blade — for tunnel and clamp-type terminal blocks.
• End-sealing ferrules — for fine-stranded wire in spring and screw terminals.
• Snap-on — push-on quick-disconnect tabs.
• Insulated butt connectors (this page) — for joining two wires.

Related products

• HEX copper in-line connectors for power cables
• HEX end-sealing ferrules
• HEX insulated screw connectors

Frequently asked questions

What is a butt connector?

An in-line connector that joins two wires end to end; HEX HTIC connectors are fully insulated.

Which sizes?

1.5, 2.5, 4 and 6 sq mm.

How is it crimped?

Insert each wire into its half of the connector and crimp both sides with a crimping tool for insulated terminals of that size.

Where can I buy HEX cable lugs in India?

From Jai Enterprises, which supplies HEX cable lugs, terminals and connectors across India from Bhilai and Raipur, Chhattisgarh. Call +91 9340081159 with the product codes or cable sizes and quantities.

How to order

Supplied by Jai Enterprises, despatched from Bhilai and Raipur, Chhattisgarh, to sites across India. To request a price, call +91 9340081159 or send an enquiry from this page with your quantity and site details, and we will confirm availability, lead time and the right model for the job.
