HEX Tinned Copper Flexible Braids – Crimped with Lugs or Connectors, 4 to 50 sq mm, 50–250 A

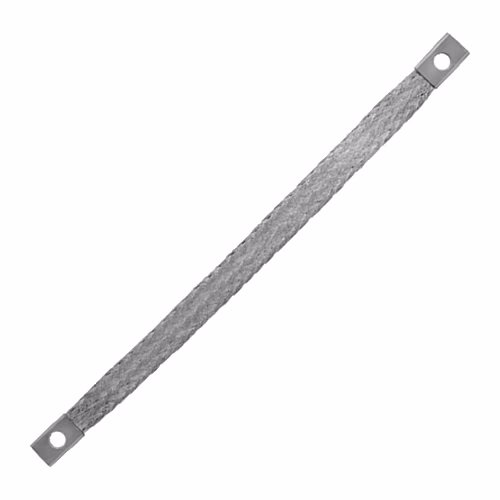

HEX tinned copper flexible braids are ready-made bonding links: a flat braid of tinned copper wire crimped at both ends with lugs (HFT) or connectors (HFC). They carry current across hinges, vibrating equipment and expansion points where a solid conductor would crack. Sizes run from 4 to 50 sq mm (50 to 250 A) in lengths of 50 to 300 mm, and other hole sizes, ratings and lengths are made to specification. Made by HEX, the brand of Brass Copper & Alloy (I) Ltd., Mumbai — an ISO 9001 company whose products are tested by CPRI (India), UL (USA), KEMA (Netherlands) and SIRIM (Malaysia).

At a glance

• Sizes: 4, 10, 16, 25, 30, 35, 50 sq mm
• Current rating: 50 A (4 sq mm) to 250 A (50 sq mm)
• Lengths: 50 to 300 mm
• Terminations: crimped with lugs (HFT) or with connectors (HFC)
• Material / finish: E-copper braid, electro-tinned

Why flexible braids

• Flexible and fatigue-resistant across movement and vibration.
• Ready to fit — terminations already crimped.
• Current ratings from 50 to 250 A.
• Made to order — other holes, ratings and lengths.

Specifications

• 4 sq mm: 50 A; hole 6 mm; lengths 50–200 mm; braid 8 × 1 mm
• 10 sq mm: 90 A; hole 6 mm; 50–200 mm; braid 12 × 2 mm
• 16 sq mm: 125 A; hole 8.5 mm; 100–300 mm; braid 15 × 2 mm
• 25 sq mm: 160 A; hole 10 mm; 100–300 mm; braid 25 × 2 mm
• 30 sq mm: 180 A; hole 10 mm; 100–300 mm; braid 25 × 2.5 mm
• 35 sq mm: 210 A; hole 10 mm; 100–300 mm; braid 25 × 3 mm
• 50 sq mm: 250 A; hole 12 mm; 100–300 mm; braid 30 × 3 mm
• Codes: e.g. HFT25-200-160 (25 sq mm, 200 mm, 160 A, lugs); HFC25 200-160 (connectors)

Where it is used

• Panel door and hinge earthing
• Transformer and generator bonding
• Busbar expansion links
• Railway and machinery bonding across vibration

Related products

• HEX copper tubular lugs
• HEX tinned copper forged lugs
• HEX split bolt connectors

Frequently asked questions

What is a flexible braid used for?

To bond or earth parts that move or vibrate — doors, transformers, busbars — where a solid conductor could fatigue.

What current can they carry?

From 50 A (4 sq mm) to 250 A (50 sq mm).

Lugs or connectors?

Both — HFT braids are crimped with lugs, HFC braids with connectors.

Can you make other lengths?

Yes — other hole sizes, ratings and lengths to customer specification.

Where can I buy HEX cable lugs in India?

From Jai Enterprises, which supplies HEX cable lugs, terminals and connectors across India from Bhilai and Raipur, Chhattisgarh. Call +91 9340081159 with the product codes or cable sizes and quantities.
