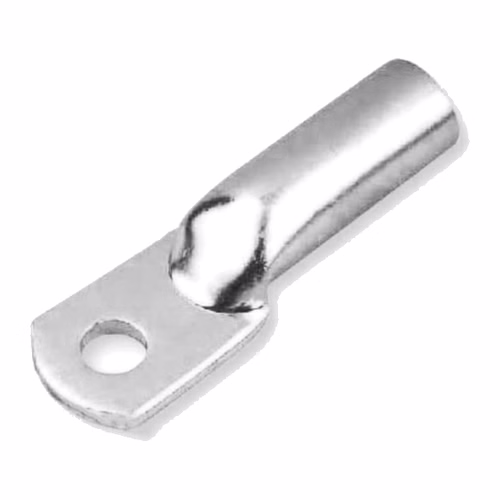

HEX Tinned Copper Forged Cable Lugs – 16 to 95 sq mm

Forged E-copper cable lugs, electro-tinned, with solid forged palms and hole sizes from 8.3 to 20.3 mm.

Request price

HEX tinned copper forged cable lugs (HCFL) are forged from E-copper and electro-tinned. Forging gives a dense, solid palm that resists bending at heavily loaded terminals. They cover 16 to 95 sq mm with a choice of hole sizes. Made by HEX, the brand of Brass Copper & Alloy (I) Ltd., Mumbai — an ISO 9001 company whose products are tested by CPRI (India), UL (USA), KEMA (Netherlands) and SIRIM (Malaysia).

At a glance

Range: 16, 25, 35, 50, 70, 95 sq mm

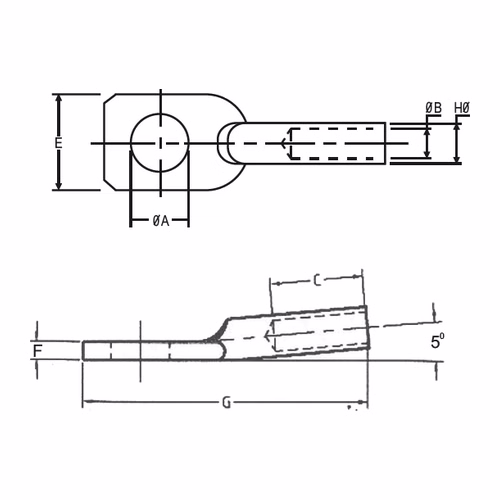

Holes (A): 8.3 to 20.3 mm
Dimensional tolerance: ± 5%
Material: E-copper (electrolytic copper), minimum 97% IACS conductivity to IS 191
Finish: electro-tinned to IS 1359

Why a forged lug

Solid forged palm for rigid, flat contact.
Tinned finish against corrosion.
Choice of hole sizes per cable size.

Specifications

16 sq mm: HCFL 16-8, 16-10, 16-12, 16-16 (holes 8.3–16.3 mm)
25 sq mm: HCFL 25-10, 25-12, 25-16
35 sq mm: HCFL 35-10, 35-12
50 sq mm: HCFL 50-10, 50-12, 50-16, 50-18
70 sq mm: HCFL 70-10, 70-12, 70-20
95 sq mm: HCFL 95-10, 95-16, 95-18, 95-20
Overall length (G): 80 mm (16–35 sq mm) to 100 mm (95 sq mm)
Material: E-copper (electrolytic copper), minimum 97% IACS conductivity to IS 191
Finish: electro-tinned to IS 1359

Where it is used

Heavy-duty equipment terminals
Battery and DC connections
Earthing and bonding

Frequently asked questions

What is a forged cable lug?

A lug formed by forging copper, giving a dense solid palm; HEX HCFL lugs are E-copper, electro-tinned.

Which sizes?

16 to 95 sq mm with hole sizes from 8.3 to 20.3 mm.

What tolerance applies?

± 5% on dimensions.

Where can I buy HEX cable lugs in India?

From Jai Enterprises, which supplies HEX cable lugs, terminals and connectors across India from Bhilai and Raipur, Chhattisgarh. Call +91 9340081159 with the product codes or cable sizes and quantities.

How to order

Supplied by Jai Enterprises, despatched from Bhilai and Raipur, Chhattisgarh, to sites across India. To request a price, call +91 9340081159 or send an enquiry from this page with your quantity and site details, and we will confirm availability, lead time and the right model for the job.
