HEX Mechanical Cable Lugs (Bolted, 2 or 4 Screws) & Tinned Screw Sleeves – 6 to 700 sq mm

HEX mechanical cable lugs clamp the conductor with screws instead of a crimp, so a cable can be terminated without a crimping tool — useful for site repairs, awkward locations and emergency work. Type I lugs use two screws (10–35 sq mm) and Type II lugs four screws (50–700 sq mm). HEX tinned screw sleeves join two cables the same way, from 6 to 300 sq mm. Both are brass, electro-tinned, with electro-plated steel screws. Made by HEX, the brand of Brass Copper & Alloy (I) Ltd., Mumbai — an ISO 9001 company whose products are tested by CPRI (India), UL (USA), KEMA (Netherlands) and SIRIM (Malaysia).

At a glance

• Mechanical lugs: H2B (2 screws) 10–35 sq mm; H4B (4 screws) 50–700 sq mm
• Screws: M5 to M10, steel, electro-plated
• Screw sleeves: HTBSS 6–300 sq mm
• Material / finish: brass, electro-tinned
• Tolerance: ± 3%

Why a mechanical lug

• No crimping tool — tighten the screws and the joint is made.
• Handles a range of conductor shapes within each size band.
• Up to 700 sq mm with four clamping screws.
• Matching screw sleeves for straight joints.

Specifications

• Type I — 2 screws: H2B-10 (M5), H2B-16 (M5), H2B-25 (M5), H2B-35 (M5)

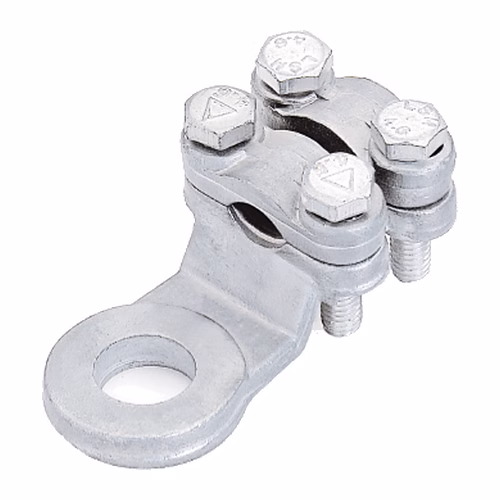

• Type II — 4 screws: H4B-50 and H4B-75 (M6), H4B-100 and H4B-120 (M6), H4B-170, H4B-200, H4B-250 (M8), H4B-300, H4B-400/500, H4B-700 (M10)

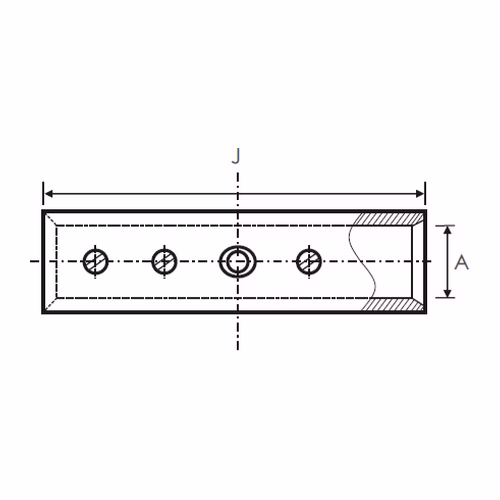

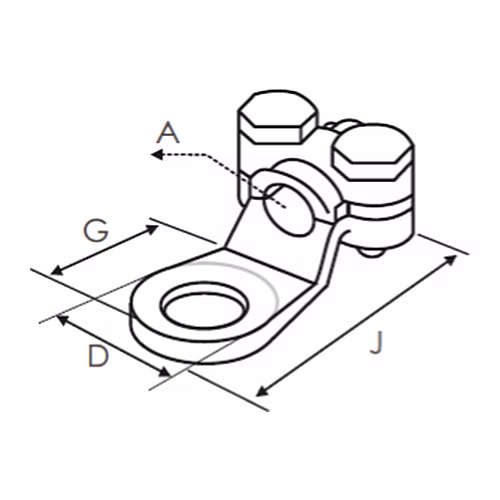

• Lug dimensions: barrel bore A 4 mm (10 sq mm) to 34 mm (700 sq mm); overall length J up to 150 mm

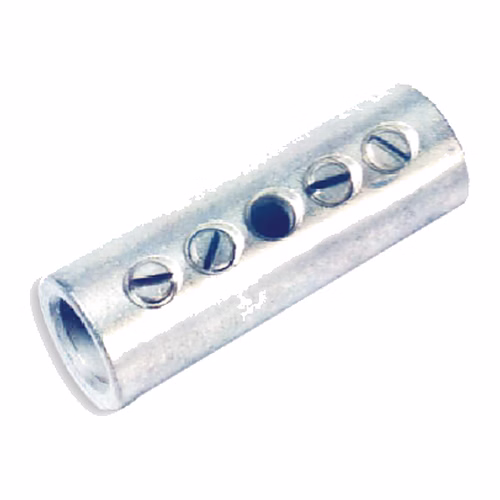

• Tinned screw sleeves: HTBSS 6, 10, 16, 25, 35, 50, 70, 95, 120, 150, 185, 240, 300; length 20 mm to 65 mm
• Material: brass, electro-tinned; steel screws electro-plated

Where it is used

• Emergency and site repairs
• Terminations where a crimping tool cannot reach
• Temporary power and construction sites
• Straight joints with screw sleeves
