HEX Aluminium Mechanical Connectors – Single & Double Barrel, One-Hole Mount, #6 AWG to 1000 kcmil

HEX aluminium mechanical connectors are set-screw lugs with a one-hole mounting palm: the conductor is clamped by a screw, so no crimping is needed. Single-barrel (HLA) connectors take one conductor, from #6 AWG to 1000 kcmil; double-barrel (HL2A) connectors take two, from 1/0 AWG to 1000 kcmil. They are aluminium, electro-tinned, and other types — two-hole palms, three-hole palms, multiple screws — can be made to order. Made by HEX, the brand of Brass Copper & Alloy (I) Ltd., Mumbai — an ISO 9001 company whose products are tested by CPRI (India), UL (USA), KEMA (Netherlands) and SIRIM (Malaysia).

At a glance

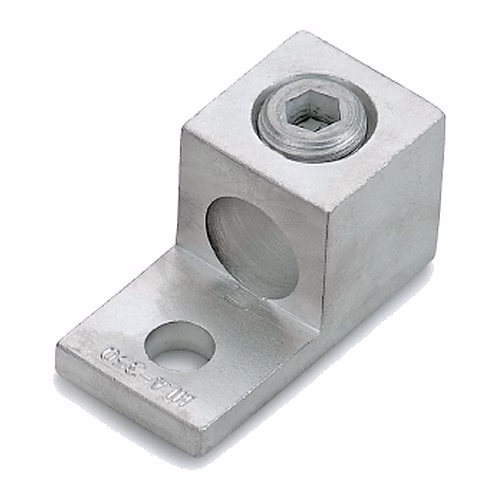

• Single barrel (HLA): #6–14 AWG up to 1000–500 kcmil; 12 sizes

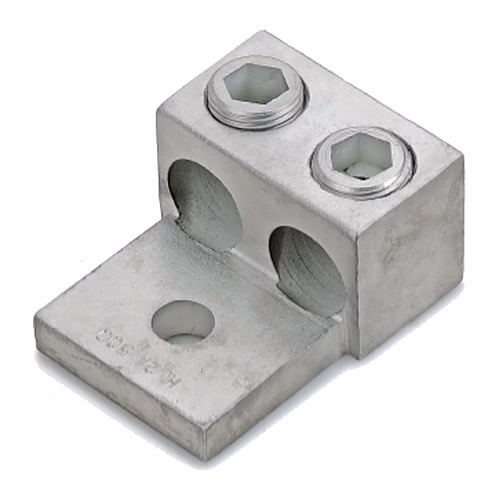

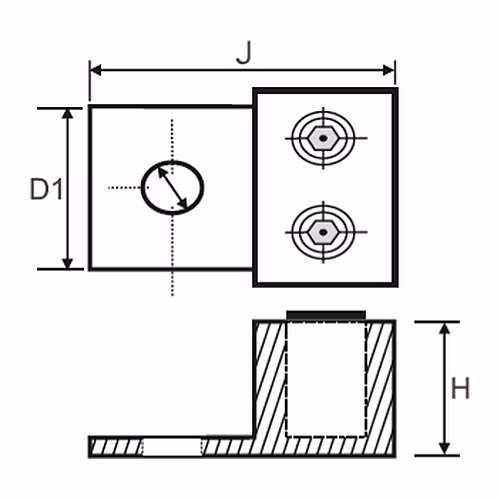

• Double barrel (HL2A): 1/0–14 AWG up to 1000–500 kcmil; 8 sizes
• Mounting: one hole
• Screws: slotted or hex socket, 1/4" to 5/8"
• Material / finish: aluminium, electro-tinned

Why mechanical connectors

• No crimping — clamp with the set screw.
• Two conductors in one with the double-barrel type.
• AWG and kcmil sizes for panels built to North American practice.
• Custom palms and screw counts on demand.

Specifications

• HLA single barrel: HLA-6 (#6–14), HLA-4 (#4–14), HLA-2 (#2–14), HLA-10 (#1/0–14), HLA-20 (#2/0–14), HLA-250 (250–6), HLA-300 (300–6), HLA-350 (350–6), HLA-500 (500–4), HLA-600 (600–2), HLA-800 (800–300), HLA-1000 (1000–500)
• HL2A double barrel: HL2A-10 (1/0–14), HL2A-20 (2/0–14), HL2A-250 (250–6), HL2A-350 (350–6), HL2A-500 (500–6), HL2A-600 (600–2), HL2A-800 (800–300), HL2A-1000 (1000–500)
• Screw sizes: single barrel 1/4" to 5/8"; double barrel 1/4" UNF to 1/2" UNF
• Custom: 2-hole palm/2 screws, 3-hole palm/2 or 3 screws and other sizes to order

Where it is used

• Panelboards, switchboards and meter centres
• Solar combiner and inverter terminals
• Transformer secondary and bus connections

Which HEX aluminium termination do I need?

• Aluminium lugs and through connectors — general-purpose Al terminations, 16–300 sq mm.
• Long barrel Al lugs for XLPE — heavy duty, 25–1000 sq mm.
• DIN 46329 Al lugs — barrier design with oil stop, 25–500 sq mm.
• Sector lugs and ferrules — for 3- and 4-core sector-shaped conductors.
• Bimetallic lugs — aluminium cable onto copper busbar.
• Mechanical connectors (this page) — screw-clamp, no crimping tool needed.

Related products

• HEX mechanical bolted lugs
• HEX aluminium lugs
• HEX bimetallic lugs

Frequently asked questions

Do these need a crimping tool?

No — the conductor is clamped by a set screw.

What sizes do they take?

Single barrel from #6 AWG to 1000 kcmil; double barrel from 1/0 AWG to 1000 kcmil, per the wire ranges listed.

Can I get a two-hole version?

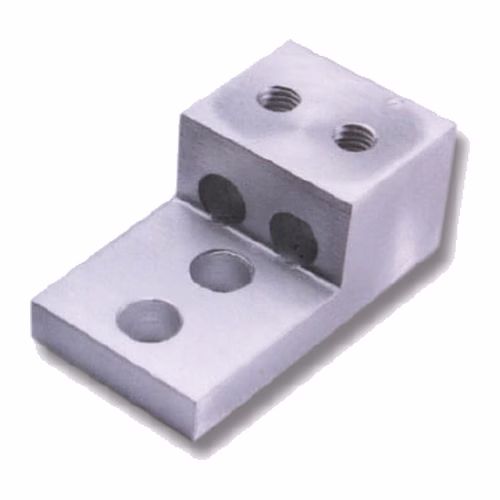

Yes — 2-hole and 3-hole palms with two or three screws are made on demand or to customer specification.
