HEX Aluminium Compression Cable Lugs to DIN 46329 – Barrier Design with Oil Stop, 25 to 500 sq mm

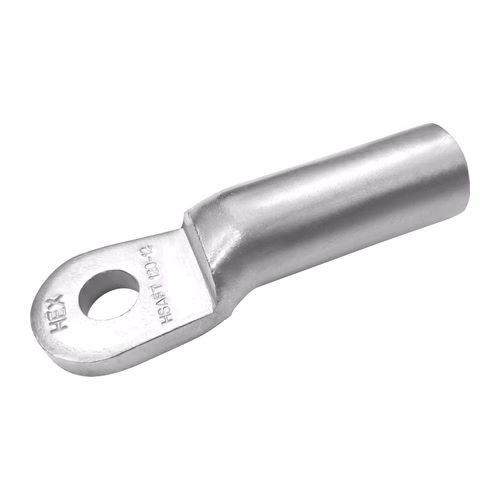

HEX aluminium compression cable lugs to DIN 46329 (HAFLD) are E-aluminium lugs with a barrier design and oil stop, which seals the barrel end — important on oil- or compound-filled cables and to keep moisture out. They run from 25 to 500 sq mm and are also made tin plated (prefix T) for connection to copper. Made by HEX, the brand of Brass Copper & Alloy (I) Ltd., Mumbai — an ISO 9001 company whose products are tested by CPRI (India), UL (USA), KEMA (Netherlands) and SIRIM (Malaysia).

At a glance

• Standard: DIN 46329
• Range: 25 to 500 sq mm
• Design: barrier with oil stop
• Holes: 9 to 21 mm
• Finish: natural; tin plated on request (add T before the code)
• Material: E-aluminium

Why DIN 46329 lugs

• Oil stop seals the barrel end.
• DIN dimensions for European-standard equipment.
• Tin-plated option for copper connections.
• Three stud holes on most sizes.

Specifications

• 25–95 sq mm: 25, 35, 50, 70 (holes 9, 11, 13) · 95 (11, 13)
• 120–240 sq mm: 120, 150, 185 (11, 13, 17) · 240 (13, 17, 21)
• 300–500 sq mm: 300, 400, 500 (13, 17, 21)

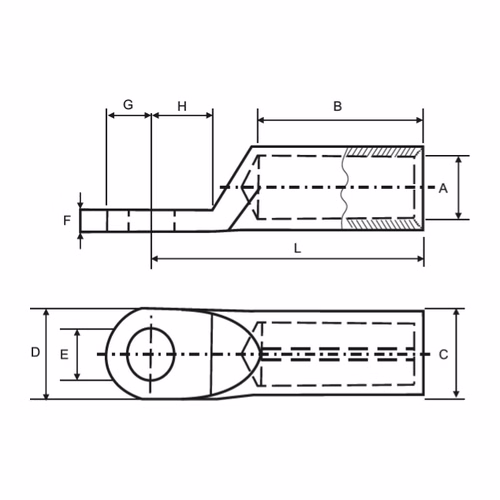

• Overall length (L): 50 mm (25 sq mm) to 122 mm (500 sq mm)
• Codes: HAFLD <sq mm>-<hole>, e.g. HAFLD 185-12; tin plated: THAFLD

Where it is used

• European switchgear and transformers
• Aluminium power cable terminations
• Oil- or compound-filled cable ends

Which HEX aluminium termination do I need?

• Aluminium lugs and through connectors — general-purpose Al terminations, 16–300 sq mm.
• Long barrel Al lugs for XLPE — heavy duty, 25–1000 sq mm.
• DIN 46329 Al lugs (this page) — barrier design with oil stop, 25–500 sq mm.
• Sector lugs and ferrules — for 3- and 4-core sector-shaped conductors.
• Bimetallic lugs — aluminium cable onto copper busbar.
• Mechanical connectors — screw-clamp, no crimping tool needed.

Related products

• HEX DIN 46235 copper lugs
• HEX aluminium lugs & through connectors
• HEX bimetallic lugs

Frequently asked questions

What is an oil stop lug?

A lug whose barrel is closed by a barrier, sealing the conductor end — HEX DIN 46329 lugs use this barrier design.

Can they connect to copper?

Order the tin-plated version (add T before the code) for copper connections.

Which sizes?

25 to 500 sq mm.
