HEX DIN 46235 Copper Compression Lugs & DIN 46267 Connectors – 6 to 1000 sq mm

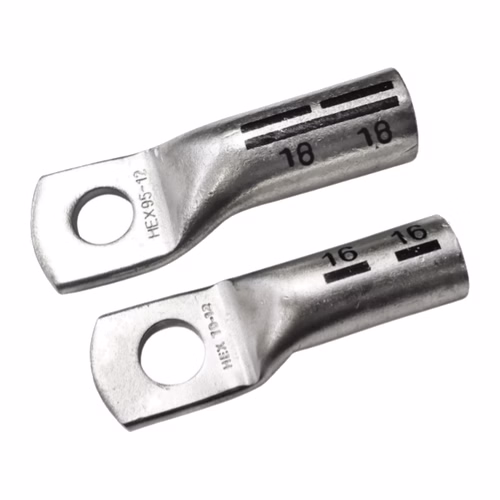

HEX compression type tinned copper cable lugs to DIN 46235 (HD) and connectors to DIN 46267 (HDC) follow the German standard dimensions used on European switchgear and machinery. Each lug is marked with the manufacturer's symbol, the nominal conductor size, the stud hole and the crimping location; connectors are permanently stamped with the symbol, nominal size and crimp location. Made by HEX, the brand of Brass Copper & Alloy (I) Ltd., Mumbai — an ISO 9001 company whose products are tested by CPRI (India), UL (USA), KEMA (Netherlands) and SIRIM (Malaysia).

At a glance

• Lugs (HD): DIN 46235, 6 to 1000 sq mm, stud 5.3–21 mm
• Connectors (HDC): DIN 46267, 6 to 1000 sq mm
• Marking: manufacturer symbol, conductor size, stud hole and crimp location
• Finish: tinned E-copper
• Tolerance: as per standard

Why choose DIN lugs

• Standard dimensions for European equipment and specifications.
• Clearly marked size and crimp position for correct installation and inspection.
• Full range to 1000 sq mm, lugs and connectors.
• Tinned copper for low resistance and corrosion protection.

Specifications

• HD lugs 6–50 sq mm: 6 (stud 5.3, 6.4) · 10 (5.3) · 16 (6.4, 8.4, 10.5) · 25 (6.4, 8.4, 10.5, 13) · 35 (8.4, 10.5, 13) · 50 (8.4, 10.5, 13, 17)
• HD lugs 70–240 sq mm: 70 (8.4, 10.5, 13, 17) · 95 (10.5, 13, 17) · 120 and 150 (10.5, 13, 17, 21) · 185 (10.5, 13, 17, 21) · 240 (13, 17, 21)
• HD lugs 300–1000 sq mm: 300 and 400 (17, 21) · 500, 625, 800, 1000 (21)

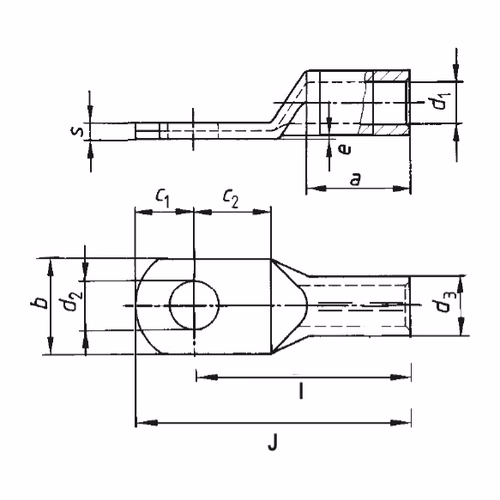

• HD overall length (J): 33 mm (6 sq mm) to 190 mm (1000 sq mm)

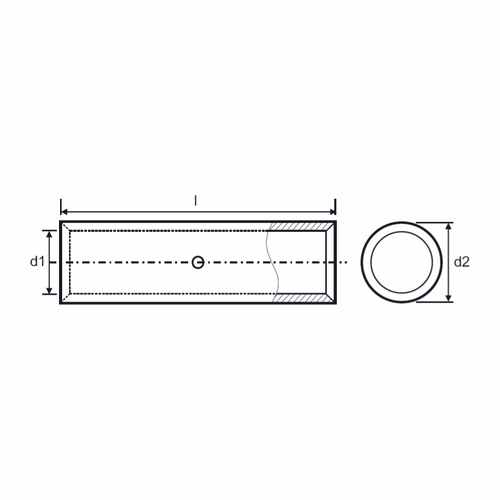

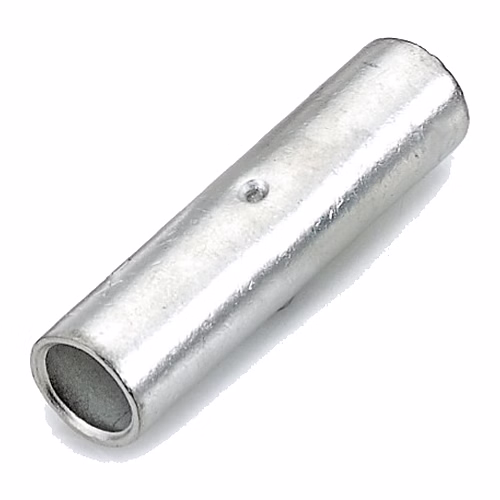

• HDC connectors: HDC-6, 10, 16, 25, 35, 50, 70, 95, 120, 150, 185, 240, 300, 400, 500, 625, 800, 1000; length 30 mm to 200 mm
• Material: E-copper (electrolytic copper), minimum 97% IACS conductivity to IS 191
• Finish: electro-tinned to IS 1359

Where it is used

• European switchgear, drives and machinery
• Export projects specifying DIN 46235 / 46267
• Industrial power terminations and joints

Which HEX copper lug do I need?

• Standard UL-listed tubular lugs — the general-purpose copper lug, 1.5–1000 mm², with inspection hole.
• Economy range — the same job for 35–1000 mm² where a lighter lug is acceptable.
• Bell mouth — flared entry for fast insertion of flexible or fine-stranded conductors.
• Without inspection hole — sealed barrel for damp or outdoor locations.
• Long barrel, 2-hole or 4-hole — longer crimp or anti-rotation palm for heavy terminations.
• 33 kV terminals — for HV cable terminations.
