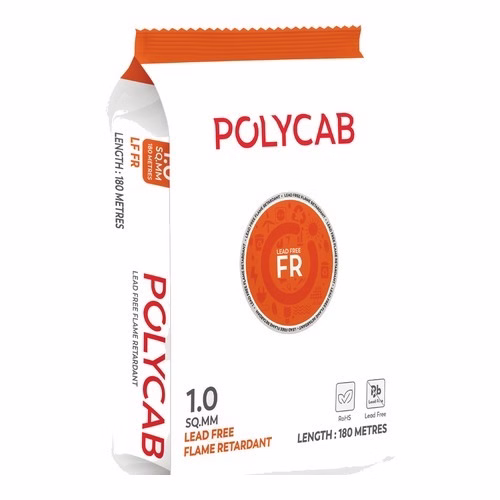

Polycab LF FR 180 m House Wire – 0.75 to 6 sq mm, 180 m Pouch, 70 °C

Polycab LF FR 180 m is a single-core LF FR copper house wire to IS 694:2010, voltage grade 1100 V, rated 70 °C, supplied in 0.75 to 6 sq mm 180 m pouches at MRP Rs 8,400 - 42,400. It is the lead-free flame-retardant Polycab LF FR wire in a 180 m pouch for contractors - FLAMESTOP technology, rodent protection and 99.97 % pure copper.

Polycab India Limited is India's largest manufacturer of wires and cables, with 27 manufacturing facilities, 4,300+ authorised distributors, 2,00,000+ retailers and an export presence in 84 countries (polycab.com, October 2026). Jai Enterprises stocks the full Polycab LF FR 180 m size range in Bhilai and Raipur and supplies it all over Chhattisgarh - Bhilai, Raipur, Durg, Korba, Bilaspur, Raigarh, Jagdalpur, Kanker, Ambikapur and every other district - and across India.

Is this the right one for you?

Check these four things before you order:

• You need a single-core house wire for conduit or surface wiring at 230 / 415 V (voltage grade 1100 V).
• The circuit current fits one of the sizes below - from 7 A (0.75 sq mm) to 31 A (6 sq mm) in conduit.
• You are wiring a large site and want 180 m packs of a lead-free flame-retardant 70 °C wire.
• Pack length 180 m suits the job (the same construction is also sold in 90 m coils).

Polycab LF FR 180 m - pick your size

Each size has its own page with the full construction, current ratings, MRP and typical circuits:

• Polycab LF FR 0.75 sq mm - 24/0.21 strands, 7 A in conduit / 7.5 A clipped, MRP on request
• Polycab LF FR 1 sq mm - 32/0.21 strands, 11 A in conduit / 12 A clipped, MRP Rs 8,400 per 180 m
• Polycab LF FR 1.5 sq mm - 30/0.26 strands, 14 A in conduit / 16 A clipped, MRP Rs 12,250 per 180 m
• Polycab LF FR 2.5 sq mm - 50/0.26 strands, 19 A in conduit / 22 A clipped, MRP Rs 19,400 per 180 m
• Polycab LF FR 4 sq mm - 56/0.31 strands, 26 A in conduit / 29 A clipped, MRP Rs 28,400 per 180 m
• Polycab LF FR 6 sq mm - 84/0.31 strands, 31 A in conduit / 37 A clipped, MRP Rs 42,400 per 180 m

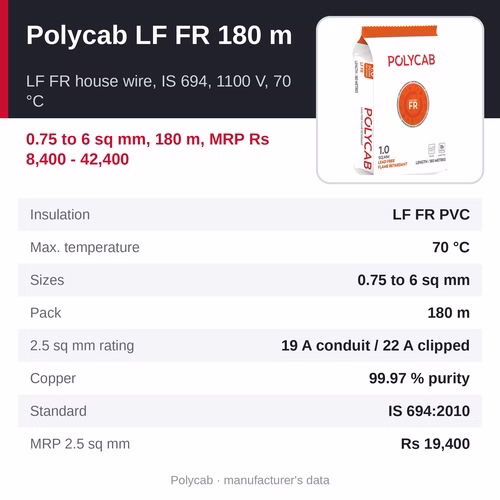

At a glance

• MRP: Rs 8,400 - 42,400 per 180 m pouch (inclusive of taxes, polycab.com, Oct 2026)
• Product: Polycab LF FR 180 m
• Type: Single core FR PVC insulated unsheathed cable, 1100 V, IS 694:2010 - 180 m pouch packaging
• Insulation: LF FR PVC
• Max. operating temperature: 70 °C (ambient 40 °C for the ratings)
• Sizes: 0.75 to 6 sq mm (6 sizes)
• Conductor: bright annealed electrolytic bare copper, multistrand (99.97 % purity per Polycab)
• Standard: IS 694:2010; RoHS and REACH compliant
• Pack: 180 m pouch
• Colours: yellow, red, blue, green and black

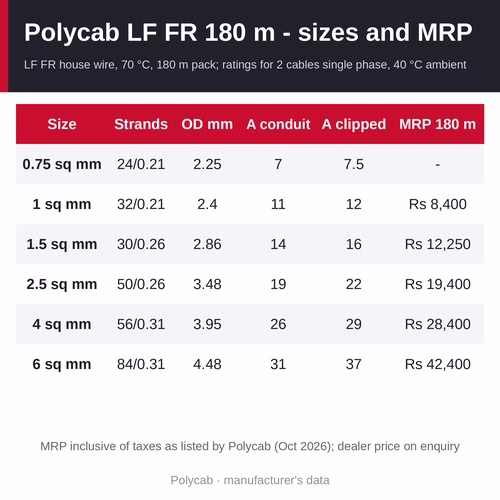

Specifications and sizes

• Construction: PVC insulated single core unsheathed industrial (multistrand) cable - lead free, flame retardant (LF FR) - conforming to IS 694:2010, with bright annealed electrolytic bare copper conductor, voltage grade 1100 V
• Voltage grade: 1100 V
• Standard: IS 694:2010
• Ratings basis: current carrying capacity for 2 cables in single phase, ambient 40 °C; Reference Method B = enclosed in conduit on a wall or in trunking, Method C = clipped direct
• Features: FLAMESTOP technology, lead-free PVC insulation, rodent protection, REACH compliant, RoHS compliant, 99.97 % high-purity copper
• 0.75 sq mm: 24/0.21 strands (no./mm), insulation 0.6 mm, overall dia approx. 2.25 mm, max. DC resistance 26.0 ohm/km at 20 °C; 7 A in conduit / 7.5 A clipped direct; MRP on request
• 1 sq mm: 32/0.21 strands (no./mm), insulation 0.6 mm, overall dia approx. 2.4 mm, max. DC resistance 19.5 ohm/km at 20 °C; 11 A in conduit / 12 A clipped direct; MRP Rs 8,400 per 180 m
• 1.5 sq mm: 30/0.26 strands (no./mm), insulation 0.6 mm, overall dia approx. 2.86 mm, max. DC resistance 13.3 ohm/km at 20 °C; 14 A in conduit / 16 A clipped direct; MRP Rs 12,250 per 180 m
• 2.5 sq mm: 50/0.26 strands (no./mm), insulation 0.7 mm, overall dia approx. 3.48 mm, max. DC resistance 7.98 ohm/km at 20 °C; 19 A in conduit / 22 A clipped direct; MRP Rs 19,400 per 180 m
• 4 sq mm: 56/0.31 strands (no./mm), insulation 0.8 mm, overall dia approx. 3.95 mm, max. DC resistance 4.95 ohm/km at 20 °C; 26 A in conduit / 29 A clipped direct; MRP Rs 28,400 per 180 m
• 6 sq mm: 84/0.31 strands (no./mm), insulation 0.8 mm, overall dia approx. 4.48 mm, max. DC resistance 3.3 ohm/km at 20 °C; 31 A in conduit / 37 A clipped direct; MRP Rs 42,400 per 180 m

Why choose Polycab LF FR 180 m

• 180 m pouch - double the standard 90 m coil, for contractors wiring many points
• Lead-free flame-retardant (LF FR) PVC insulation with FLAMESTOP technology
• Rodent protection, 99.97 % high-purity copper
• RoHS and REACH compliant
• Rated 70 °C - the standard PVC house-wire rating, at a lower price per metre than the 85 °C Green Wire 180 m

Which size for which circuit?

1 sq mm (11 A in conduit) - lighting points and switch drops - 1 sq mm details and MRP.

1.5 sq mm (14 A in conduit) - lighting and fan circuits - 1.5 sq mm details and MRP.

2.5 sq mm (19 A in conduit) - 6 A and 16 A socket circuits - 2.5 sq mm details and MRP.

4 sq mm (26 A in conduit) - air conditioners, geysers and kitchen power points - 4 sq mm details and MRP.

6 sq mm (31 A in conduit) - mains from the meter to the distribution board and heavy appliance circuits - 6 sq mm details and MRP.

Ratings are the catalogue values for two cables in single phase at 40 °C ambient; size the circuit to the load and the protective device, and keep the voltage drop within limits on long runs.

Where it is used

• Homes, flats and housing projects - lighting, fan, socket and power circuits
• Offices, shops, hotels and commercial buildings
• Hospitals, schools and public buildings
• Panel and sub-main wiring inside conduit or trunking
• Industrial sheds and workshops (lighting and small power)

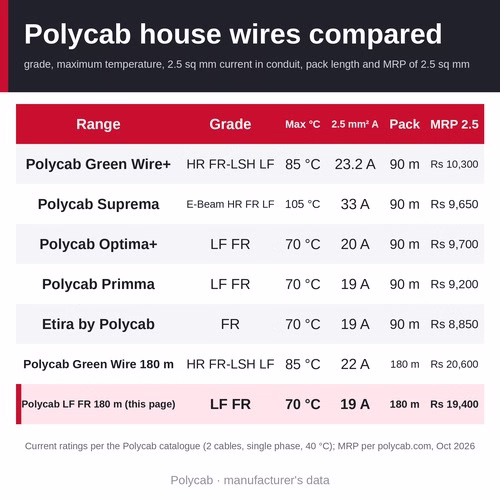

The Polycab house-wire range compared

• Polycab Green Wire+ - HR FR-LSH LF, 85 °C, 90 m - MRP Rs 3,350 - 22,550
• Polycab Suprema - E-Beam HR FR LF, 105 °C, 90 m - MRP Rs 3,100 - 21,100
• Polycab Optima+ - LF FR, 70 °C, 90 m - MRP Rs 3,125 - 21,200
• Polycab Primma - LF FR, 70 °C, 90 m - MRP Rs 3,100 - 21,150
• Etira by Polycab - FR, 70 °C, 90 m - MRP Rs 2,900 - 20,300
• Polycab Green Wire 180 m - HR FR-LSH LF, 85 °C, 180 m - MRP Rs 9,000 - 45,100
• Polycab LF FR 180 m - LF FR, 70 °C, 180 m - MRP Rs 8,400 - 42,400 (this page)

Related products

• All house wires and flexible cables
• Polycab 3-core flat submersible cable - for borewell and submersible pump motors
• Polycab LAN cable and CCTV cable - data and security wiring for the same building

Frequently asked questions

What sizes does Polycab LF FR 180 m come in?

6 sizes: 0.75 sq mm, 1 sq mm, 1.5 sq mm, 2.5 sq mm, 4 sq mm, 6 sq mm, each in a 180 m pack. The MRP runs from Rs 8,400 (1 sq mm) to Rs 42,400 (6 sq mm).

What is the MRP of Polycab LF FR 180 m 2.5 sq mm?

Rs 19,400 per 180 m (polycab.com MRP, inclusive of taxes, October 2026). Our selling price is quoted on enquiry - call +91 9340081159.

How much current can Polycab LF FR 180 m carry?

The catalogue rates 2.5 sq mm at 19 A enclosed in conduit and 22 A clipped direct, and 6 sq mm at 31 A / 37 A, for two cables in single phase at 40 °C ambient. See the size table above for every size.

What does LF FR mean?

Lead Free, Flame Retardant: the PVC insulation contains no lead stabiliser and resists the spread of flame. Rated 70 °C, 180 m pouch.

Which Polycab house wire should I choose?

Suprema for the highest heat resistance (105 °C) and current rating; Green Wire+ for low smoke, low halogen and 85 °C; Optima+ and Primma for lead-free flame-retardant wiring at a mid price; Etira for the most economical flame-retardant option; the 180 m pouches for large sites. The comparison list on this page gives the grade, temperature and MRP of each.

Is Polycab LF FR 180 m a genuine Polycab product?

Yes - Jai Enterprises supplies factory-sealed Polycab pouches from its Bhilai and Raipur stock, to every district of Chhattisgarh and across India. Polycab India Limited is India's largest manufacturer of wires and cables, with 27 manufacturing facilities, 4,300+ authorised distributors, 2,00,000+ retailers and an export presence in 84 countries (polycab.com, October 2026).

Where can I buy Polycab LF FR 180 m in Chhattisgarh?

From Jai Enterprises, Bhilai and Raipur, which supplies Polycab wires and cables across Chhattisgarh - Korba, Bilaspur, Raigarh, Jagdalpur, Kanker, Ambikapur and every other district - and across India. Call +91 9340081159 with the size, quantity and delivery location and we will confirm the price, availability and lead time.

How to order

Supplied by Jai Enterprises, Bhilai and Raipur, to every district of Chhattisgarh and across India. The MRP is Rs 8,400 - 42,400 per 180 m depending on size; our selling price is quoted on enquiry. Call +91 9340081159 or send an enquiry from this page with the size, colour, number of pouches and delivery location, and we will confirm the price, stock and lead time.
