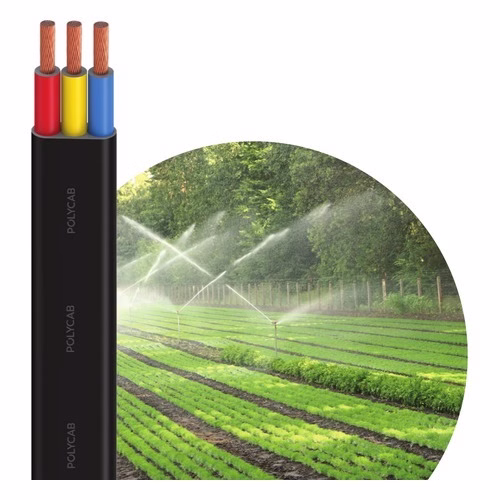

Polycab 3-Core Flat Submersible Cable – PVC / XLPE Insulated, 1.5 to 95 sq mm, 1100 V, IS 694

PVC / XLPE insulated and PVC sheathed industrial 3-core flat submersible cable with bare bunched copper conductor, for submersible pump motors, voltage grade 1100 V, as per IS 694:2010. The flat three-core cable runs down the borewell beside the riser pipe to the submersible pump motor, so it has to stay flexible, resist water and abrasion and keep its insulation under the clamps. Polycab makes it with Class 5 flexible copper, PVC or XLPE insulation and a PVC sheath, in flat sizes from 1.5 to 95 sq mm and round 3- and 4-core versions to 120 sq mm.

Polycab India Limited is India's largest manufacturer of wires and cables, with 27 manufacturing facilities, 4,300+ authorised distributors, 2,00,000+ retailers and an export presence in 84 countries (polycab.com, October 2026). Jai Enterprises supplies the Polycab cable range from Bhilai and Raipur all over Chhattisgarh - Bhilai, Raipur, Durg, Korba, Bilaspur, Raigarh, Jagdalpur, Kanker, Ambikapur and every other district - and across India; price on request.

Is this the right one for you?

Check these four things before you order:

• The cable feeds a submersible (borewell) pump motor and runs down the well beside the riser pipe.
• A flat 3-core cable is wanted (round 3- and 4-core versions are available on request).
• The motor current and the run length point to a size between 1.5 and 95 sq mm (flat).
• The supply is 230 / 415 V (voltage grade 1100 V).

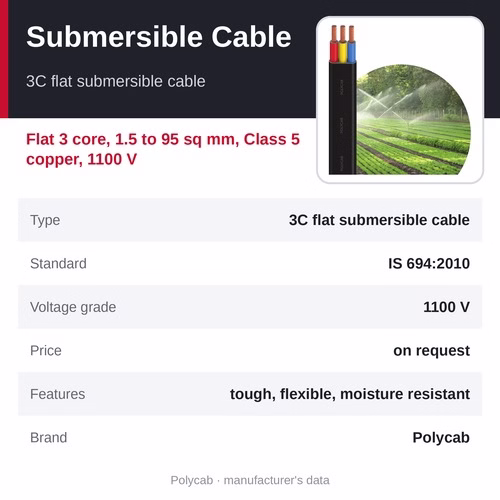

At a glance

• Price: Request price
• Product: Polycab 3-Core Flat Submersible Cable
• Type: 3C flat submersible cable
• Range: Flat: 3 core x 1.5 sq mm to 95 sq mm. Round: 3 core and 4 core x 1.5 sq mm to 120 sq mm. Class 5 (flexible) copper conductors, PVC or XLPE insulation, PVC / PVC ST2 sheath
• Standard: IS 694:2010
• Voltage grade: 1100 V

Specifications

• Construction: PVC / XLPE insulated and PVC sheathed industrial 3-core flat submersible cable with bare bunched copper conductor, for submersible pump motors, voltage grade 1100 V, as per IS 694:2010
• Range: Flat: 3 core x 1.5 sq mm to 95 sq mm. Round: 3 core and 4 core x 1.5 sq mm to 120 sq mm. Class 5 (flexible) copper conductors, PVC or XLPE insulation, PVC / PVC ST2 sheath
• Standard: IS 694:2010
• Features: tough and flexible cable, excellent moisture resistance, highest quality electrolytic grade copper, high abrasion resistance

Why choose Polycab 3-Core Flat Submersible Cable

• Tough and flexible - Class 5 bunched copper and a PVC sheath that bends round the pump and takes the clamps
• Excellent moisture resistance - made for permanent immersion in the well
• Highest quality electrolytic grade copper keeps the voltage drop down on long drops
• High abrasion resistance against the well casing and riser pipe
• IS 694:2010, 1100 V - the same standard as the house wires

Installation notes

Pick the size from the pump motor current and the depth: longer drops need a larger size to keep the voltage drop at the motor within limits.

Fix the cable to the riser pipe with cable clamps or ties every few metres, and leave a loop at the top to take up the pipe movement.

Make the joint to the motor lead with a proper submersible cable-jointing kit, not tape.

Where it is used

• Borewell submersible pumps for homes, farms and apartments
• Agricultural irrigation pumps
• Water-supply and dewatering pumps
• Industrial sump and well pumps

Other Polycab communication and special cables

• Polycab 3-Core Flat Submersible Cable - 3C flat submersible cable (this page)

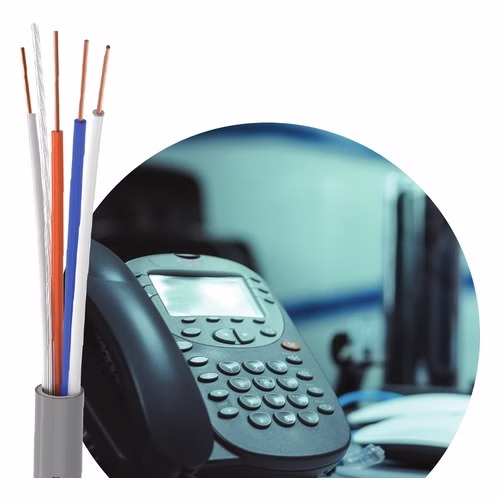

• Polycab Industrial Telephone (Switchboard) Cable - telephone / switchboard cable

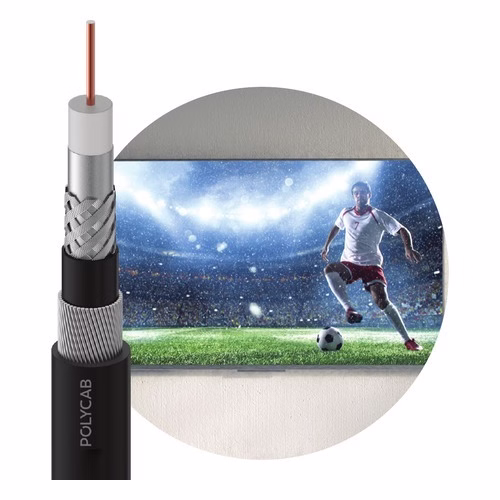

• Polycab Industrial Jelly-Flooded Coaxial Cable - RG 6 / RG 11 / RG 59 coaxial cable

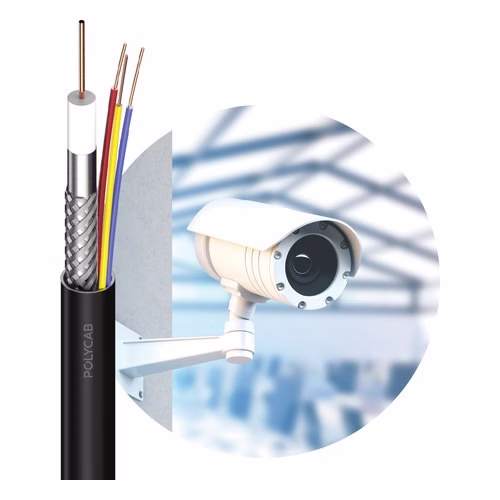

• Polycab CCTV Cable (3+1 and 4+1) - CCTV cable

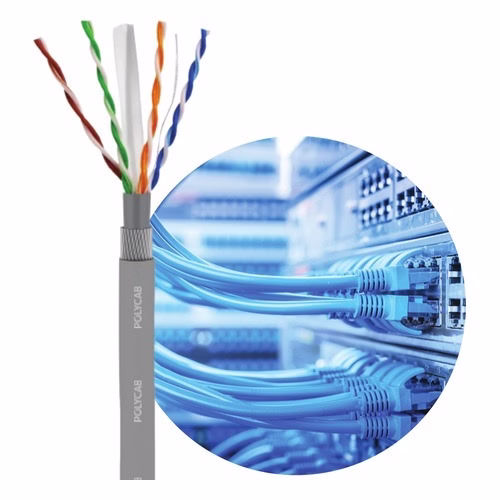

• Polycab LAN (Networking) Cable - Cat 6 / Cat 6a / Cat 5e - LAN cable

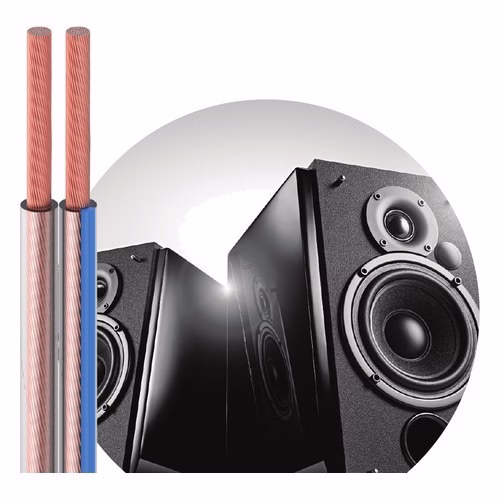

• Polycab Industrial Speaker Wire (OFC) - speaker wire

Related products

• All Polycab cables
• Communication and data cables
• Polycab Green Wire+ house wire - the matching house wire for the building
• Polycab Suprema E-beam house wire

Frequently asked questions

What sizes are available?

Flat 3 core from 1.5 sq mm to 95 sq mm; round 3 core and 4 core from 1.5 sq mm to 120 sq mm, in Class 5 flexible copper (B2B catalogue).

Is the insulation PVC or XLPE?

Both are made: PVC insulated or XLPE insulated, with a PVC or PVC ST2 sheath. XLPE is the choice for higher operating temperature; tell us the pump rating and we will quote the right one.

Which standard does it meet?

IS 694:2010, voltage grade 1100 V - the Indian standard for PVC insulated cables for working voltages up to and including 1100 V.

Which size do I need for my pump?

It depends on the motor current and the depth of the well: the longer the drop, the larger the size needed to limit voltage drop at the motor. Send the motor HP, voltage and depth and we will size it.

Where can I buy Polycab 3-Core Flat Submersible Cable in Chhattisgarh?

From Jai Enterprises, Bhilai and Raipur, which supplies Polycab wires and cables across Chhattisgarh - Korba, Bilaspur, Raigarh, Jagdalpur, Kanker, Ambikapur and every other district - and across India. Call +91 9340081159 with the size, quantity and delivery location and we will confirm the price, availability and lead time.

How to order

Supplied by Jai Enterprises, Bhilai and Raipur, to every district of Chhattisgarh and across India. To request a price for Polycab 3-Core Flat Submersible Cable, call +91 9340081159 or send an enquiry from this page with the size or type, length and delivery location, and we will confirm availability, lead time and the delivered cost.
