Polycab FR, FRLSH, HRFR and HR-FRLS Building Wires – Single Core Multi-Stranded Copper, PVC Insulated

The Polycab PVC Building Wire range comes in four grades of PVC insulation on single-core multi-stranded copper: FR (flame retardant), FRLSH (flame retardant, low smoke and reduced halogen), HRFR (heat resistant, flame retardant) and HR-FRLS (heat resistant, flame retardant and low smoke). It is supplied at a price on request: cable prices depend on the construction, the quantity and the raw-material prices on the day.

Polycab India Limited is India's largest manufacturer of wires and cables, with 27 manufacturing facilities, a network of 4,300+ dealers and distributors, 2,00,000+ retailers and an export presence in 84 countries (polycab.com, October 2026). Its cable range runs from house wires and 1.1 kV power and control cables to MV and EHV power cables, with instrumentation, solar, railway, marine, mining, fire-survival and other special cables. Jai Enterprises supplies Polycab cables from Bhilai and Raipur all over Chhattisgarh - Bhilai, Raipur, Durg, Korba, Bilaspur, Raigarh, Jagdalpur, Kanker, Ambikapur and every other district - and across India.

Is this the right one for you?

Check these four things before you order:

• The wiring is fixed building wiring in conduit or trunking.
• You know the grade your specification asks for: FR, FRLSH, HRFR or HR-FRLS.
• You know whether you need low smoke, heat resistance or both.
• You know the sizes and colours.

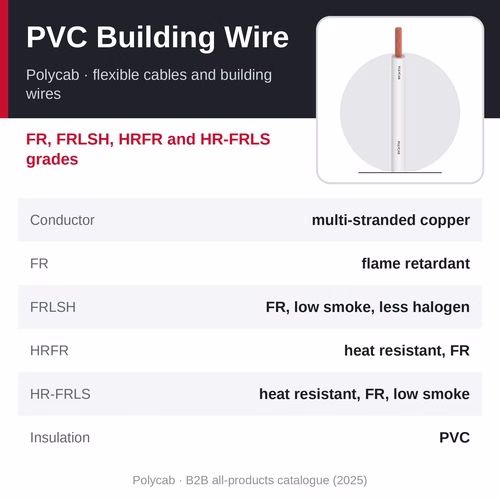

At a glance

• Price: on request - call +91 9340081159
• Product: Polycab PVC Building Wire
• Type: PVC insulated building wire - four grades
• Conductor: multi-stranded copper
• Cores: single core

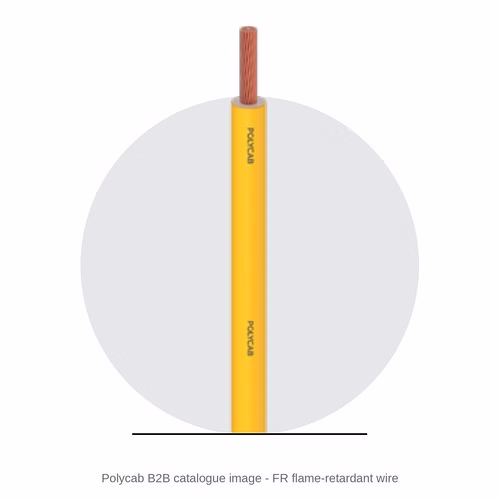

• FR: flame-retardant PVC

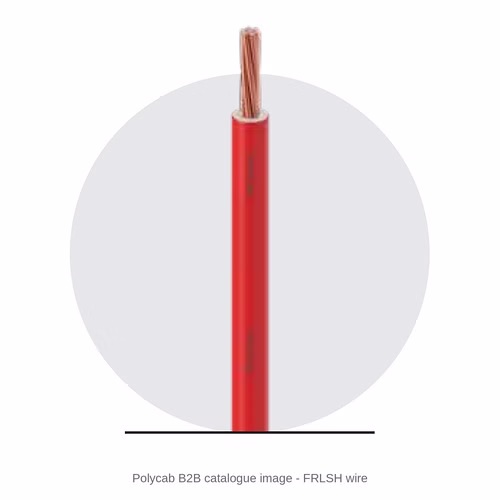

• FRLSH: flame-retardant PVC with low smoke and reduced halogen acid gas - still a PVC compound
• HRFR: heat-resistant, flame-retardant PVC

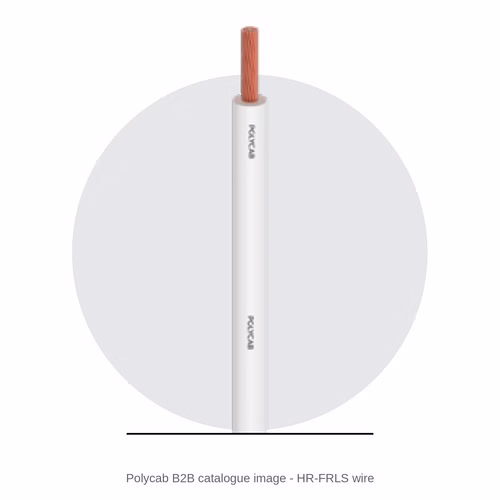

• HR-FRLS: heat-resistant, flame-retardant, low-smoke PVC
• Source: Polycab B2B all-products catalogue (2025), pp 29-30

Construction and standards

• Conductor: multi-stranded copper
• Cores: single core
• Insulation: PVC in four grades: FR, FRLSH (printed "FRLS" in the catalogue text), HRFR and HR-FRLS
• Note - Standard: the catalogue does not name a standard for these four wires; IS 694 is the Indian standard for PVC building wire, with flame-retardant (FR) and flame-retardant low-smoke-and-halogen (FR-LSH) categories and 70 °C or heat-resisting 85 °C insulation - we confirm the standard and sizes for your order
• Source: Polycab B2B all-products catalogue (2025), pp 29-30

Why choose the Polycab PVC Building Wire

• Four PVC grades in one range - from plain FR to heat-resistant low-smoke HR-FRLS
• Single-core multi-stranded copper conductors
• Flame-retardant insulation on every grade
• Low-smoke grades (FRLSH, HR-FRLS) for escape routes and enclosed spaces
• Heat-resistant grades (HRFR, HR-FRLS) for hot ceilings and high ambient temperatures

How to choose and specify it

Grades. FR limits flame spread; FRLSH adds low smoke and reduced halogen acid gas (it is still a PVC compound); HR (heat resistant) PVC is rated for a higher conductor temperature than general-purpose PVC; HR-FRLS combines heat resistance, flame retardance and low smoke. Choose low-smoke grades where escape routes must stay as clear of smoke as possible, and heat-resistant grades for hot ceilings and high ambient temperatures - grouping derating and conduit-fill limits still apply.

Standard and sizes. The catalogue does not list the sizes or a standard for these four wires; IS 694 sets the Indian categories (FR and FR-LSH) and the 70 °C and 85 °C insulation types. Tell us the sizes and the standard, and we confirm with Polycab.

Branded house wires. Polycab's branded house wires - Etira (FR), Optima+ and Primma (LF FR), Green Wire+ (HR FR-LSH LF) and Suprema (E-beam HR FR LF) - are listed separately with their sizes and MRPs.

Where it is used

• Commercial and industrial building wiring
• Apartments, hotels and hospitals
• Lighting and power circuits in conduit
• Control and distribution boards
• Projects with FRLS or HR-FRLS specifications

Other Polycab flexible cables and building wires

• Polycab Single Core Industrial Flexible Cable - class 5 copper, 0.5 to 630 sq mm, price on request
• Polycab Multicore Industrial Flexible Cable - 2 to 61 cores, class 5 copper, price on request
• Polycab Panel Wire - PVC switchboard wire, price on request
• Polycab HFFR Wire - halogen-free HFFR-04XZ-K and HFFR-01Z-K / 03XZ-K, price on request
• Polycab PVC Building Wire (this page) - FR, FRLSH, HRFR and HR-FRLS grades, price on request
• Polycab Service Wire - aluminium twin flat service cable, price on request
• Polycab Medical Wire - fungus-free HFFR wire, IS 17048, price on request

Related products

• Etira by Polycab FR House Wire - 0.75 to 6 sq mm, 90 m Coil, 70 °C
• Polycab Optima+ LF FR House Wire - 0.75 to 6 sq mm, 90 m Coil, 70 °C
• Polycab Green Wire+ (Polycab Maxima+) HR FR-LSH LF House Wire - 0.75 to 6 sq mm, 90 m Coil, 85 °C
• Polycab Suprema E-Beam HR FR LF House Wire - 0.75 to 6 sq mm, 90 m Coil, 105 °C
• Polycab LMS FRLS uPVC Conduit Pipe - Light Mechanical Stress, 20 to 50 mm Outside Diameter, IS 9537 Part 3

Frequently asked questions

What is the price of the Polycab PVC Building Wire?

The Polycab PVC Building Wire is supplied at a price on request, because cable prices depend on the construction, the quantity and the raw-material prices on the day. Call +91 9340081159 for a quotation.

What is the difference between FR, FRLSH and HR-FRLS?

FR wire limits flame spread; FRLSH also gives off low smoke and less halogen acid gas; HR-FRLS is heat resistant, flame retardant and low smoke - ask us if you also need the reduced acid-gas (FR-LSH) property. HRFR is heat resistant and flame retardant without the low-smoke property. All four are PVC wires.

Which grade should I use in a building?

Low-smoke grades (FRLSH, HR-FRLS) for public buildings, escape routes and enclosed spaces; heat-resistant grades for hot ceilings and high ambient temperatures. Your specification usually names the grade.

Are these the same as Polycab house wires?

Not necessarily. The B2B catalogue lists these grades without brand names or sizes; Polycab's branded house wires (Etira, Optima+, Primma, Green Wire+ and Suprema) are listed separately with their sizes and MRPs. Tell us the grade your specification names and we confirm which Polycab wire matches.

Where can I buy the Polycab PVC Building Wire in Chhattisgarh?

From Jai Enterprises, Bhilai and Raipur, which supplies Polycab cables to every district of Chhattisgarh and across India. Call +91 9340081159 for the price, stock and lead time.

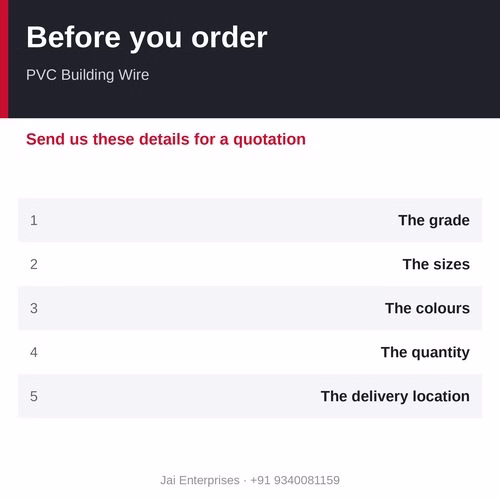

How to order

Price on request: call +91 9340081159 or send an enquiry from this page with the grade, the sizes, the colours, the quantity and the delivery location, and we will confirm the price, availability and lead time. Ask for the Polycab datasheet for your exact construction before you order.
