Polycab Round Submersible Cable – 3 and 4 Core, 1.5 to 120 sq mm, Class 5 Copper, PVC / XLPE Insulated

The Polycab Round Submersible Cable feeds submersible pumps through three or four class 5 flexible copper cores from 1.5 to 120 sq mm, PVC or XLPE insulated, with a PVC or PVC ST2 sheath. It is supplied at a price on request: cable prices depend on the construction, the quantity and the raw-material prices on the day.

Polycab India Limited is India's largest manufacturer of wires and cables, with 27 manufacturing facilities, a network of 4,300+ dealers and distributors, 2,00,000+ retailers and an export presence in 84 countries (polycab.com, October 2026). Its cable range runs from house wires and 1.1 kV power and control cables to MV and EHV power cables, with instrumentation, solar, railway, marine, mining, fire-survival and other special cables. Jai Enterprises supplies Polycab cables from Bhilai and Raipur all over Chhattisgarh - Bhilai, Raipur, Durg, Korba, Bilaspur, Raigarh, Jagdalpur, Kanker, Ambikapur and every other district - and across India.

Is this the right one for you?

Check these four things before you order:

• The cable feeds a submersible pump - borewell, open well, sump or dewatering pump.
• You need a round cable: for example a 4-core cable with an earth core for the pump, larger sizes, or a pump maker that asks for round cable.
• You have sized the cable for the pump current, the depth and the run length (voltage drop).
• The joint between the pump lead and this cable will be a proper submersible (waterproof) joint.

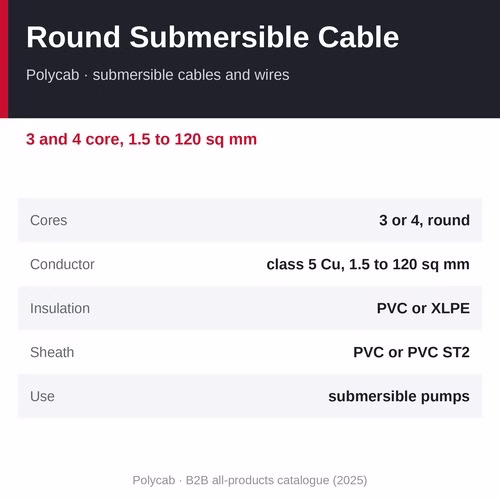

At a glance

• Price: on request - call +91 9340081159
• Product: Polycab Round Submersible Cable
• Type: round submersible pump cable
• Cores: 3 core and 4 core
• Conductor: class 5 (flexible) copper, 1.5 to 120 sq mm
• Insulation: PVC or XLPE
• Sheath: PVC or PVC ST2 (a heat-resisting PVC sheath grade)
• Voltage grade: not printed in the catalogue - confirmed on the datasheet
• Standard: none listed in the catalogue (see the note)
• Flat version: 3 core, 1.5 to 95 sq mm - see the Polycab 3-Core Flat Submersible Cable
• Source: Polycab B2B all-products catalogue (2025), p 24

Construction and standards

• Conductor: class 5 flexible copper, 1.5 to 120 sq mm
• Insulation: PVC or XLPE
• Cores: 3 or 4, laid up round
• Sheath: PVC or PVC ST2
• Note - Standard: the catalogue lists no standard for this entry - we confirm it on the datasheet
• Source: Polycab B2B all-products catalogue (2025), p 24

Why choose the Polycab Round Submersible Cable

• 3 and 4 core round construction, 1.5 to 120 sq mm
• Class 5 flexible copper conductors
• PVC or XLPE insulation
• PVC or PVC ST2 sheath

How to choose and specify it

Round or flat. Flat submersible cables (3 core, up to 95 sq mm) take less space in narrow borewells; round cables come in 3 and 4 core up to 120 sq mm and suit open wells, dewatering pumps, larger pumps and runs where a round cable glands more easily.

Size. Size the cable for the motor full-load current and the total length from the starter to the pump, keeping the voltage drop within the pump maker's limit - long, deep runs often need a larger size than the current alone suggests.

Insulation. XLPE is rated for a higher conductor temperature than PVC, so it carries more current for the same size; PVC is the general-purpose choice. We confirm the rating on the datasheet.

Joint. Crimp the cores with copper in-line connectors suited to class 5 (flexible) conductors, with the matching tool and die, and seal the joint with a kit rated for permanent immersion at the pump depth - never tape or insulated butt connectors alone.

Where it is used

• Borewell and open-well submersible pumps
• Dewatering pumps on construction sites (in mines, follow the mine's cable rules - see the Polycab Mining Cable)
• Sump pumps (for sewage, check the sheath against the effluent with us)
• Agricultural irrigation pumps
• Industrial water supply pumps

Other Polycab submersible cables and wires

• Polycab Round Submersible Cable (this page) - 3 and 4 core, 1.5 to 120 sq mm, price on request
• Polycab Submersible Winding Wire - PVC winding wire, IS 8783, price on request
• Polycab 3-Core Flat Submersible Cable - PVC / XLPE insulated, 1.5 to 95 sq mm, price on request

Related products

• HEX Copper In-Line Connectors & Crimping Sleeves - 1.5 to 1000 sq mm, to crimp the cores inside a submersible joint (ask us to confirm the size for class 5 conductors)
• Raytech Rapid Joint - IPX8 Gel-Filled Straight Joints for 1 kV Cable; 3- and 4-core cable up to 70 sq mm - ask us to confirm it for permanent immersion at your pump depth

Frequently asked questions

What is the price of the Polycab Round Submersible Cable?

The Polycab Round Submersible Cable is supplied at a price on request, because cable prices depend on the construction, the quantity and the raw-material prices on the day. Call +91 9340081159 for a quotation.

Round or flat - which do I need?

Flat cables (3 core, 1.5 to 95 sq mm) suit narrow borewells; round cables (3 and 4 core, 1.5 to 120 sq mm) suit larger pumps and open wells, and the 4-core version gives an earth core for the pump.

Which sizes are available?

3 core and 4 core from 1.5 to 120 sq mm in class 5 flexible copper.

PVC or XLPE insulation?

Both are listed. XLPE is rated for a higher conductor temperature, so it carries more current for the same size; PVC is the general-purpose choice.

Where can I buy the Polycab Round Submersible Cable in Chhattisgarh?

From Jai Enterprises, Bhilai and Raipur, which supplies Polycab cables to every district of Chhattisgarh and across India. Call +91 9340081159 for the price, stock and lead time.

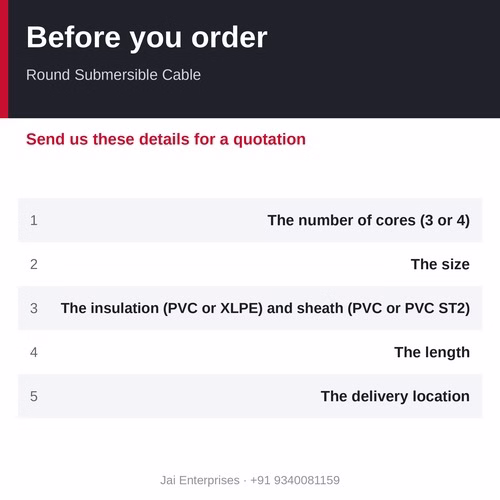

How to order

Price on request: call +91 9340081159 or send an enquiry from this page with the number of cores (3 or 4), the size, the insulation (PVC or XLPE) and sheath (PVC or PVC ST2), the length and the delivery location, and we will confirm the price, availability and lead time. Ask for the Polycab datasheet for your exact construction before you order.
