Polycab Panel Wire – Bunched Copper, PVC Insulated, Unsheathed, for Switchboard and Control Panel Wiring

The Polycab Panel Wire is a plain annealed bunched copper, PVC insulated, unsheathed wire for the internal wiring of switchboards, MCCs, PCCs and control panels. Polycab's catalogue lists it as conforming to BS 6231, IS 694 and IS 17048 (see the note below). It is supplied at a price on request: cable prices depend on the construction, the quantity and the raw-material prices on the day.

Polycab India Limited is India's largest manufacturer of wires and cables, with 27 manufacturing facilities, a network of 4,300+ dealers and distributors, 2,00,000+ retailers and an export presence in 84 countries (polycab.com, October 2026). Its cable range runs from house wires and 1.1 kV power and control cables to MV and EHV power cables, with instrumentation, solar, railway, marine, mining, fire-survival and other special cables. Jai Enterprises supplies Polycab cables from Bhilai and Raipur all over Chhattisgarh - Bhilai, Raipur, Durg, Korba, Bilaspur, Raigarh, Jagdalpur, Kanker, Ambikapur and every other district - and across India.

Is this the right one for you?

Check these four things before you order:

• The wire is for internal wiring of a switchboard, MCC, PCC or control panel.
• You know the standard your panel specification names (BS 6231 or IS 694; IS 17048 if halogen-free).
• You know the sizes and the colour code.
• You know the voltage of the circuits (BS 6231 is 600/1000 V; IS 694 up to 450/750 V).

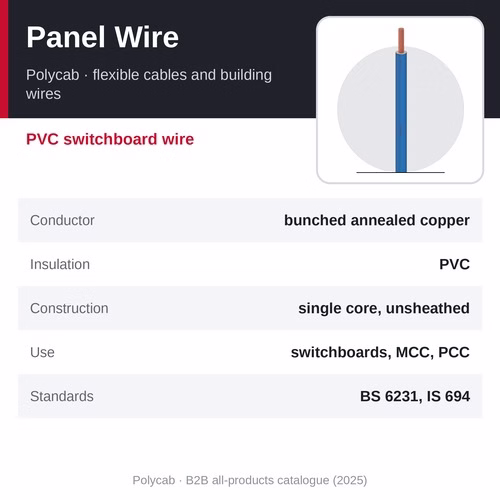

At a glance

• Price: on request - call +91 9340081159
• Product: Polycab Panel Wire
• Type: panel (switchboard) wire
• Conductor: plain annealed bunched copper
• Insulation: PVC
• Construction: single core, unsheathed
• Standards: BS 6231 and IS 694 (PVC); IS 17048 is listed too (see the note below)
• Source: Polycab B2B all-products catalogue (2025), p 28

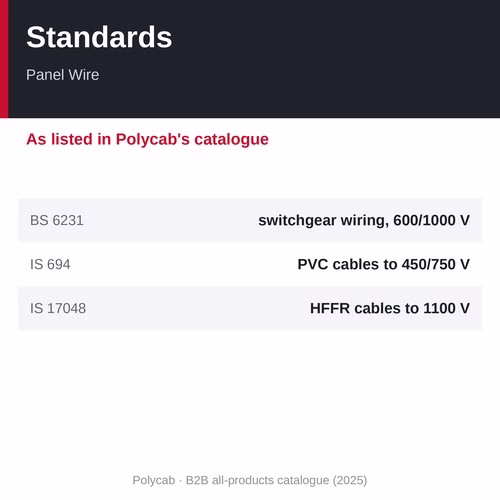

Construction and standards

• Conductor: plain annealed bunched copper
• Insulation: PVC
• Sheath: none (unsheathed)
• BS 6231: single-core PVC insulated flexible cables, 600/1000 V, for switchgear and controlgear wiring
• IS 694: PVC insulated cables and cords up to and including 450/750 V
• IS 17048: halogen-free flame-retardant (HFFR) cables up to and including 1100 V
• Note - Standards: the catalogue lists BS 6231, IS 694:2010 and IS 17048 together; BS 6231 (600/1000 V) and IS 694 (up to 450/750 V) are PVC standards, while IS 17048 is the standard for halogen-free (HFFR) cables - so tell us which standard your panel specification names, and we confirm the matching wire
• Source: Polycab B2B all-products catalogue (2025), p 28

Why choose the Polycab Panel Wire

• Flexible bunched copper - easy to route and dress inside panels
• PVC insulation, in the colours of your wiring code (we confirm availability)
• Made for switchboard and control panel wiring
• Standards for UK-style (BS 6231) and Indian (IS 694) specifications

How to choose and specify it

Standard and voltage. BS 6231 covers single-core PVC switchgear wiring cable at 600/1000 V (types BK 70 °C and CK 90 °C - the catalogue does not say which type Polycab makes, so we confirm it); IS 694 covers PVC cables up to 450/750 V. If your specification asks for halogen-free panel wiring, tell us - IS 17048 is the HFFR standard and needs an HFFR wire.

Sizes and colours. Panel builders usually use 1.5 sq mm for control wiring and 2.5 sq mm for CT circuits, in the colours of their wiring code. Send us the panel wiring schedule.

Terminations. Fit bootlace ferrules or lugs on the flexible conductors with the matching crimp tool.

Where it is used

• MCC, PCC and distribution panel wiring
• Relay and control panels
• PLC and automation panels
• Switchboards and metering panels
• OEM machine panels

Other Polycab flexible cables and building wires

• Polycab Single Core Industrial Flexible Cable - class 5 copper, 0.5 to 630 sq mm, price on request
• Polycab Multicore Industrial Flexible Cable - 2 to 61 cores, class 5 copper, price on request
• Polycab Panel Wire (this page) - PVC switchboard wire, price on request
• Polycab HFFR Wire - halogen-free HFFR-04XZ-K and HFFR-01Z-K / 03XZ-K, price on request
• Polycab PVC Building Wire - FR, FRLSH, HRFR and HR-FRLS grades, price on request
• Polycab Service Wire - aluminium twin flat service cable, price on request
• Polycab Medical Wire - fungus-free HFFR wire, IS 17048, price on request

Related products

• HEX End-Sealing Ferrules (Bootlace) - Non-Insulated, Insulated & Twin, 0.5 to 120 sq mm
• HEX HEXPRESS-20 Ferrule Crimping Plier - Insulated & Non-Insulated End-Sealing Ferrules, 0.5 to 16 sq mm
• HEX HEXPRESS A-6 Hand Crimping Tool - 0.5 to 6 sq mm, for lugs and terminals
• Adels-Contact DS - 12-Pole Screw Terminal Strips with Wire Protector, 2.5 to 16 sq mm, UL/CSA

Frequently asked questions

What is the price of the Polycab Panel Wire?

The Polycab Panel Wire is supplied at a price on request, because cable prices depend on the construction, the quantity and the raw-material prices on the day. Call +91 9340081159 for a quotation.

Which standard does it follow?

The catalogue lists BS 6231, IS 694:2010 and IS 17048. BS 6231 and IS 694 are PVC standards; IS 17048 is for halogen-free wires. Tell us the standard your panel specification names and we confirm the matching wire.

Which sizes are used in panels?

Commonly 1.5 sq mm for control wiring and 2.5 sq mm for CT circuits; follow your panel wiring schedule.

Is a halogen-free panel wire available?

Tell us if your specification asks for halogen-free (HFFR) wiring and we confirm the Polycab HFFR wire for it.

Where can I buy the Polycab Panel Wire in Chhattisgarh?

From Jai Enterprises, Bhilai and Raipur, which supplies Polycab cables to every district of Chhattisgarh and across India. Call +91 9340081159 for the price, stock and lead time.

How to order

Price on request: call +91 9340081159 or send an enquiry from this page with the standard, the sizes, the colours, the quantity and the delivery location, and we will confirm the price, availability and lead time. Ask for the Polycab datasheet for your exact construction before you order.
