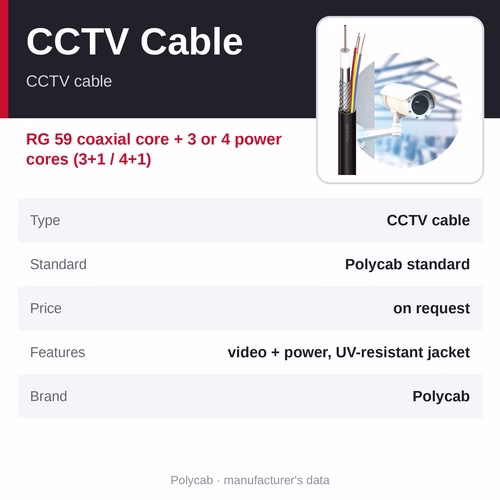

Polycab CCTV Cable – RG 59 Coaxial with 3 or 4 Power Cores (3+1 / 4+1), Jelly Flooded, UV-Resistant PVC

Coaxial cable consisting of a solid annealed bare copper conductor of electrolytic grade, insulated with physical foam PE dielectric, aluminium foil taped, jelly flooded, braided with alloy and then jacketed with UV-resistant PVC. One cable carries both the video and the camera power: an RG 59 coaxial core for the video signal laid up with three or four copper power cores, jelly flooded against moisture and jacketed in UV-resistant PVC for outdoor runs.

Polycab India Limited is India's largest manufacturer of wires and cables, with 27 manufacturing facilities, 4,300+ authorised distributors, 2,00,000+ retailers and an export presence in 84 countries (polycab.com, October 2026). Jai Enterprises supplies the Polycab cable range from Bhilai and Raipur all over Chhattisgarh - Bhilai, Raipur, Durg, Korba, Bilaspur, Raigarh, Jagdalpur, Kanker, Ambikapur and every other district - and across India; price on request.

Is this the right one for you?

Check these three things before you order:

• The cameras are analogue (coaxial video) CCTV cameras that take low-voltage power through the same cable.
• Choose 3+1 for most cameras, 4+1 when a fourth conductor is needed (for example audio or a second power feed).
• Runs may be outdoors - the UV-resistant jacket and jelly flooding are made for that.

At a glance

• Price: Request price
• Product: Polycab CCTV Cable (3+1 and 4+1)
• Type: CCTV cable
• Range: RG 59 F coaxial core (0.82 mm solid bare copper, physically foamed HDPE) laid up with 3 or 4 power cores of 0.5 mm annealed bare copper, HDPE insulated, in (3+1) or (4+1) formation, PVC jacketed
• Standard: Polycab standard

Specifications

• Construction: Coaxial cable consisting of a solid annealed bare copper conductor of electrolytic grade, insulated with physical foam PE dielectric, aluminium foil taped, jelly flooded, braided with alloy and then jacketed with UV-resistant PVC
• Range: RG 59 F coaxial core (0.82 mm solid bare copper, physically foamed HDPE) laid up with 3 or 4 power cores of 0.5 mm annealed bare copper, HDPE insulated, in (3+1) or (4+1) formation, PVC jacketed
• Standard: Polycab standard
• Features: minimal signal distortion or attenuation, designed for the complete video frequency range, ideal for both indoor and outdoor applications, no reflection and best picture quality, alloy braiding for superior performance
• Note: polycab.com: clear video signal transmission, low EMI, better power transmission, low capacitance, low signal loss; for CCTV systems in industries, malls, hospitals, shops, roads and offices

Why choose Polycab CCTV Cable (3+1 and 4+1)

• Video and power in one cable - fewer runs, faster installation
• Minimal signal distortion or attenuation over the full video frequency range
• No reflection, best picture quality - matched RG 59 F coaxial core
• Indoor and outdoor - jelly flooded, UV-resistant PVC jacket
• Alloy braiding for superior shielding

Installation notes

Use BNC connectors on the coaxial core and a DC jack or terminal for the power cores at the camera end.

Check the voltage drop on the power cores for long runs; place the power supply closer to distant cameras if needed.

Run the cable in conduit or on cable tray where it can be damaged.

Where it is used

• Analogue CCTV in shops, offices and homes
• Factory and warehouse surveillance
• Hospitals, malls and schools
• Perimeter and roadside cameras

Other Polycab communication and special cables

• Polycab 3-Core Flat Submersible Cable - 3C flat submersible cable
• Polycab Industrial Telephone (Switchboard) Cable - telephone / switchboard cable
• Polycab Industrial Jelly-Flooded Coaxial Cable - RG 6 / RG 11 / RG 59 coaxial cable
• Polycab CCTV Cable (3+1 and 4+1) - CCTV cable (this page)
• Polycab LAN (Networking) Cable - Cat 6 / Cat 6a / Cat 5e - LAN cable
• Polycab Industrial Speaker Wire (OFC) - speaker wire

Related products

• All Polycab cables
• Communication and data cables
• Polycab Green Wire+ house wire - the matching house wire for the building
• Polycab Suprema E-beam house wire

Frequently asked questions

What is the difference between 3+1 and 4+1?

Both have one RG 59 coaxial core for video; 3+1 adds three 0.5 mm copper power cores and 4+1 adds four.

Can it be used outdoors?

Yes - the jacket is UV-resistant PVC and the cable is jelly flooded, so it suits both indoor and outdoor camera runs.

What is the coaxial core?

RG 59 F: 0.82 mm solid bare copper conductor with physically foamed HDPE insulation, aluminium foil tape and alloy braid.

Does it work with IP cameras?

IP cameras use LAN cable; this cable is for analogue (coaxial video) cameras. See the Polycab LAN cable page for IP systems.

Where can I buy Polycab CCTV Cable (3+1 and 4+1) in Chhattisgarh?

From Jai Enterprises, Bhilai and Raipur, which supplies Polycab wires and cables across Chhattisgarh - Korba, Bilaspur, Raigarh, Jagdalpur, Kanker, Ambikapur and every other district - and across India. Call +91 9340081159 with the size, quantity and delivery location and we will confirm the price, availability and lead time.

How to order

Supplied by Jai Enterprises, Bhilai and Raipur, to every district of Chhattisgarh and across India. To request a price for Polycab CCTV Cable (3+1 and 4+1), call +91 9340081159 or send an enquiry from this page with the size or type, length and delivery location, and we will confirm availability, lead time and the delivered cost.
